Summary of Contents for Allied Telesis AT-8324SX
-
Page 1: Fast Ethernet

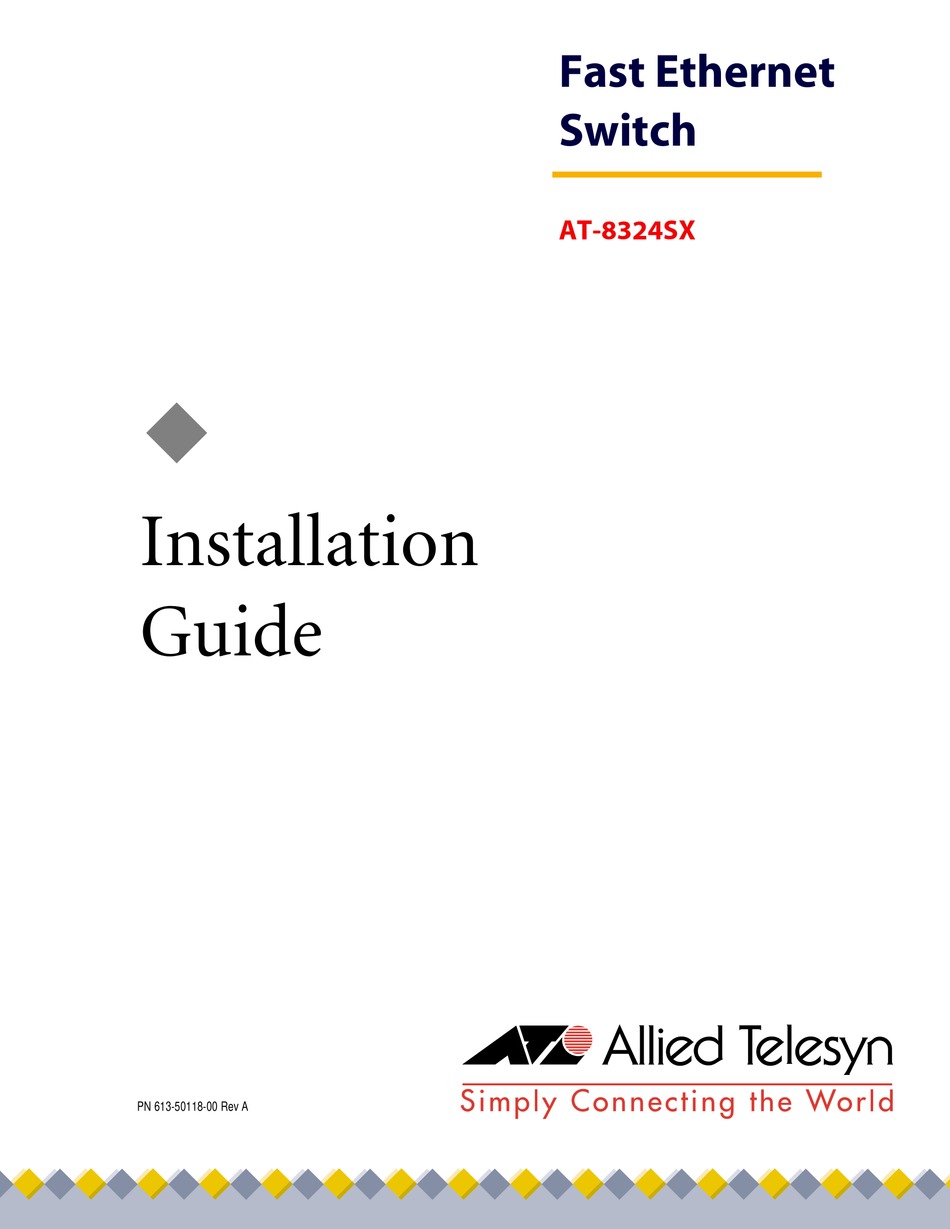

Fast Ethernet Switch ® AT-8324SX Installation Guide PN 613-50118-00 Rev A... - Page 2 Copyright 2000 Allied Telesyn International, Corp. 960 Stewart Drive Suite B, Sunnyvale, CA 94086 USA All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn International, Corp. CentreCom is a registered trademark of Allied Telesyn International, Corp. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.
- Page 3 Electrical Safety and Emission Statement Standards: This product meets the following standards. U.S. Federal Communications Commission RADIATED ENERGY Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules.
-
Page 5: Table Of Contents
................................xv Tell Us What You Think ....................................xvi Chapter 1 Overview ..........................................17 About the AT-8324SX Switch ..................................18 Switch Architecture ....................................19 Management Options ................................... 19 How to Use this Guide .......................... - Page 6 Table of Contents Chapter 2 Network Planning ......................................29 Sample Topologies ......................................30 Collapsed Backbone ....................................30 Central Wiring Closet .................................... 31 Remote Connections with Fiber Cable ............................32 Making VLAN Connections ..........................
- Page 7 AT-8324SX Installation Guide Appendix B Specifications ........................................61 AT-8324SX Fast Ethernet Switch ................................61 Physical Characteristics ..................................61 Switch Features ......................................63 MIB Support ........................................ 63 RMON Support ......................................63 Additional Features ..........................
-
Page 9: Preface
Preface This guide contains installation instructions for the AT-8324SX Fast Ethernet Switch. Purpose of This Guide This guide is intended for network administrators who are responsible for installing and managing the switches. Network administrators should be familiar with Ethernet switches, Ethernet and Fast Ethernet technology, bridging, and the Spanning Tree Protocol (STP). -
Page 10: Where To Find Web-Based Guides
Preface Where to Find Web-based Guides The Allied Telesyn web site at www.alliedtelesyn.com offers you an easy way to access the most recent documentation and technical information for all of our products. All web-based documentation for this product and other Allied Telesyn products can be downloaded from the web site in pdf format. -
Page 11: Document Conventions
AT-8324SX Installation Guide Document Conventions This guide uses several conventions that you should become familiar with first before you begin to install the product. Note Notes provide additional information. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury. -
Page 12: Contacting Allied Telesyn Technical Support
Preface Contacting Allied Telesyn Technical Support There are several ways that you can contact Allied Telesyn technical support: online, telephone, fax, and e-mail. Online Support You can request technical support online by filling out the Tech-Assistant Form at www.alliedtelesyn.com/support.htm. Telephone and Fax Support Americas Germany... -
Page 13: Returning Products
AT-8324SX Installation Guide Returning Products Products for return or repair must first be assigned a Return Materials Authorization (RMA) number. A product sent to Allied Telesyn without a RMA number will be returned to the sender at the sender’s expense. -
Page 14: Ftp Server
Preface FTP Server If you need a driver for an Allied Telesyn device and you know the name of the driver, you can download the software by connecting directly to our FTP server at ftp://gateway.centre.com. At login, enter “anonymous”. Enter your e-mail address for the password as requested by the server at login. -
Page 15: For Sales Or Corporate Information
AT-8324SX Installation Guide For Sales or Corporate Information Allied Telesyn International, Corp. Allied Telesyn International, Corp. 19800 North Creek Parkway, Suite 200 960 Stewart Drive, Suite B Bothell, WA 98011 Sunnyvale, CA 94086 Tel: 1 (425) 487-8880 Tel: 1 (800) 424-4284 (USA and Canada) -
Page 16: Tell Us What You Think
Preface Tell Us What You Think If you have any comments or suggestions on how we might improve this or other Allied Telesyn documents, please fill out the Feedback on Documentation form at www.alliedtelesyn.com/forms/feedbackman.htm. -
Page 17: Chapter 1 Overview
Chapter 1 Overview The AT-8324SX Fast Ethernet Switch is a stackable switch with 24 10Base-T/100Base-TX ports, plus two slots for optional 100Base-FX, 1000Base-SX, and 1000Base-LX expansion modules. One of these slots can also be used for the optional AT-BSTACK1 Stacking Module that allows you attach up to four switches to a 4 Gbps high-speed backplane. -
Page 18: About The At-8324Sx Switch
System Module Indicators Indicators Mode Selection Port Status Indicators 10/100 Mbps RJ-45 Ports Figure 1 AT-8324SX Front Panel Figure 2 illustrates the rear panel. Expansion Slot for AT-BMGMT Power Socket Management Module Expansion Slot for Media Redundant Power Expansion Slot for... -
Page 19: Switch Architecture
This switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection. This AT-8324SX switch can be used in a standalone configuration, or can be stacked up to four high to form a single logical switch with up to 104 ports. -
Page 20: How To Use This Guide
Overview How to Use this Guide Read Chapters 1 through 4 before installing the AT-8324SX switch. You can also read the AT-S29 Software Management User’s Guide to learn how to manage your network. This guide is available from the Allied... -
Page 21: Description Of Hardware
AT-8324SX Installation Guide Description of Hardware 10Base-T/ These ports are dual-speed RJ-45 ports with built-in wiring crossovers 100Base-TX Ports (MDI-X). Workstations and servers can be connected to these ports with straight-through cable. When connecting to another switch or a hub,... -
Page 22: Network Management Module
Overview Table 1 Port and System Status LEDs (Continued) Condition Status Mode Select FLOW The port Mode LEDs are indicating the status of flow control for each port. The port Mode LEDs are indicating the duplex mode of each port. The port Mode LEDs are indicating the status of traffic on each port. - Page 23 Web interface, Telnet, or SNMP network management software. VLANs The AT-8324SX switch supports up to 16 VLANs. A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network.
-
Page 24: Optional Expansion Modules
Overview Traffic Priority The switch provides Quality of Service (QoS) by prioritizing each packet based on the required level of service, using two distinct categories with Weighted Fair Queuing. It uses IEEE 802.1Q and 802.1p tags to prioritize incomming traffic based on input from the end-station application driver. -
Page 25: Optional At-Bstack1 Stacking Module
AT-8324SX Installation Guide AT-B17 Expansion Module Using multimode fiber optic cable, the AT-B17 Expansion Module with its 100Base-FX port and an SC connector can be connected to a remote site up to 2 kilometers (1.24 miles) away in full-duplex mode or up to 412 meters (1,351 feet) in half-duplex mode. -
Page 26: Features And Benefits
Overview Features and Benefits Connectivity # 24 dual-speed ports for easy Fast Ethernet integration and for protection of your investment in legacy LAN equipment # Auto-negotiation enables each RJ-45 port to automatically select the optimum communication mode (half- or full-duplex and 10 or 100 Mbps) if this feature is supported by the attached device;... -
Page 27: Management
AT-8324SX Installation Guide — AT-B17 Expansion Module with an 100Base-FX fiber module port and an SC connector that can connect to a remote site up to 2 kilometers/1.24 miles away (at full-duplex), and operate at half- or full- duplex (via manual configuration) —... -
Page 29: Chapter 2 Network Planning
Chapter 2 Network Planning An Ethernet or Fast Ethernet switch allows simultaneous transmission of multiple packets via non-crossbar switching. This means that it can partition a network more efficiently than bridges or routers. The switch has, therefore, been recognized as one of the most important building blocks for today’s networking technology. -
Page 30: Sample Topologies
Some typical topologies are described below. Collapsed The AT-8324SX switch is an excellent choice for mixed Ethernet and Fast Backbone Ethernet installations where significant growth is expected in the near future. -
Page 31: Central Wiring Closet
With up to 100 ports in a stack (i.e., 100 distinct segments), the Closet AT-8324SX switch can collapse a complex network down into a single efficient bridged node, increasing overall bandwidth and throughput. In the figure below, the 10Base-T/100Base-TX ports on the AT-8324SX stack are providing 100 Mbps connectivity for up to 100 segments through Ethernet hubs. -
Page 32: Remote Connections With Fiber Cable
Fiber optic technology allows for longer cabling than any other media Connections with type (up to 2 kilometers/1.24 miles for 100 Mbps fiber at full-duplex). The AT-8324SX switch can serve as a collapsed backbone, providing direct Fiber Cable connectivity for a widespread LAN. The 100 Mbps fiber module can be used to interconnect remote Fast Ethernet segments, while the Gigabit fiber module can be used to interconnect buildings in a campus setting. -
Page 33: Making Vlan Connections
VLAN. When VLANs cross separate switches, it is therefore better to use VLAN tagging. This allows you to assign multiple VLAN groups to the trunk ports (that is, tagged ports) connecting different switches. AT-8324SX Fast Ethernet Switch 10BASE-T / 100BASE-TX SWITCH FAST ETHERNET... -
Page 34: Connectivity Rules
Network Planning Connectivity Rules When adding hubs (repeaters) to your network, please follow the connectivity rules listed below for Ethernet and Fast Ethernet. However, note that because switches break up the path for connected devices into separate collision domains, you should not include the switch or connected cabling in your calculations for cascade length involving other devices. -
Page 35: 10/100 Mbps Fast Ethernet
AT-8324SX Installation Guide The AT-B15/LX has one 1000Base-LX fiber optic port with a SC connector. This module operates at 1 Gbps and supports auto- negotiation for duplex mode (half- or full-duplex) and flow control. Refer to Table 3 for the cabling specifications for this module. -
Page 36: Application Notes
# For network applications that actually require routing (such as when interconnecting dissimilar network types or distinct VLANs), you may have to attach the AT-8324SX switches directly to a router or Layer 3 switch. -
Page 37: Installing The Stack
Chapter 3 Installing the Stack This chapter contains instructions on how to install the AT-8324SX switch. Selecting a Site AT-8324SX switches can be mounted in a standard 19-inch equipment rack or on a flat surface. Be sure to follow the guidelines below when choosing a location. -
Page 38: Reviewing Safety Precautions
Installing the Stack Reviewing Safety Precautions Review the following safety precautions before you begin to install the switch. Refer to Appendix C for translated safety statements in your language. The first two safety precautions apply only if you install an expansion module in the switch. -
Page 39: Equipment Checklist
AT-8324SX Installation Guide Equipment Checklist After unpacking the AT-8324SX switch, check the contents to be sure you have received all the components. Then, before beginning the installation, be sure you have all other necessary installation equipment. Package Contents # One AT-8324SX Fast Ethernet Switch... -
Page 40: Mounting
Installing the Stack Mounting An AT-8324SX switch can be mounted in a standard 19-inch equipment rack or on a desktop or shelf. Mounting instructions for each type of site follow. Note If you have purchased an expansion module or a stacking module for the switch, install the module now by following the instructions included with the optional package. - Page 41 AT-8324SX Installation Guide 2. Mount the device in the rack, using four rack-mounting screws (not provided). Figure 12 Installing the Switch in a Rack 3. If installing a single switch only, refer to Connecting to a Power Source on page 44.
-
Page 42: Desktop Or Shelf Mounting
Installing the Stack Desktop or Shelf To rack mount devices, perform the following procedure: Mounting 1. Attach the four adhesive feet to the bottom of the first switch. Figure 13 Attaching the Adhesive Feet 2. Set the device on a flat surface near an AC power source, making sure there are at least 5 centimeters (2 inches) of space on all sides for proper air flow. -
Page 43: Stacking
Note A stacking cable is included with the AT-BSTACK1 Stacking Module. Caution Do Not stack AT-8324SX switches with other devices. Doing so may damage the switch. To stack the devices, perform the following procedure: 1. Locate the stack connectors labeled "UP" and "DOWN" on the stack modules (see Figure 14). -
Page 44: Connecting To A Power Source
Installing the Stack Connecting to a Power Source Note It is recommended that the switches be stacked before being connected to a power source. However, a device can be added to the top or bottom of a stack that is ON and operating without first powering down the stack. -
Page 45: Making Network Connections
Chapter 4 Making Network Connections The AT-8324SX switch is designed to interconnect multiple segments, or collision domains. It may be connected to 10 and 100 Mbps network cards in PCs and servers, as well as to Ethernet and Fast Ethernet hubs, switches or routers. -
Page 46: Connecting To Pcs, Servers, Hubs And Switches
Switches Figure 16 Making Twisted Pair Connections 2. If the device is a network card and the AT-8324SX switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet (see Wiring Closet Connections on page 47). -
Page 47: Wiring Closet Connections
Make sure each twisted pair cable does not exceed 100 meters (328 feet) in length. 3. As each connection is made, the Link LED (on the AT-8324SX switch) corresponding to each port will be green to indicate that the connection is valid. -
Page 48: At-B15/Sx And At-B15/Lx (1000Base, Sx And Lx) Expansion Modules
Making Network Connections AT-B15/SX and AT-B15/LX (1000Base, SX and LX) Expansion Modules If an AT-B15/SX or AT-B15/LX Expansion Module is present, its Gigabit port may be used for a backbone connection between switches or for connecting a high-speed server. Each 1000Base-SX device requires 50/125 or 62.5/125 micron multimode fiber optic cabling with an SC connector at both ends. -
Page 49: At-B17 (100Base-Fx) Expansion Module
AT-8324SX Installation Guide AT-B17 (100Base-FX) Expansion Module If an AT-B17 Expansion Module is present, its fiber ports may be used for backbone and longer distance connections. This expansion module requires 50/125 or 62.5/125 micron multimode fiber optic cabling with an SC connector at both ends. For SC fiber ports, connect one end of the cable to the SC connector on the expansion module and the other end to the SC connector on the other device. -
Page 51: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting This chapter contains troubleshooting information. Diagnosing Switch Indicators Table 6 Troubleshooting Chart Symptom Action Power LED is OFF - Internal or redundant power supply has failed or is disconnected. - Check connectors between the switch, the power cord, the wall outlet, and the RPU, if you are using one. -
Page 52: Power And Cooling Problems
Troubleshooting Power and Cooling Problems If the Power LED does not turn ON when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply as explained in the previous section. However, if the unit powers OFF after running for a while, check for loose power connections, power losses or surges at the power outlet, and verify that the fans on the right side of the unit are unobstructed and running prior... -
Page 53: Installation
AT-8324SX Installation Guide Installation Verify that all system components have been properly installed. If one or more components appear to be malfunctioning (such as the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly. -
Page 54: In-Band Access
Troubleshooting In-Band Access You can access the management agent on the switch from anywhere within the attached network using Telnet, a Web browser, or other network mangement software. However, you must first configure the switch with a valid IP address, subnet mask, and default gateway. If you have trouble establishing a link to the management agent, check to see if you have a valid network connection. -
Page 55: Appendix A Cables
Appendix A Cables Specifications Table 7 100Base-TX Twisted Pair Cable Cable Type Category Connector 100 Ohm UTP, 22 - 26 AWG 5 certified male, 8-pin RJ-45 0.4 - 0.6 mm, 2 pairs Table 8 10Base-T Twisted Pair Cable Cable Type Category Connector 100 Ohm UTP, 22 - 26 AWG... -
Page 56: Twisted-Pair Cable And Pin Assignments
Cables Twisted Pair Cable and Pin Assignments Caution Do not plug a phone jack connector into any RJ-45 port. Use only twisted pair cables with RJ-45 connectors that conform with FCC standards. For 10Base-T/100Base-TX connections, a twisted pair cable must have two pairs of wires. -
Page 57: Crossover Wiring
AT-8324SL Installation Guide Straight-Through Wiring If the twisted pair cable is to join two ports and only one of the ports has an internal crossover, the two pairs of wires must be straight-through. Table 12 Straight-Through RJ-45 Pin Assignments End 1 End 2 1 (Tx+) 1 (Tx+) -
Page 58: Console Port Pin Assignments
Cables Console Port Pin Assignments The DB-9 serial port on the panel of the network management module is used to connect the switch to a management device. The on-board menu-driven configuration program can be accessed from a terminal, a PC running a terminal emulation program, or from a remote location via a modem connection. -
Page 59: Console Port To 9-Pin Com Port On Pc
AT-8324SL Installation Guide Console Port to 9-Pin COM Port Table 15 Console Port to 9-Pin COM Port on PC on PC Switch’s 9-Pin Serial CCITT Signal PC’s 9-Pin COM Port Port 1 DCD ----- DCD ----- 2 RXD <----- TXD ----- 3 TXD ----- RXD ----->... -
Page 60: Console Port To 25-Pin Dte Port On Pc
Cables Console Port to 25-Pin DTE Port Table 17 Console Port to 9-Pin COM Port on PC on PC Switch’s 9-Pin Serial Null Modem PC’s 25-Pin DCE Port Port 1 DCD 8 DCD 2 RXD 3 TXD 3 TXD 2 RXD 4 DTR 20 DTR 5 SGND... -
Page 61: Appendix B Specifications
Appendix B Specifications AT-8324SX Fast Ethernet Switch Physical Ports Characteristics # 24 10Base-T/100Base-TX, with auto-negotiation # One slot for the optional AT-BMGMT Management Module # Two expansion slots for optional media expansion modules or an optional stacking module Network Interface # 10Base-T: RJ-45 (100 ohm, UTP cable;... - Page 62 Specifications Switching Database # 12K MAC address entries LEDs # System: Power, RPS, MGMT # Port: Mode (flow control, full-duplex, activity) # Port: Link (speed, link, disable/partition) Weight # 4.82 kg (10.63 lbs) Size # 44.0 x 28.5 x 6.4 centimeters (17.37 x 11.22 x 2.53 inches) Temperature # Operating: 0 to 50°...
-
Page 63: Switch Features
AT-8324SL Installation Guide Switch Features # Spanning Tree Protocol # Forwarding Mode # Store-and-forward # Flow Control # Full-duplex: IEEE 802.3x # Half-duplex: Back pressure # VLAN Support # Up to 16 groups; port-based or with 802.1Q VLAN tagging, # GVRP for automatic VLAN learning # Quality of Service # Supports two levels of priority and Weighted Fair Queueing # Broadcast Storm Control... -
Page 64: Standards
Specifications Standards # IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, # IEEE 802.1D Spanning Tree Protocol and traffic priorities, # IEEE 802.1p priority tags, IEEE 802.1Q VLAN, # IEEE 802.3ac VLAN tagging, # IEEE 802.3x full-duplex flow control, ISO/IEC 8802-3 # SNMP (RFC 1157), RMON (RFC 1757), ARP (RFC 826), IGMP (RFC 1112), MIB II (RFC 1213), Ethernet-Like MIB (RFC 1643),Bridge MIB (RFC 1493) -
Page 65: Translated Electrical Safety And Emission Information
Appendix C Translated Electrical Safety and Emission Information Important: This appendix contains multiple-language translations for the safety statements in this guide. Wichtig: Dieser Anhang enthält Übersetzungen der in diesem Handbuch enthaltenen Sicherheitshinweise in mehreren Sprachen. Vigtigt: Dette tillæg indeholder oversættelser i flere sprog af sikkerhedsadvarslerne i denne håndbog. - Page 66 Translated Electrical Safety and Emission Information Standards: This product meets the following safety standards. U.S. Federal Communications Commission RADIATED ENERGY Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 67 AT-8324SX Installation Guide " 9 CAUTION: POWER CORD IS USED AS A DISCONNECTION DEVICE. TO DE-ENERGIZE EQUIPMENT, disconnect the power cord. " 10 ELECTRICAL - TYPE CLASS 1 EQUIPMENT THIS EQUIPMENT MUST BE EARTHED. Power plug must be connected to a properly wired earth ground socket outlet.
- Page 68 Translated Electrical Safety and Emission Information " 10 GERÄTE DER KLASSE 1 DIESE GERÄTE MÜSSEN GEERDET SEIN. Der Netzstecker darf nur mit einer vorschriftsmäßig geerdeten Steckdose verbunden werden. Ein unvorschriftsmäßiger Anschluß kann die Metallteile des Gehauses unter gefährliche elektrische Spannungen setzen. "...
- Page 69 AT-8324SX Installation Guide " 10 ELEKTRISK - KLASSE 1-UDSTYR DETTE UDSTYR KRÆVER JORDFORBINDELSE. Stikket skal være forbundet med en korrekt installeret jordforbunden stikkontakt. En ukorrekt installeret stikkontakt kan sætte livsfarlig spænding til tilgængelige metaldele. " 11 UDSTYR TIL STIKKONTAKT, stikkontakten bør installeres nær ved udstyret og skal være lettilgængelig.
- Page 70 Translated Electrical Safety and Emission Information " 10 ELEKTRISCHE TOESTELLEN VAN KLASSE 1 DIT TOESTEL MOET GEAARD WORDEN. De stekker moet aangesloten zijn op een juist geaarde contactdoos. Een onjuist geaarde contactdoos kan de metalen onderdelen waarmee de gebruiker eventueel in aanraking komt onder gevaarlijke spanning stellen.
- Page 71 AT-8324SX Installation Guide " 10 ÉQUIPEMENT DE CLASSE 1 ÉLECTRIQUE CE MATÉRIEL DOIT ÊTRE MIS A LA TERRE. La prise de courant doit être branchée dans une prise femelle correctement mise à la terre car des tensions dangereuses risqueraient d’atteindre les pièces métalliques accessibles à l’utilisateur.
- Page 72 Translated Electrical Safety and Emission Information " 10 SÄHKÖ - TYYPPILUOKAN 1 LAITTEET TÄMÄ LAITE TÄYTYY MAADOITTAA. Pistoke täytyy liittää kunnollisesti maadoitettuun pistorasiaan. Virheellisesti johdotettu pistorasia voi altistaa metalliosat vaarallisille jännitteille. " 11 PISTORASIAAN KYTKETTÄVÄ LAITE; pistorasia on asennettava laitteen lähelle ja siihen on oltava esteetön pääsy."...
- Page 73 AT-8324SX Installation Guide " 10 ELETTRICITÀ - DISPOSITIVI DI CLASSE 1 QUESTO DISPOSITIVO DEVE AVERE LA MESSA A TERRA. La spina deve essere inserita in una presa di corrente specificamente dotata di messa a terra. Una presa non cablata in maniera corretta rischia di scaricare una tensione pericolosa su parti metalliche accessibili.
- Page 74 Translated Electrical Safety and Emission Information " 10 ELEKTRISK - TYPE 1- KLASSE UTSTYR DETTE UTSTYRET MÅ JORDES. Strømkontakten må være tilkoplet en korrekt jordet kontakt. En kontakt som ikke er korrekt jordet kan føre til farlig spenninger i lett t ilgjengelige metalldeler.
- Page 75 AT-8324SX Installation Guide " 10 ELÉTRICO - EQUIPAMENTOS DO TIPO CLASSE 1 DEVE SER FEITA LIGAÇÃO DE FIO TERRA PARA ESTE EQUIPAMENTO. O plugue de alimentação deve ser conectado a uma tomada com adequada ligação de fio terra. Tomadas sem adequada ligação de fio terra podem transmitir voltagens perigosas a peças metálicas expostas.
- Page 76 Translated Electrical Safety and Emission Information " 10 ELECTRICO - EQUIPO DEL TIPO CLASE 1 ESTE EQUIPO TIENE QUE TENER CONEXION A TIERRA. El cable tiene que conectarse a un enchufe a tierra debidamente instalado. Un enchufe que no está correctamente instalado podría ocasionar tensiones peligrosas en las partes metálicas que están expuestas.
- Page 77 AT-8324SX Installation Guide " 10 ELEKTRISKT - TYP KLASS 1 UTRUSTNING DENNA UTRUSTNING MÅSTE VARA JORDAD. Nätkabeln måste vara ansluten till ett ordentligt jordat uttag. Ett felaktigt uttag kan göra att närliggande metalldelar utsätts för högspänning. Apparaten skall anslutas till jordat uttag, när den ansluts till ett nätverk.
- Page 79 AT-8324SX Installation Guide...
-
Page 80: Index
Index AT-B15/LX 24, 35, 48 performance 26 AT-B15/SX 24, 34, 48 pin assignments 56 AT-B17 25, 49 power supply 25 AT-B17 Expansion Module, 25 purpose, this guide, ix AT-BRPS8000 25 AT-BSTACK1 25 quality of service (QoS) 24 audience, this guide, ix auto-negotiation 26 rack mounting 40 cabling 45...
