Using the VESA mounting bracket

The optional mounting bracket conforms to the VESA mounting standard and
so can be used to mount an Infinity unit directly to the rear of most video display
units. The bracket can also be fixed directly to a wall or other solid surface using
appropriate screws or bolts.
To fit the mounting bracket and Infinity unit
1 Orientate the bracket against the rear of the video display so that its small
folded-in tabs are lowermost.
2 Attach the bracket to the video display using four screws of a size
appropriate to the threaded holes within the video display panel - do
not overtighten.
3 Place the Infinity unit into the bracket with its
base facing towards the video
display and the front panel of the
Infinity unit facing upwards.
4 Secure the Infinity unit to the
bracket using the four supplied
screws - do not overtighten.

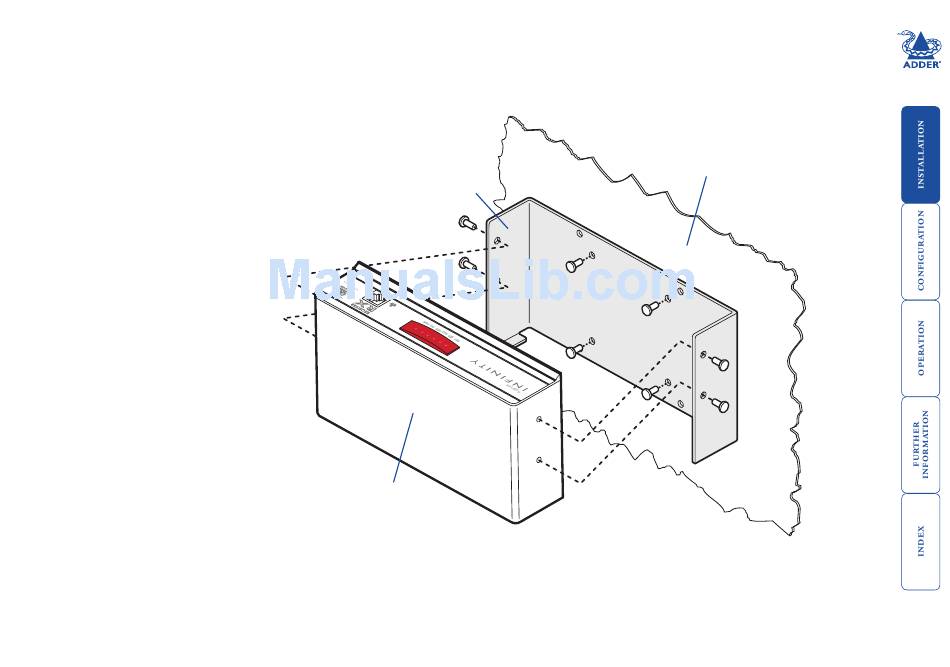

VESA
mounting
bracket
Infinity unit
Rear panel of video display
