Stereo Sync Output Port

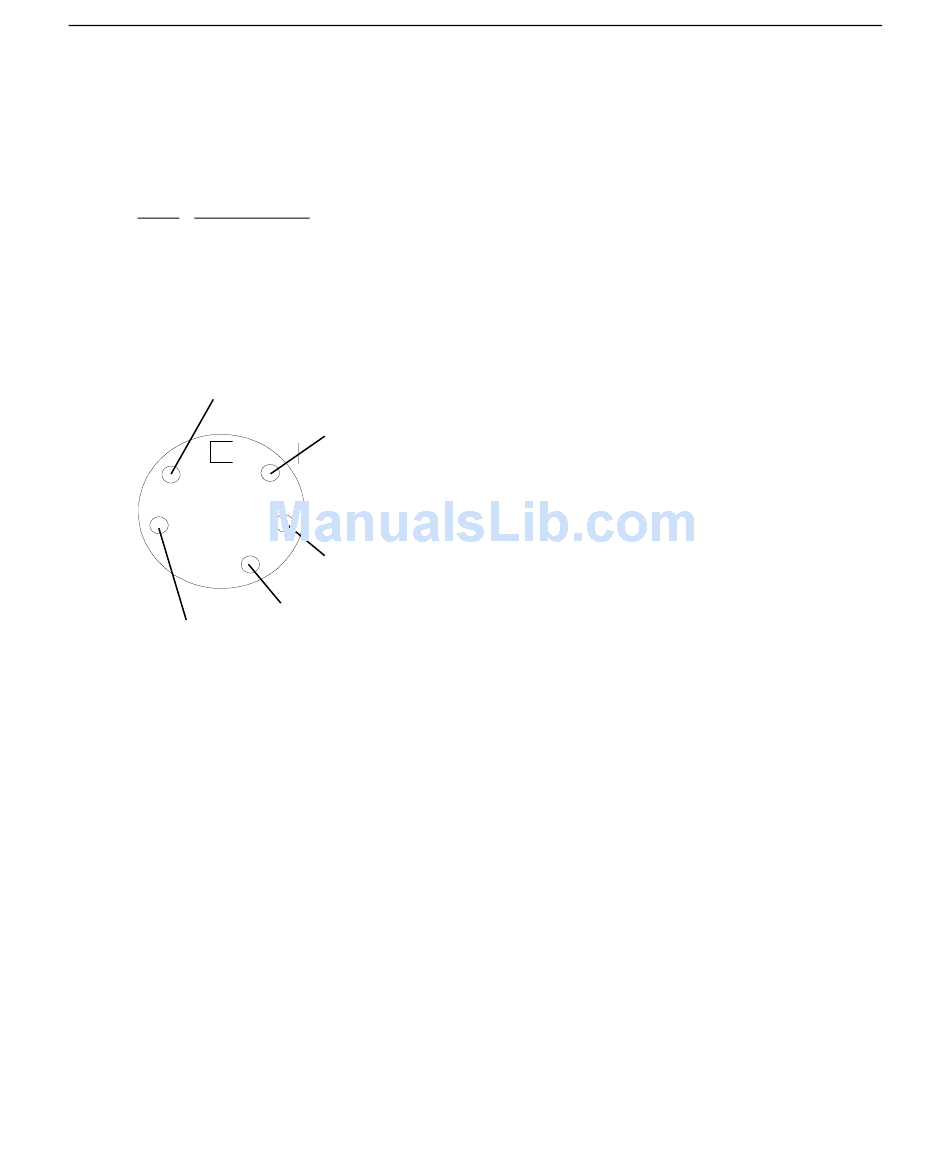

The stereo sync output port is a female, 5-pin, mini-DIN connector. The port provides connection
to the emitter module of a pair of LCD shutter glasses or to other stereo shutter devices.
Pin Signal Name
1 Ground
2 Ground
3 +12V
4 Stereo Sync
5 No Connect
5
x
3
4
2
1
