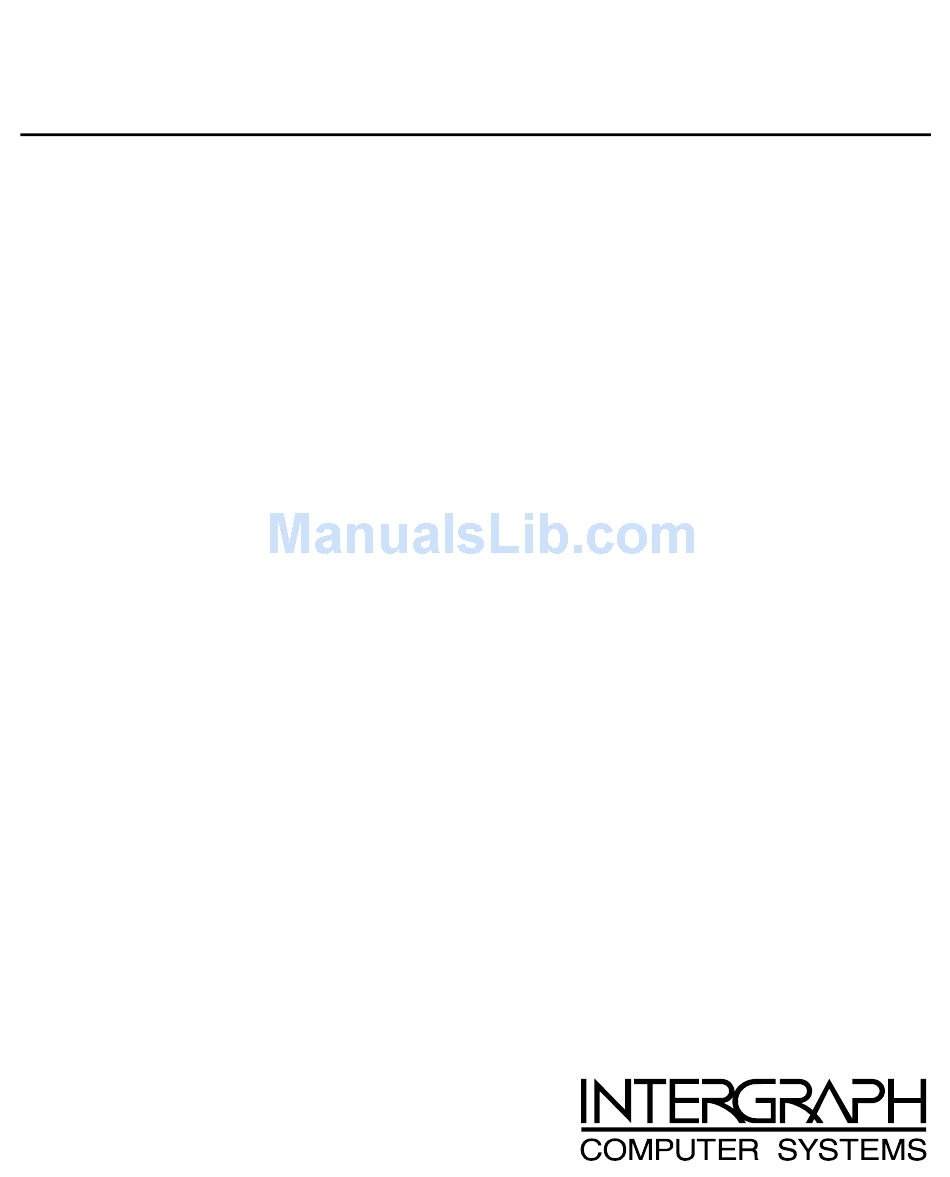

- Page 1 Rack-Mount ViZual Workstation System Reference October 1999 D1AA00180...
- Page 2 This document may not, in whole or in part, be reproduced in any form or by any means, or be used to make any derivative work, without written consent from Intergraph Computer Systems. Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subdivision (c)(1)(ii) of the rights in technical data and computer software clause at DFARS 252.227-7013.
- Page 3 Safety Notices This is a user-serviceable system. However, there are no user-serviceable parts in the power supply. Please return the power supply to the manufacturer for repair. Service and upgrade tasks should be performed by users who can follow instructions in a manual to service equipment, and can do so without harm to themselves or damage to the equipment.
-
Page 5: Table Of Contents
Ergonomic Information........................viii Customer Support .......................... viii Hardware and Software Support Services ............... viii World Wide Web ......................ix Intergraph Bulletin Board Service..................ix Telephone.......................... ix More Support Options......................x 1 Gaining Access to System Components..................1 Before You Begin..........................1 Avoiding Electrostatic Discharge ..................... - Page 6 Floppy Disk Drive ......................22 Disk Drives in the Disk Drive Bay ................... 23 Disk Drive Bay ..........................24 SAF-TE Card..........................26 Power Supply..........................27 Processor Modules.......................... 28 Processor Retention Modules ......................29 Dual Inline Memory Modules......................29 System Board..........................31 Expansion Cards ..........................
-
Page 7: Preface
Preface This System Reference document describes how to service and upgrade your Intergraph Computer Systems Zx Rack-Mount ViZual Workstation. About This Document This System Reference document is organized as follows: Chapter 1, “Gaining Access to System Components,” describes how to open and close the base unit and how to gain access to internal system components. -
Page 8: Operating System Information
Intergraph Computer Systems offers an assortment of customer support options. Hardware and Software Support Services Intergraph Computer Systems provides a variety of hardware services for Intergraph and third-party equipment. Services include warranty upgrades, repair depot service, on-site hardware maintenance, system administration, and network consulting. Hardware purchased from Intergraph Computer Systems includes a factory warranty ranging from 30 days to three years. -
Page 9: World Wide Web
This includes World Wide Web access, Intergraph Bulletin Board Service access, and telephone (Help Desk) support. At the end of the complimentary support period, you can purchase other levels of software support. -
Page 10: More Support Options
Have the following information available when you call: Your service number, which identifies your site to Intergraph Computer Systems. You use your service number for warranty or maintenance calls. Your Customer Personal Identification Number (CPIN). You get a CPIN the first time you call the Customer Response Center;... -
Page 11: Gaining Access To System Components
Gaining Access to System Components This chapter describes how to gain access to major internal components so you can upgrade and service your Zx rack-mount workstation. WARNING This is a user-serviceable system. Service and upgrade tasks should be performed by users who can follow instructions in a manual to service equipment, and can do so without harm to themselves or damage to the equipment. -
Page 12: Opening The Base Unit
Opening the Base Unit WARNING The system is always on when connected to AC power. Before opening the system, disconnect the system’s power cord from its AC power outlet. WARNING Replace the cover before operating the system. This ensures proper airflow for cooling and reduces electromagnetic interference (EMI) emissions. -
Page 13: Closing The Base Unit
Face Panel Thumb Screw (one on each side) To close the face panel: Lift the face panel upward and push it onto the base unit. Secure the face panel to the base unit by tightening the two thumb screws. Close the disk drive bay door. Closing the Base Unit WARNING The system is always on when connected to AC power. -
Page 14: System Components
System Components The following figures show the system’s major components. This front, right view shows the system with all covers in place . Top Cover Disk Drive Bay Door Lock Face Panel Disk Drive Bay CD-ROM Drive System LEDs and Power/Reset Switches Floppy Disk Drive... - Page 15 This back, right view shows major internal components of the system without cables, system board, and option cards. Peripheral Device Bay Face Panel Chassis Fan/ Mounting Plate Power Supply Disk Drive Bay Disk Drive Bay Fans Input/Output Panel Expansion Slots...
-
Page 17: Upgrading The System
CAUTION System memory modules from Intergraph Computer Systems are certified for use with Intergraph computers at extremes of temperatures and system load to ensure reliable performance. System memory modules available from other vendors may not function properly or reliably in your Intergraph computer. -
Page 18: Upgrading Processors
Follow these population rules to correctly install DIMMs: Install DIMMs one bank at a time. Begin with bank 0 (nearest to the processor) or the first open bank, and end with bank 3. The following tables show possible memory configurations. Each bank contains one socket. Memory size Configuration (ECC) 128 MB... -
Page 19: Adding Expansion Cards
Adding Expansion Cards You can install Accelerated Graphics Port (AGP), Peripheral Component Interconnect (PCI), non- compliant PCI, Industry Standard Architecture (ISA), and Plug-n-Play (PnP) expansion cards in the system. See below for a general description of these types of cards. AGP cards are graphics controllers that use the dedicated AGP interface for graphics acceleration. -
Page 20: Slot Locations
Slot Locations The system board has seven expansion card slots, located at the lower-left corner of the system board. Slot 6 is a shared slot; you can install a PCI card or an ISA card in this slot, but not both. Slot 1 - AGP Slot 2 - PCI Slot 3 - PCI... -
Page 21: Assigning System Resources
Install the retaining screw. Attach any required cables to the internal or external connectors. Assigning System Resources Some expansion cards include a configuration diskette that you can use to reserve the system resources required for the card. Other expansion cards do not include a diskette, but require that you manually program the BIOS with the configuration information. - Page 22 Remember the following when installing an optional peripheral device: If you are installing a SCSI peripheral device, have the vendor’s documentation available to follow instructions for setting the SCSI ID, enabling or disabling termination, installing device drivers when required, and configuring other drive attributes. Adding an internal SCSI peripheral device may limit the speed of the SCSI bus channel to the speed of that device.
- Page 23 If you are installing a SCSI device, do both of the following (see Chapter 5, “Peripherals,” for details): Set the SCSI ID on the new drive to an unused ID number. Disable termination on the new drive. If you are installing an IDE device, proceed to the next step. Do one of the following: If installing a standard disk drive, place the disk drive in the tray, align the mounting holes, and install the four mounting screws.
-
Page 24: Adding External Scsi Peripheral Devices
Tighten the thumb screw on the top of the locking plate to lock the drive into place. Connect the proper interface cable (either SCSI or EIDE) and the power cable to the disk drive. Adding External SCSI Peripheral Devices You can connect additional SCSI peripheral devices to the external port of the SCSI adapter, which is located in the expansion slots on the back of the system. -
Page 25: Scsi Cable Quality Guidelines
SCSI Cable Quality Guidelines To ensure data integrity and optimum performance, do the following: Use the shortest cables possible to connect SCSI devices to the system and to each other. Use high-quality SCSI cables to ensure adequate shielding. CAUTION When handling cables, flex them as little as possible. Ensure that cables do not contact sharp metal surfaces or become excessively bent or twisted. -
Page 26: Changing Scsi Host Adapter Or Device Settings
Do one of the following: If the device is the last or only device on the SCSI chain, enable SCSI termination. If the device is the first device or is between the first and last device on the SCSI chain, disable SCSI termination. -
Page 27: Servicing The System
Servicing the System This chapter describes how to replace the major components of your Zx rack-mount workstation. WARNING This is a user-serviceable system. Service and upgrade tasks should be performed by users who can follow instructions in a manual to service equipment, and can do so without harm to themselves or damage to the equipment. -
Page 28: Base Unit Components
Base Unit Components The following figure shows the base unit components that can be replaced: Top Cover Face Panel Disk Drive Bay Door To replace the disk drive bay door, you must first remove the top cover and open the face panel. To replace the face panel, you must remove the top cover and the disk drive bay door. -
Page 29: Disk Drives
To replace the face panel: Remove the disk drive bay door from the old face panel. See the previous procedure. Install the disk drive bay door in the new face panel. See the previous procedure. Remove the old face panel by removing the two shoulder screws at the bottom left and right corners of the face panel. -
Page 30: Cd-Rom Drive
To replace the system disk drive: WARNING The system is always on when connected to AC power. Before performing this task, disconnect the system’s power cord from its AC power outlet. Disconnect the power cable and SCSI cable from the disk drive. Remove the four nuts (two on each side) from the vertical screws on each side of the disk drive, and lift the disk drive out of the chassis. - Page 31 Loosen the thumb screw on the front-most locking plate on the top left side of the peripheral device bay. Locking Plate Thumb Screw Lift and hold the locking plate. From inside the chassis, push the back of the CD-ROM until the bezel clears the front of the chassis, then slide the device out.
-
Page 32: Floppy Disk Drive
12. Tighten the locking plate thumb screw. 13. Connect the data cable and power cable to the CD-ROM drive. 14. Replace the chassis fan, as described later in “Chassis Fan.” Floppy Disk Drive To replace the floppy disk drive: WARNING The system is always on when connected to AC power. -
Page 33: Disk Drives In The Disk Drive Bay
10. Slide the new floppy disk drive into the chassis and align the first slot on the mounting guide with the locking plate tab. 11. Lower the locking plate, making sure the locking plate tab slides into the first slot on the mounting guide. -
Page 34: Disk Drive Bay
WARNING Removing and attaching the drive mounting plate requires careful handling to avoid contact with the delicate, electrostatic-sensitive parts on the circuit board of the disk drive. Handle disk drives carefully to prevent failure and voiding the warranty for the drives. To insert the new drive, extend the latching clips on the drive and align the rails on the sides of the drive with the slot guides in the disk drive bay. - Page 35 Note the location of the SCSI cable and disconnect the SCSI cable from the back of the disk drive bay. Power Connectors SCSI Cable Disconnect the power cables attached to the disk drive bay, using caution to avoid damage to the cables and components on the disk drive backplane.
-
Page 36: Saf-Te Card
SAF-TE Card The SCSI Activity Fault-Tolerant Enclosure (SAF-TE) card is an option used only on systems with RAID configurations. If your system has a RAID configuration with a SAF-TE card, use the following procedure to replace the SAF-TE card. To move or replace the SAF-TE card: WARNING The system is always on when connected to AC power. -
Page 37: Power Supply
Power Supply WARNING There are no user-serviceable parts in the power supply. Return the power supply to the manufacturer for repair. To replace the power supply: WARNING The system is always on when connected to AC power. Before performing this task, disconnect the system’s power cord from its AC power outlet. -
Page 38: Processor Modules
Remove and retain the four screws securing the mounting plate to the power supply. Mounting Screws Using the same four screws, attach the mounting plate to the new power supply. Place the new power supply and mounting plate into the chassis, and secure it with the four screws retained in step 3. -
Page 39: Processor Retention Modules
CAUTION System memory modules from Intergraph Computer Systems are certified for use with Intergraph computers at extremes of temperatures and system load to ensure reliable performance. System memory modules available from other vendors may not function properly or reliably in your Intergraph computer. - Page 40 Before you install memory, do the following: Inspect DIMM keying. The slot keys on the DIMM must match the slot keys in the DIMM socket. This ensures that you have the correct voltage and type of DIMM. Inspect DIMM contacts. The DIMM must have gold-plated fingers that match the gold-plated socket contacts.
-
Page 41: System Board
System Board If you need to replace your workstation’s system board, you must swap the DIMMs and the processor modules from the old system board to the new one. See the System Board Manual for connector and socket locations. To remove the system board: WARNING The system is always on when connected to AC power. -
Page 42: Expansion Cards
Expansion Cards See the System Board Manual for connector and socket locations. To avoid damaging an expansion card and voiding its warranty, take the following precautions: Handle the expansion card only by the edges. Do not touch the metallic finger contacts. Do not bend, twist, drop, or otherwise handle the expansion card carelessly. - Page 43 Remove and retain the screw securing the mounting plate and fan to the chassis. Loosen the thumb screw attaching the mounting plate to the inside of the chassis. Thumb Screw Mounting Screw Note the airflow direction of the fan and the position of the fan on the mounting plate (the side closest to the processors), and gently pull upward on the mounting plate until the mounting plate and fan clear the chassis.
-
Page 44: Disk Drive Bay Fans
Disk Drive Bay Fans See Chapter 4, “System Hardware,” for technical information on the disk drive bay fans. To replace a disk drive bay fan: WARNING The system is always on when connected to AC power. Before performing this task, disconnect the system’s power cord from its AC power outlet. Disconnect the fan’s power cable from its power supply connector. -
Page 45: Leds, Power, And Reset Switches
To replace the battery: WARNING The system is always on when connected to AC power. Before performing this task, disconnect the system’s power cord from its AC power outlet. Remove any expansion cards that restrict access to the battery. See “Expansion Cards” for details. - Page 46 Power/Reset Switch Assembly LED Assembly To replace an LED: WARNING The system is always on when connected to AC power. Before performing this task, disconnect the system’s power cord from its AC power outlet. Open the face panel. See Chapter 1, “Gaining Access to System Components,” for details. Note the locations of the two LEDs on the switch mounting plate.
-
Page 47: System Hardware
System Hardware This chapter contains technical information about the hardware included in your Zx rack-mount workstation. This chapter does not contain information on the workstation’s system board. See the System Board Manual delivered with your workstation for detailed information on the system board and its components, memory, slots and sockets, jumpers and connectors, and external ports. -
Page 48: Disk Drive Bay
Disk Drive Bay The disk drive bay includes the disk drive cage and a Small Computer Systems Interface (SCSI) backplane. This assembly is always replaced as one unit. The SCSI backplane is a Low Voltage Differential Signal (LVDS) SCSI compliant backplane. It is designed to connect up to four SCSI devices to a system in which the backplane is installed. - Page 49 J20 and J21 are auxiliary bus connectors used in multiple backplane configurations only. J9 is used only in multiple backplane configurations and should not be installed. U7-9 are the LVD SCSI termination circuits. These provide the bus termination necessary for proper operation.
-
Page 50: Jumper Settings
Jumper Settings RAID systems, which use the Mylex RAID controller, do not use any jumpers on these headers. The spin-up delay and SCSI ID settings are controlled by the RAID controller and SCSI backplane, respectively. Disk Drive LEDs Light-emitting diodes (LEDs) D1 through D8 are visual activity and status indicators for the disk drives connected to the disk drive bay’s backplane. -
Page 51: Power Supply
Power Supply The 300 Watt power supply has a manual switch for selecting either 115 VAC (90-132 VAC) range or 230 VAC (180-264 VAC) range for domestic or oversea locations. The input frequency is 47-63 Hz, single phase. Input current is 5 amps maximum for the 115 VAC range and 2.5 amps for the 230 VAC range. -
Page 52: Chassis Cooling Fans
J19 Connector Pinout Signal Signal Signal +3.3V Ground +5.0V +3.3V Reserved Ground Ground +5.0V +5.0V Ground +3.3V Ground +5.0V Ground +5.0V +5.0V Ground Ground Ground Ground +5.0V +5V.0 Chassis Cooling Fans The system has two 12 V DC cooling fans. One fan is mounted in the chassis; the other is located inside the power supply. -
Page 53: Disk Drive Bay Cooling Fans
Disk Drive Bay Cooling Fans The RAID/JBOD disk drive bay also has two cooling fans mounted behind the disk drive bay. The table below summarizes fan information. Size Location Airflow Devices Cooled Connector Disk drive bay 120 mm Behind disk Front-to-back Disk drive bay;... -
Page 55: Peripheral Devices
Peripheral Devices This chapter provides information on the cabling and configuration of standard peripheral devices in your Zx rack-mount workstation. Internal Peripheral Device Cables The following describes internal peripheral device cables, their connectors, and the locations in the system to which they connect. Cable illustrations are not to scale. You can identify the cables and connectors using their spacing as a reference. -
Page 56: Disk Drive Bay Scsi Cable
Disk Drive Bay SCSI Cable Connector Connects To SCSI adapter or RAID controller (depends on system configuration) SCSI backplane on disk drive bay Ultra Wide SCSI Cable Connector Connects To SCSI adapter Open SCSI system disk drive SCSI terminator Peripheral Device Configuration This following provides information on configuring standard peripheral devices used in the system. -
Page 57: Floppy Disk Drive
Floppy Disk Drive The following figure shows the cable connectors on a typical floppy disk drive. Power Floppy Data Connector Connector Device Connector Cable Connects to Power Power Supply Data MCBL194 Floppy disk controller on system board IDE CD-ROM Drive The following figure shows the cable connectors and jumper connectors on a typical IDE CD-ROM drive. -
Page 58: Scsi Disk Drives
SCSI Disk Drives The following figure shows the connectors on a typical SCSI disk drive. SCSI Connector SCSI Pin 1 Power Connector Device Connector Connects to Power SCSI backplane SCSI SCSI backplane See the label on the disk drive for information on jumper connectors. -
Page 59: System Information
System Information This chapter contains specifications and other technical information for your Zx rack-mount workstation. System Configuration Summary The following table summarizes the main features of the system. Feature Description Processors One or two Intel Slot 1 (Pentium III and higher) Processor Bus 100 MHz, 64 bits Memory Modules... -
Page 60: System Board Components
Feature Description Peripheral Bay One 3.5-inch x 1.6-inch internal bay for system disk drive One 5.25-inch x 1.6-inch external bay for optional peripheral device One 5.25-inch x 1.6-inch external bay for CD-ROM drive One 3.5-inch x 1.0-inch external bay for floppy disk drive Disk Drive Bay Four slots for SCA SCSI JBOD or RAID disk drives I/O Ports... -
Page 61: System Specifications
System Specifications Item Specifications Dimensions 16.7 in x 8.7 in x 23.6 in (42.4 cm x 22.1 cm x 60.0 cm) Weight 60 lb (27.2 kg) maximum configuration AC line voltage (US) 90-132 VAC, 47-63 Hz, 1 phase, 15A/125 V receptacle AC line voltage 180-264 VAC, 47-63 Hz, 1 phase, 15A/250 V receptacle (International)
