NetTool Menus

NetTool has an icon- and menu-driven user interface.

Icons

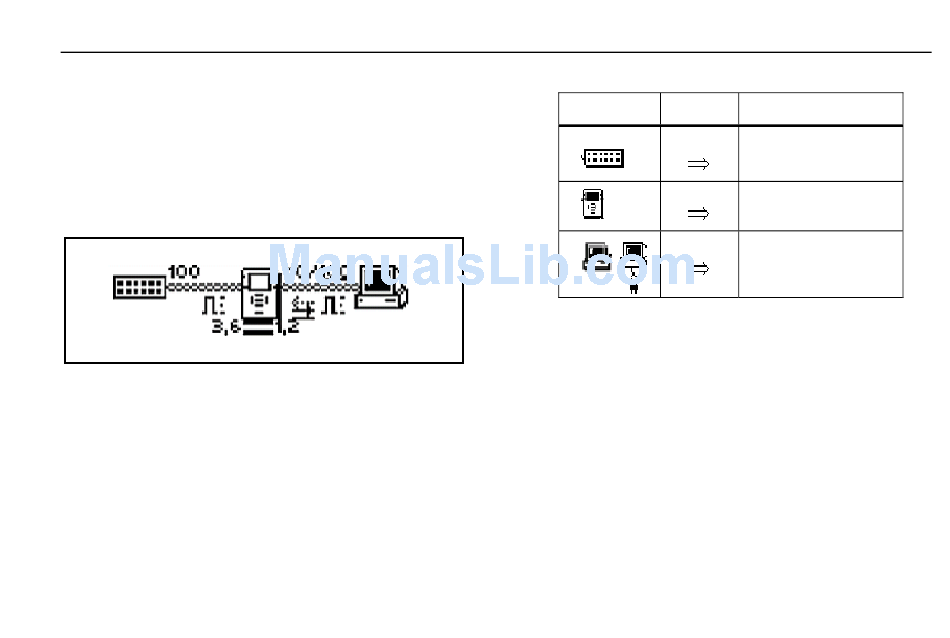

The top area (Figure 1-4) contains a connection diagram.
This diagram contains icons that show what type of
device is connected to NetTool's RJ-45 jacks.
Figure 1-4. NetTool Icons
NetTool's device icons are listed in Table 1-1. By moving
the cursor to an icon and then selecting it, you can drill
down to find out more information about the device.
Icon

Main Menu

NetTool's Main menu is located under the connection
diagram. From this menu, you can access the following:
ahn020s.eps
To display these screens, move the cursor to the
menu item, then press SELECT.
•
Problems: displays the Problem Log, which lists all
problems detected from the physical layer to the
application layer. See Chapter 6, "Common
Problems", for details.
•
Protocols: displays all of the protocols that NetTool
sees on the desktop or on the network.
Getting Acquainted
Table 1-1. NetTool's Device Icons
Network
NetTool Setup
Station
Note
Introduction
1
Menu
1-7
