NetTool Toolkit

NetTool Toolkit enables you to:
•
Generate reports
•
Download reports
•
Configure PING parameters and catalogs.

Installing and Running the Link Utilities

To install the programs:
1. Insert the CD-ROM that comes packaged with
NetTool into your PC.
A navigation screen displays.
2. Run the setup program to install both programs.
3. Run the link utility programs from the Start |
Programs | Fluke Networks...menu.

Getting Acquainted

This section shows you how to turn NetTool on and off
and acquaints you with the functions of the tester's
buttons, navigation keys, and LEDs. You will also become
familiar with NetTool's icon/menu-driven user interface.

Turning on NetTool

To turn NetTool on, press the green Power button firmly
for one second.

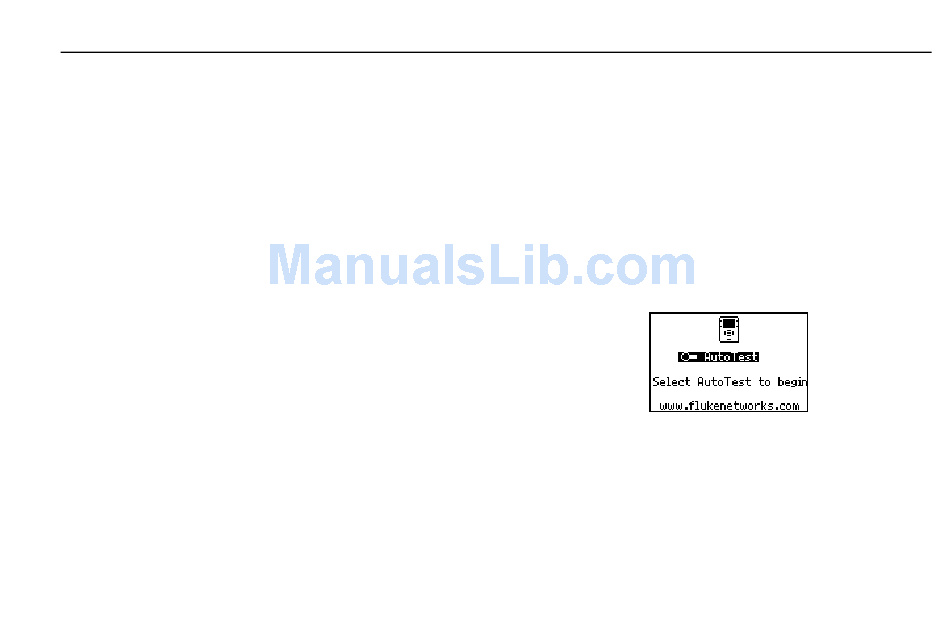

This initial screen is displayed:
Figure 1-2. Initial Screen

Turning on the Backlight

To turn on the display backlight, quickly press the Power
button. Press it again quickly to turn the backlight off.
