Warning:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.
What To Do If You Smell Gas:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use
gasoline or other flammable
vapors and liquids in the
vicinity of this or any other
appliance.

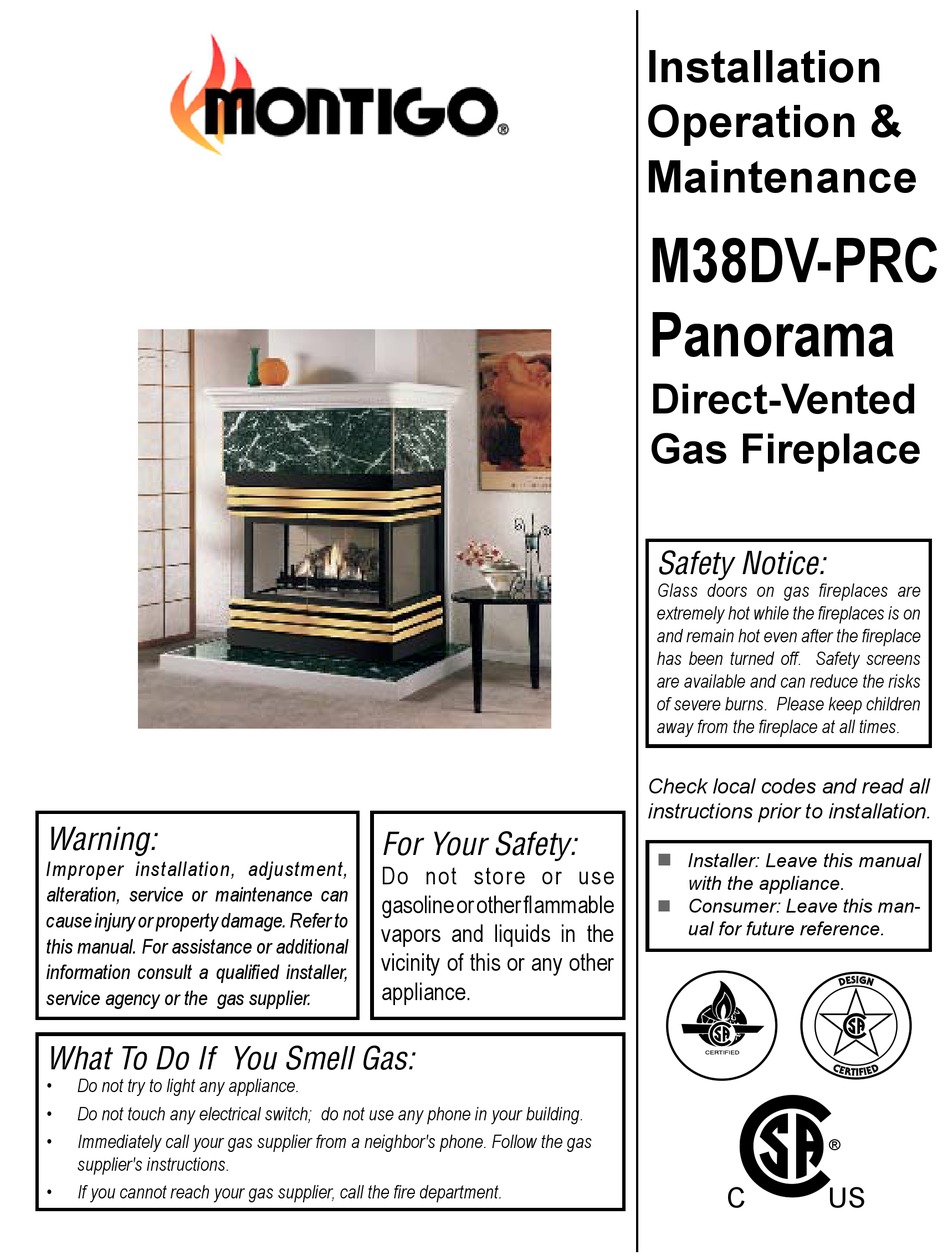

Installation
Operation &
Maintenance
M38DV-PRC
Panorama
Direct-Vented
Gas Fireplace
Safety Notice:
Glass doors on gas fireplaces are
extremely hot while the fireplaces is on
and remain hot even after the fireplace
has been turned off. Safety screens
are available and can reduce the risks
of severe burns. Please keep children
away from the fireplace at all times.
Check local codes and read all
instructions prior to installation.
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
C
®
US
Advertisement
Table of Contents
Related Manuals for Montigo Panorama M38DV-PRC
Summary of Contents for Montigo Panorama M38DV-PRC
-
Page 1: Safety Notice
Installation Operation & Maintenance M38DV-PRC Panorama Direct-Vented Gas Fireplace Safety Notice: Glass doors on gas fireplaces are extremely hot while the fireplaces is on and remain hot even after the fireplace has been turned off. Safety screens are available and can reduce the risks of severe burns. -
Page 2: Table Of Contents
The 38 Series Direct Vent - Panorama is a multi-sided Gas Fireplace with an adjustable center burner and air-circulating fans. It is avail- Introduction ................2 able in two models: Installation ................3 - 12 Model M38DV-PRC (continuous pilot) Installing the Fireplace Shell .......... 3 Model M38DV-PRC-I (intermittent pilot) Installing the Gasline ............4 This manual covers installation, operation and maintenance. Light- ing, operation and care of this fireplace can be easily performed by The Remote Switch . -
Page 3: Installation
For protection against freezing temperatures, it is recommended that outer walls of the chase be insulated with a vapour barrier. This will The fireplace dimensions are shown below: reduce the possibility of a cold-air convection current on the fireplace. Top View Figure 2. Framing dimensions. Front View Side View Figure 1. Fireplace dimensions. Clearances The M38DV-PRC clearances to combustible materials are: Top* 16" Back 0" Figure 3. Framing for shelves over the fireplace. Floor 0" Mantle** 6" Vent 1" * Clearance from the top of the fireplace to a combustible ceiling within the fireplace enclosure. -
Page 4: Installing The Gasline
The M38DV-PRC fireplace uses Premium venting components upstream of the gas supply controls to the appliance. The fireplace with: gas connection and the main operating gas valve is located behind 5 " inner dia. /8" outer dia. the removable brass trim at the bottom of the unit and need only be Minimum 2" clearance to combustibles required for vent pipes attached to the gas line with an approved fitting, as required by the Use only certified Montigo vent components. (Use of other parts applicable installation codes. will void the Montigo warranty, and may impede the operation of the fireplace.) • Only use gas shut-off valves approved for use by the state, province, All joints must be secured with a minimum of two screws per joint region, or governing body, in which the appliance is being installed, or Vent terminations must not be recessed in walls or siding as required by the applicable installation codes. Horizontal runs must be supported by a minimum of two supports • Flexible gas connectors must not exceed 3 feet in length, unless it is... -
Page 5: Terminations
Panorama Direct Vented Fireplace Installation Vent Terminations 2. Attach to the faceplate of the termination using four sheet metal screws. Installing Terminations with Built-In Frames 1. Frame the termination opening to 11" x 11". 2. Fasten the termination to the studs using a minimum of 4 PTO-3F PTKOG Figure 5d. Installing the heat guard. Venting Runs If your installation requires more than 12" of horizontal venting, some Figure 5a. Installing a PTO-3F termination. vertical lift is required. Use the vent graph below to determine an Installing Terminations with MSR Frames acceptable vent run. Unacceptable venting can affect the fireplace's 1. Frame the termination opening to 12" x 12". -
Page 6: Horizontal Venting Runs
Panorama Direct Vented Fireplace Installation Horizontal Vent Installation Long Vent Runs: For longer or more complex vent runs, vertical lift is required. First Vent systems that terminate through a wall may comprise up to six ensure that the planned run is acceptable using the Vent Graph. Plan different components: out the required components using the chart above. You may be able A - Termination PTO-3 (3" length) to use fewer components using the chart below. PTO-3F (3" length) Example: B - Stucco Kits MSR (stucco frame) A rigid section and an elbow used in conjunction with 3 ft. flex section MOSR (stucco can) (PFL-3) will, when extended in a chase, allow for a maximum horizon- tal run of twelve and one-half feet from the centre of the fireplace to BSR (brick can) outside wall and a minimum of 7'6" when retracted in opposite direc- C - Flex sections... -
Page 7: Vertical Venting Runs
Panorama Direct Vented Fireplace Installation Vertical Vent Installations A maximum of two offsets (each offset has two 90° bends) may be made if the length of the offsets does not exceed 25% of the Vertical Terminations must be installed: vertical vent height, when measured center to center of piping. • minimum 2' (two feet) above the highest point where vent passes through the roof. Example: Typical vent installation. • minimum 6' (six feet) from a mechanical air inlet 30' vertical vent • minimum 18" (1 1/2 feet) from a parapet wall. 2 - 2' offsets required 25% of 30' = 7-1/2' max. offset allowed Maximum vent height is 30 feet above fireplace. This venting configuration meets requirements. Note: Flame characteristics will change if the maximum vent height is used. Minimum clearances 2" from vent to all combustible materials must be maintained. A - Termination PVTK-1 B - Flex sections... -
Page 8: Facing
Panorama Direct Vented Fireplace Installation Finishing Around the Fireplace Combustible mantels and mouldings may be safely installed over the Mantels & Surrounds top and on the front of the fireplace provided that they do not project NOTE: Mantel clearances are for fire hazard prevention to combus- beyond shaded area shown in Figure 13a. Side wall clearances are tible materials. 0". Combustible surrounds may be installed with 0" clearance to the New technology, to meet consumer and government demands for the side of the fireplace as shown in Figure 13b. wise use of energy, has prompted us to manufacture many models of fireplaces which are hot, fuel and energy efficient. Fireplace Facing Please be aware; temperatures over the mantel will rise above nor- When selecting the finish material for your fireplace, it is important to mal room temperature and walls above fireplace may be hot to touch. remember the following: THE TRIMS MUST NOT BE OBSTRUCTED IN ANY WAY - to do so restricts the air supply for the control We recommend careful consideration be given to the effects of compartments and heat exchanger it also prevents access for elevated mantel temperatures which may be in excess of product... -
Page 9: Wiring
Limit Wall Switch Switch chine screws on the top, bottom and side of the door. (See figure 16). Door Installation To attach the inner doors, align the door with the screw holes and re-fasten with all nine machine screws. Ensure that a good seal is maintained. Figure 14. Wiring for the M38DV-PRC-I with Honeywell gas control and pilot. Fan Wiring The M38DV-PRC is equipped with 4 fans for circulating heat into the living space. Installations in Canada must be in accordance with CSA C22.1 Canadian Electrical Code Part 1 and/or Local Codes. Installations in the USA must be in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70-1987. If any of the original wire supplied with the appli-... -
Page 10: Operation
L og ‘ C’ R ear L og ‘A’ Front L og ‘ B ’ Figure 15. Log Installation. 'Hi-Lo' Adjustment on the M38DV-PRC's gas valve. Figure 16. Note: M38DV-PRC-I models (electronic ignition) do not fea- ture hi/lo adjustment. Figure 15b. Completed Installation. The ember material is supplied in two packages. Place the material evenly along the front ember burner tube, next to log 'A'.Refer to figure 15b... -
Page 11: To Turn Off Gas To Appliance
Panorama Direct Vented Fireplace Operation - Model M38DV-PRC M38DV-PRC with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance has a pilot which must be lighted by Department. hand. When lighting the pilot, follow these instructions C. Use only your hand to push in or turn the gas control exactly. knob. Never use tools. If the knob will not push in or B. BEFORE LIGHTING smell all around the appliance turn by hand, don't try to repair it, call a qualified serv- area for gas. -
Page 12: Lighting Instructions
Panorama Direct Vented Fireplace Operation - Model M38DV-PRC B-Series BF-A L-Series DF-I with American Flame Electronic Ignition For Your Safety - READ BEFORE LIGHTING: with American Flame Electronic Ignition WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 13: Operation
Panorama Direct Vented Fireplace Operation - Model M38DV-PRC-I M38DV- with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition sys- If you cannot reach your gas supplier, call the tem that lights the pilot burner automatically. Do Fire Department. -
Page 14: Maintenance
Panorama Direct Vented Fireplace Maintenance Gas Control Valve CAUTION • Fireplace gas control must be in the “OFF” position and pilot and main burners extinguished when cleaning appliance with Secondary Limit Thermocouple Power Vent Safety Switch a vacuum. Connection Generator • Glass and logs can get very hot. Handle only when cool. Pilot Adjustment Screw Wall Switch General Have the fireplace installation inspected yearly, including a visual check of the vent system, the burner and the pilot flame. For con- venience a 1/8" manifold pressure tap is supplied on the gas valve Inlet Pressure Manifold Pressure for a test gauge connection. See Figure 19. Test Connection Figure 19. - Page 15 Panorama Direct Vented Fireplace Maintenance Troubleshooting M38DV-PRC Troubleshooting M38DV- The following is a troubleshooting chart of possible problems: PROBLEM CORRECTIVE ACTION Noisy Pilot Flame Locate pilot adjustment screw on the front of the gas control valve. Flame is decreased by turning adjustment screw clockwise. Pilot won’t ignite Disconnect remote wires and try to light pilot. If pilot now works, remote connections are faulty. Check wiring diagram figure Main burner will 1. Check wiring (see figure 19) not light 2. Check wall switch for proper con- nection. 3. Check pilot burner. If extinguished: a. Allow fireplace to cool, then try to relight. b. If condition persists, call a qualified service person. If your fireplace still does not operate correctly, consult your dealer or the manufacturer. All service and repairs should be performed by a qualified agency.
-
Page 16: Warranty
The Companies shall in no event be responsible for any warranty work done without first obtaining The Companies written consent. Dealers have no authority to alter this Warranty. The Companies employees and dealers have no authority to make any warranties nor to authorize any remedies in addition to or inconsistent with those stated above. How To Register A Claim Against Warranty In order for any claim under this Warranty to be valid, The Companies must be notified of the claimed defect in writing or by telephone, as soon as reasonably possible after the defect is discovered. Claims against this Warranty in writing should include the date of installation, and a description of the defect. Other Rights This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. NOTE: The Companies as stated above refer to - Canadian Heating Products Inc. and/or Montigo Del Ray Corp. Canadian Heating Products Inc. and/or Montigo DelRay Corp. reserves the right to make changes at any time, with- Page 1 XG0204 04/05... -
Page 17: Appendix A - Termination Locations
Panorama Direct Vented Fireplace Appendix A - Termination Locations A = clearance to the termination frame above grade, veranda, porch, minimum for appliances ≤100 000 BTU/H (30kW)] deck, or balcony [16 inches (41 cm) minimum] M = clearance to mechanical air supply inlet B = clearance to door, or sides and top of window, that may be opened [*6 feet (1.8 m) minimum] [16 inches (41 cm) minimum for appliances ≤100 000 BTU/H... -
Page 18: Appendix B - Spare Parts & Accessories
Panorama Direct Vented Fireplace Appendix B - Spare Parts & Accessories Page 1 XG0204 04/05... - Page 19 Panorama Direct Vented Fireplace Notes XG0204 04/05 Page 1...
- Page 20 Panorama Direct Vented Fireplace Notes Page 0 XG0204 04/05...
- Page 21 Panorama Direct Vented Fireplace Notes Page 1 XG0204 04/05...
- Page 22 XG0204 - 011707 Montigo Del Ray Corp. Canadian Heating Products Inc. Ferndale, WA 98248 Langley, BC V4W 4A1...
