See-thru b-vented gas fireplace
Hide thumbs Also See for M38BV-ST:

Advertisement

Warning:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this manual. For assistance or additional
information consult a qualified installer,
service agency or the gas supplier.

What To Do If You Smell Gas:

Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
For Your Safety:
Do not store or use
gasoline or other flammable
vapors and liquids in the
vicinity of this or any other
appliance.
Installation
Operation &
Maintenance
M38BV-
See-Thru
B-Vented
Gas Fireplace

Safety Notice:

Glass doors on gas fireplaces are
extremely hot while the fireplaces is on
and remain hot even after the fireplace
has been turned off. Safety screens
are available and can reduce the risks
of severe burns. Please keep children
away from the fireplace at all times.
Check local codes and read all
instructions prior to installation.
Installer: Leave this manual
with the appliance.
Consumer: Leave this man-
ual for future reference.
C
®
US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M38BV-ST and is the answer not in the manual?

Questions and answers

Summary of Contents for Montigo M38BV-ST

  • Page 1: Safety Notice

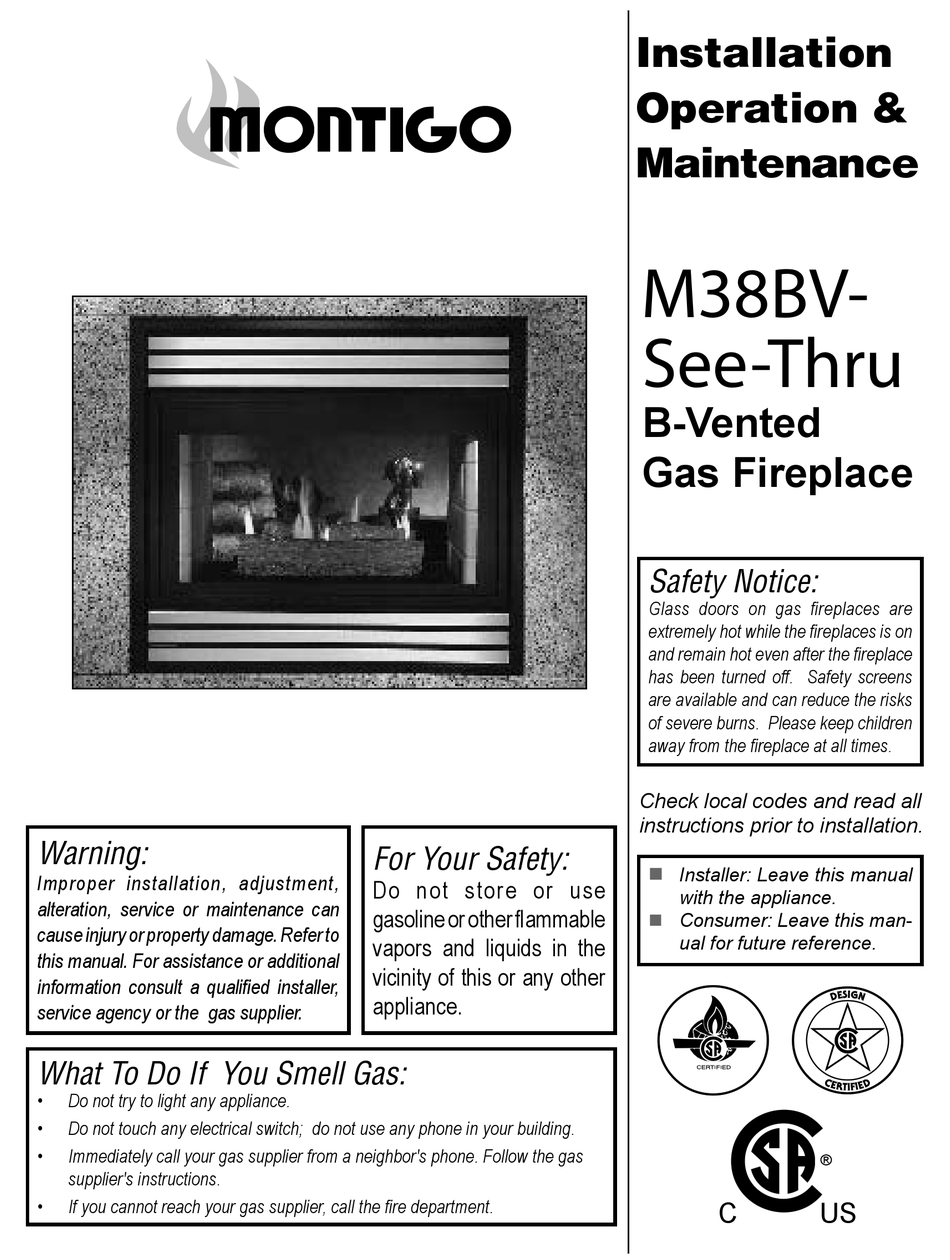

    Installation Operation & Maintenance M38BV- See-Thru B-Vented Gas Fireplace Safety Notice: Glass doors on gas fireplaces are extremely hot while the fireplaces is on and remain hot even after the fireplace has been turned off. Safety screens are available and can reduce the risks of severe burns.
  • Page 2: Table Of Contents

    M38BV-ST B-Vented Fireplace Introduction Table Of Contents The M38BV-ST is a See-Thru Gas Fireplace with glass doors on two sides and an adjustable center burner. This fireplace is for use with Introduction ................2 standard 4" B-Vent It is available in two models:...
  • Page 3: Installation

    Front View Ø4" B-Vent 17 1/8 Figure 2a. Framing dimensions. 38 1/4 Top View Figure 1. Fireplace dimensions. Clearances The M38BV-ST clearances to combustible materials are: Top* 14" Figure 2b. Securing the fireplace to the framing. Sides 1 1/2" Floor 0"...
  • Page 4: Installing The Gasline

    Installation Installing The Gas Line B-Vent Installation The gas line must be installed before finishing the M38BV-ST fire- The M38BV-ST is certified for use with standard 4" B-Vent and place. Natural Gas requires a minimum inlet gas supply pressure of requires no B-Vent appliance connector.
  • Page 5: Finishing Around The Fireplace

    M38BV-ST B-Vented Fireplace Installation Finishing Around the Fireplace Combustible mantels and mouldings may be safely installed over the Mantels & Surrounds top and on the front of the fireplace provided that they do not project NOTE: Mantel clearances shown are for fire hazard prevention.
  • Page 6: Installing The Logset

    Junction Box Cover Connector Fuse Installing the Log Set Junction Box Fan Plug Receptacle The M38BV-ST is supplied with five (5) fibre logs. To install, simply Black place log "A's" rectangular shaped extension into the log mounting 115VAC White Green 24VAC slot located on rear wall of the burner assembly.
  • Page 7: Removing And Installing The Door

    The door surround is held in place by two metal clips at the top, and one magnet on each side. To remove the surround, pull the bottom The M38BV-ST is equipped with an adjustable burner, allowing you to outwards and lift upwards until the slots "A" are clear of tabs "B" in raise or lower the flames.
  • Page 8: Lighting Instructions - Model M38Bv-St

    M38BV-ST B-Vented Fireplace Operation - Model M38BV-ST M38BV-ST with Continuous Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This appliance has a pilot which must be lighted by Department. hand. When lighting the pilot, follow these instructions C. Use only your hand to push in or turn the gas control exactly. knob. Never use tools. If the knob will not push in or B. BEFORE LIGHTING smell all around the appliance turn by hand, don't try to repair it, call a qualified serv- area for gas.
  • Page 9: Lighting Instructions - Model M38Bv-St-I

    M38BV-ST B-Vented Fireplace Operation - Model M38BV-ST-I M38BV-ST-I with Honeywell Intermittent Pilot For Your Safety - READ BEFORE LIGHTING: WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition sys-  If you cannot reach your gas supplier, call the tem that lights the pilot burner automatically. Do Fire Department. not attempt to light the pilot by hand.
  • Page 10: Lighting Instructions - Model M38Bv-St

    M38BV-ST B-Vented Fireplace Operation - Model M38BV-ST with American Flame Electronic Ignition For Your Safety - READ BEFORE LIGHTING: with American Flame Electronic Ignition WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition system that allows...
  • Page 11: Maintenance

    M38BV-ST B-Vented Fireplace Maintenance Gas Control Valve CAUTION • Fireplace gas control must be in the “OFF” position and pilot and main burners extinguished when cleaning appliance with Thermocouple Power Secondary Limit a vacuum. Connection Generator • Glass and logs can get very hot. Handle only when cool.
  • Page 12: Troubleshooting

    M38BV-ST B-Vented Fireplace Maintenance Troubleshooting M38BV-ST-I M38BV-ST Troubleshooting The following is a troubleshooting chart of possible problems: PROBLEM CORRECTIVE ACTION Noisy Pilot Flame Locate Pilot Adjustment Screw. Flame is decreased by turning adjust- ment screw clockwise. Pilot won’t ignite Disconnect remote wires and try to light pilot.
  • Page 13: Warranty

    The duration of any implied warranty with respect to this Montigo Gas Appliance is limited to the duration of the foregoing warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you.
  • Page 14: Appendices A - Spare Parts

    M38BV-ST B-Vented Fireplace Appendix A - Spare Parts & Accessories Page 1...
  • Page 15 M38BV-ST B-Vented Fireplace Notes Page 1...
  • Page 16 XG0400 - 011707 Montigo Del Ray Corp. Canadian Heating Products Inc. Ferndale, WA 98248 Langley, BC V4W 4A1...
