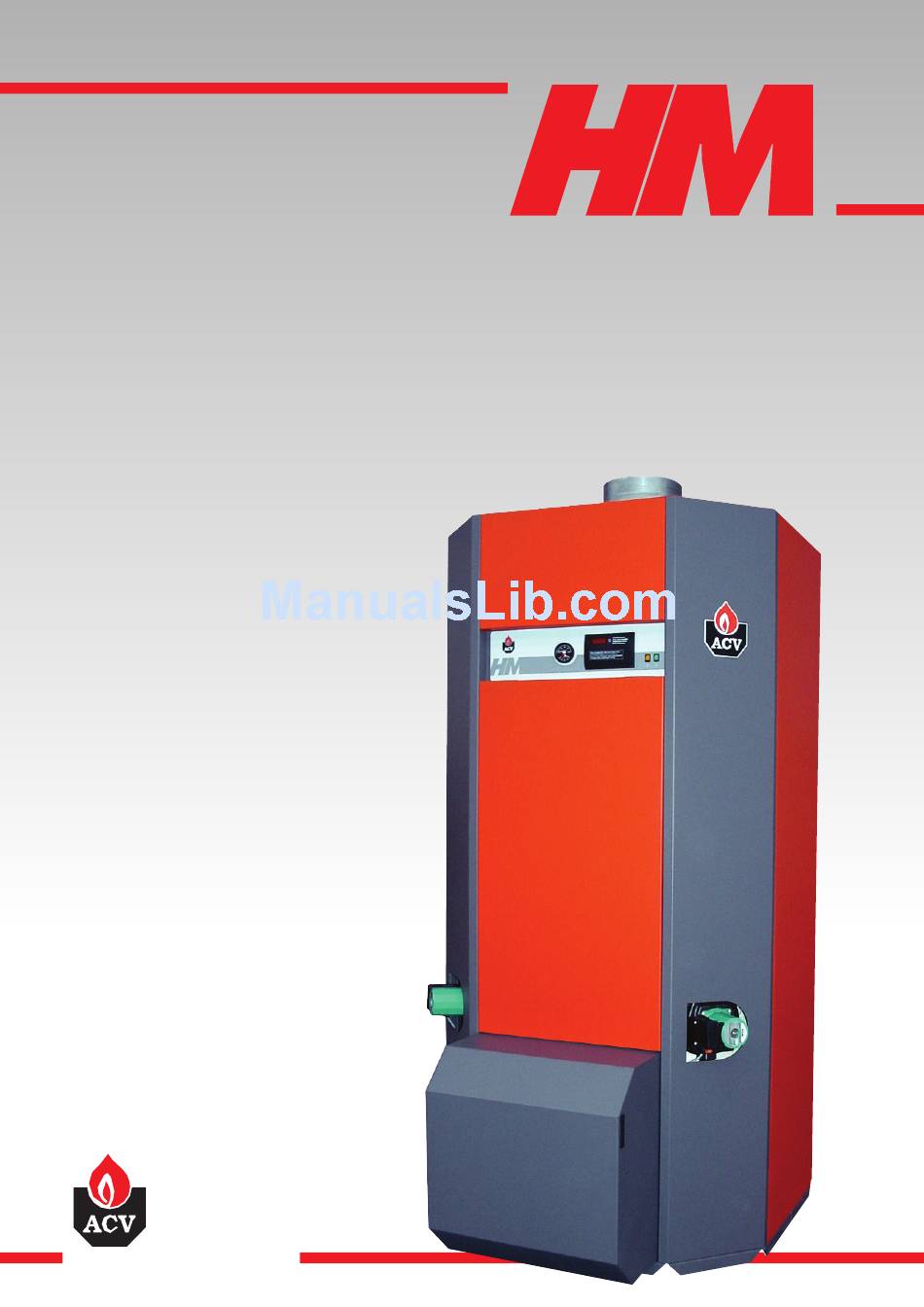

- Page 1 HeatMaster ® Installation, Operating and Servicing Instructions HeatMaster ® excellence in hot water 05/03/2003 - 66412500...
-
Page 3: Table Of Contents
Heating connection Electrical connections COMMISSIONING Filling the hot water and heating circuits BURNER FEATURES ACV BG 2000-M modulating premix gas burner Danger of electrocution. MAINTENANCE D A N G E R Service intervals Servicing the boiler Servicing the safety devices... -
Page 4: Introduction
16) Only genuine factory parts may be used as replacement parts. Please go to page 22 for a list of spare parts and their ACV reference numbers. Note: ACV reserves the right to change the technical characteristics Safety Valves and specification of its products without notices. -
Page 5: User Guide
USER GUIDE SETTING THE PARAMETERS Setting the temperature of the hot water Stand by mode Store Mode Stand mode Mode Step Setting the temperature of the hot water: Store (Temperature of the hot water) - Press “Mode”: “PARA” comes up on the screen. - Press “Step”: the first digit is 1 and the last two digits indicate the current temperature setting for the hot water. -
Page 6: Description
Burner module, most hot water and heating demands can be met. Models in the 201 range are always delivered with an ACV Indeed, when used in conjunction with HR and Jumbo hot water BG 2000-M 201 air-gas premix burner. - Page 7 DESCRIPTION “Tank-in-Tank” type storage Turbulators exchanger Heating outlet Flue ways Stainless steel pocket Primary circuit Heating return Combustion chamber Boiler drain cock Hot water outlet NTC 3 sensor Chimney reducer Cold water inlet Steam trap NTC1 and NTC2 sensor T&P valve (optional) Insulation Thermostat-pressure gauge bulb...
-
Page 8: Technical Specification
TECHNICAL SPECIFICATION EFFECTIVE DIMENSIONS The appliances delivered are factory-tested. Upon receipt, remove the packing and check that there is no damage to the appliances. Refer to the dimensions and weights listed below for transport purposes. The jacket is fitted by the installer on site (see the assembly instructions in the wooden protective case) A mm B mm... -
Page 9: Maximum Operating Conditions
TECHNICAL SPECIFICATION MAXIMUM OPERATING CONDITIONS HEATMASTER ® SETTING INSTRUCTIONS Maximum service pressure Description (tank full of water) - Primary circuit: 3 bar The HeatMaster ® 201 range is equipped with an electronic - Secondary circuit: 10 bar controller (MCBA) which controls the burner (start-up, safety, and modulation) and allows the controller to be adapted to the selected Test pressure (tank full of water)
