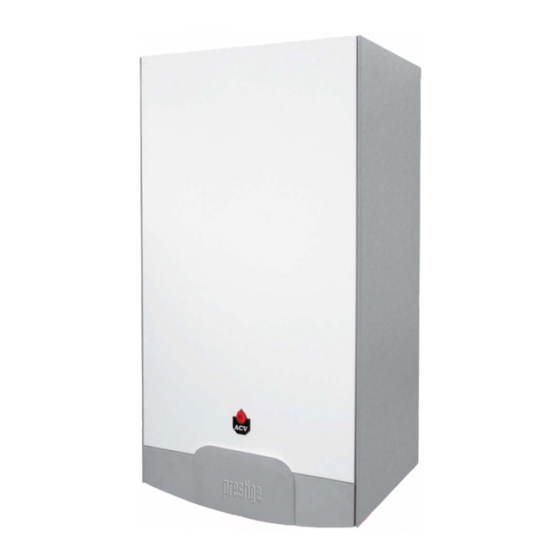

ACV Prestige Series Installation, Operating And Servicing Instructions

ACV Prestige Series Installation, Operating And Servicing Instructions

Hide thumbs Also See for Prestige Series:

Advertisement

Prestige
Installation, Operating and
Servicing Instructions
Prestige Solo
24 - 32
Prestige AquaSpeed 24 - 32
Prestige Excellence 24 - 32
excellence in hot water
05/11/2003 - 66412300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prestige Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ACV Prestige Series

  • Page 1 Prestige Installation, Operating and Servicing Instructions Prestige Solo 24 - 32 Prestige AquaSpeed 24 - 32 Prestige Excellence 24 - 32 excellence in hot water 05/11/2003 - 66412300...
  • Page 2 INDEX INTRODUCTION INSPECTION AND MAINTENANCE Target audience Inspection and maintenance Symbols Dismantling the parts Certification General information and safety instructions MCBA FOR THE SPECIALIST: INSTALLER, MAINTENANCE TECHNICIAN DIRECTIONS FOR USE Pilot mode Safety stop (Error mode) Directions for use Setting the parameters Setting the parameters Entering the code Requesting information on the installation...
  • Page 3: Target Audience

    The parts may only be replaced by genuine factory parts. Please “Efficiency”, 90/396/EC “Gas appliances”). They also carry the see the list of spare parts and their ACV reference numbers from “HR+” and “HR-TOP” labels (Gas condensation boilers). page 29 onwards.
  • Page 4: Directions For Use

    DIRECTIONS FOR USE DIRECTIONS FOR USE The system’s hot water temperature (Hot water temperature) - Press Mode: The screen displays PARA. Your system must be checked once a year by an approved installer - Press Step: the first character is 1 and the last two characters or maintenance company.
  • Page 5: Frost Protection

    60°C. Burner - Exceptional resistance against corrosion and aggression: ACV uses its BG 2000-M burner for the Prestige: this is an air/gas provided by the stainless steel. premix burner providing safe and silent operation while limiting emissions (NOx and CO) to an incredibly low level. Although the...
  • Page 6 DESCRIPTION PRESTIGE Solo Burner Temperature regulator (MCBA) Heat exchanger Lining Flue ways Insulation PRESTIGE AquaSpeed PRESTIGE Excellence Automatic air vent Outlet Vent connection CH side reserve Tank outer shell Water deflector tube Inner stainless steel tank PU Insulation PU Insulation Outlet Sensor pocket for NTC 3 Connection to the hot water...
  • Page 7: Technical Data

    TECHNICAL DATA NATURAL GAS MODEL Central heating Solo AquaSpeed Excellence Max (intake) pressure Min (intake) pressure Max output 80/60°C 23.3 30.8 23.3 30.8 23.3 30.8 Min. output 80/60°C Efficiency (high power) 80/60°C Efficiency (low power) 80/60°C Efficiency (high power) 45/30°C Efficiency (low power) 45/30°C Flue gases C0 emissions CO (high power / min.)
  • Page 8: Propane Model

    TECHNICAL DATA PROPANE MODEL Central heating Solo P AquaSpeed P Excellence P Max (intake) charge 30.5 30.5 30.5 Min (intake) charge Max. output 80/60°C 23.3 29.3 23.3 29.3 23.3 29.3 Min. output 80/60°C Efficiency (high power) 80/60°C Efficiency (low power) 80/60°C Efficiency (high power) 45/30°C Efficiency (low power) 45/30°C Flue gases...
  • Page 9: Domestic Hot Water Features

    TECHNICAL DATA DIAGRAM OF THE PUMP (output available for the CH circuit pump) Power supply available in mbar AquaSpeed Excellence 1000 1200 1400 1600 1800 2000 2200 2400 Flow in litres/hour DIAGRAM OF THE PRESSURE DROP ON THE DOMESTIC HOT WATER SIDE Pressure drop in bars AquaSpeed Excellence...
  • Page 10: Installation Instructions

    INSTALLATION INSTRUCTIONS INSTALLATION LOCATION Important Accessibility: The appliance must be positioned in such a way as to be easily accessible at all times. In addition, the following minimum distances around the appliance must be complied with: - Make sure that all air vents are unobstructed at all times. - Do not store any inflammable products in this room.
  • Page 11 INSTALLATION INSTRUCTIONS DIMENSIONED SKETCH OF THE APPLIANCE A = Outlet 1” Female C = Hot water 1/2” Female E = Gas 3/4” M B = Return 1” Female D = Cold water 1/2” Female Solo / AquaSpeed — Front view Solo / AquaSpeed —...
  • Page 12 INSTALLATION INSTRUCTIONS ASSEMBLY PANEL Solo / AquaSpeed — Rear view Excellence — Rear view...
  • Page 13: Installation

    Ø 80 1m straight pipe Pipe with a monitoring section 90° pipe bend 45° pipe bend Side nozzle 20.0 2000 mm Top nozzle 15.0 This table is based on the equipment offered by ACV and cannot be applied generally. prestige...
  • Page 14 INSTALLATION Options for connection to the chimney prestige prestige Upward ventilation B 23 Draught stabiliser Downward ventilation...
  • Page 15 INSTALLATION Type ACV code Vertical terminal 537D6184 540mm Horizontal terminal 537D6185 250mm L pipe 537D6186 500mm L pipe 537D6187 1,000mm L pipe 537D6188 500mm L adjustable pipe Adjustable 325 - 400 537D6189 135° pipe bend 537D6190 90° pipe bend 537D6191...
  • Page 16 Prestige Solo • Connect the sensor to clips 3 and 4 of the X3 connection pliers: The Prestige Solo can easily be combined with all the ACV tanks see the electrical diagram on page 19. using the optional kit available (ACV No.
  • Page 17: Connection To The Gas

    INSTALLATION The hot water output temperature may reach D A N G E R As soon as the pressure exceeds the safety valve setting, the valve temperatures in excess of 60°C, which can opens and discharges a small quantity of water. cause burns.
  • Page 18 For larger-capacity systems, you can add a suitable expansion vessel to the AquaSpeed, the Prestige Solo and the Prestige Excellence for the central heating. - Fill the system with fresh mains water. Contact your ACV repre- MCBA ACV 15 NTC 4 sentative about the use of inhibitors.
  • Page 19: Electrical Connection

    INSTALLATION ELECTRICAL CONNECTION - The AM 3-11 unit, available as an option, allows you to connect a second circuit. This unit is connected to socket X8 on the MCBA using the connection cable supplied. This unit has a relay to sup- - The system must be connected in accordance with national and ply the pump for the second central heating circuit, a relay to open local regulations in force.
  • Page 20: Functional Diagram

    INSTALLATION FUNCTIONAL DIAGRAM...
  • Page 21: Commissioning The System

    3, Directions for Use. - Check the boiler settings: this task can only be carried out by an ACV-trained installer or by the ACV maintenance department. Set the appliance to High Power mode by simultaneously pressing the mode and Plus keys. Check the dynamic gas...
  • Page 22 INSPECTION AND MAINTENANCE DISMANTLING THE PARTS Dismantling the burner - Remove the top cover (1) of the boiler (unscrew 9 screw in place). - Unplug the fan plugs (24V and 230V), the ignition cable, the gas valve control and the ignition electrode earth. - Loosen the 6 burner nuts using a ratchet wrench.
  • Page 23: Pilot Mode

    MCBA FOR THE SPECIALIST: INSTALLER, MAINTENANCE TECHNICIAN Once the cause of the blockage has been resolved, the burner starts PILOT MODE automatically within 150 seconds at most. Pilot mode Status Boiler function After you power down the appliance the screen displays Pilot mode, as shown in the figure above.
  • Page 24: Safety Stop (Error Mode)

    MCBA FOR THE SPECIALIST: INSTALLER, MAINTENANCE TECHNICIAN SAFETY STOP (ERROR MODE) To unlock the system: If a fault occurs while the appliance is running, the system locks and • Press RESET on the screen. the screen starts to flash. The first character is an E and the next two •...
  • Page 25 MCBA FOR THE SPECIALIST: INSTALLER, MAINTENANCE TECHNICIAN SETTING THE PARAMETERS Parameter mode To access Parameter mode when the system is in Pilot mode, press MODE once. To scroll through the list of parameters, simply press “step”. To modify a parameter value, use the + or - keys. Then press “Store”...
  • Page 26 MCBA FOR THE SPECIALIST: INSTALLER, MAINTENANCE TECHNICIAN Factory setting Display Description of parameters Solo AquaSpeed Excellence Acceleration time lag 00=Stop (min) STEP Parallel shift of the central heating temperature STEP Prestige 32 natural gas Prestige 24 natural gas Maximum number of fan revolutions in CH mode (rpm x 100) STEP...
  • Page 27 MCBA FOR THE SPECIALIST: INSTALLER, MAINTENANCE TECHNICIAN Factory setting Display Description of parameters Solo AquaSpeed Excellence CH pump over-run 0 = 10sec (step = 1 min) STEP Domestic hot water pump over-run time (step = 10.2 sec) STEP CH modulation hysteresis enabled STEP CH modulation hysteresis disabled STEP...
  • Page 28 MCBA FOR THE SPECIALIST: INSTALLER, MAINTENANCE TECHNICIAN Factory setting Display Description of parameters Solo AquaSpeed Excellence Position 1: Domestic hot water pump (1) or three-way mixer tap (2) Position 2: tank with NTC3 probe (2) STEP or tank with thermostat (3) Manual fan number of revolutions - 01 - 01...
  • Page 29: Entering The Code

    MCBA FOR THE SPECIALIST: INSTALLER, MAINTENANCE TECHNICIAN ENTERING THE CODE REQUEST FOR INFORMATION ON THE INSTALLA- TION Code mode Info mode You can access the following parameters by entering the service code: To switch from Pilot mode to Info mode, press Mode twice. •...
  • Page 30: Communication Mode (With Code)

    MCBA FOR THE SPECIALIST: INSTALLER, MAINTENANCE TECHNICIAN COMMUNICATION MODE (with code) ERROR MODE (with code) When in this mode, the system displays the communication between ERROR mode indicates the most recent error, as well as the the boiler and the control module, the optional interface kit or the optio- status of the boiler and its readings at the time this error occurred.
  • Page 31: Spare Parts

    SPARE PARTS Codes Lining Solo AquaSpeed Excellence 24 - 32 24 - 32 24 - 32 Front panel 21473410 21473410 22473411 Rear panel 22474410 22474410 22474411 Left-hand side 21472410 21472410 22472411 Right-hand side 21471410 21471410 22471411 burner energy-saving cover 21478410 21478410 21478411 MCBA - panel attachment support...
  • Page 32 SPARE PARTS Codes Parts Solo AquaSpeed 24 - 32 24 - 32 Heat exchanger 63962009 63962009 Ø 80mm flue gas pipes 497B0026 497B0026 Water pressure switch 557D3011 557D3011 3 bar Ø 1/2” safety valve 55426017 55426017 Ø 1/8” manual air vent 55445001 55445001 1”...
  • Page 33 SPARE PARTS Codes Parts Excellence 24 - 32 Heat exchanger 63962009 Ø 80mm flue gas tubes 497B0030 Ø 80 45° pipe bend 537D6227 Water pressure switch 557D3011 3 bar Ø 1/2” safety valve 55426017 Ø 1/8” manual air vent 55445001 1”...
  • Page 34 SPARE PARTS Codes Burner parts Solo / AquaSpeed Solo / AquaSpeed Excellence Excellence 24 - 32 24 - 32 24 - 32 24 - 32 Natural gas Propane Natural gas Propane Burner 237D0114 237D0117 237D0115 237D0116 537D3027 537D3027 537D3027 537D3027 Venturi 537D4034 537D4034...
  • Page 35 SPARE PARTS Codes Setting / wiring Solo AquaSpeed Excellence 24 - 32 24 - 32 24 - 32 Full electrical wiring harness + MCBA + 24V Transformer 24614125 24614125 24614131 MCBA 537D8016 537D8016 537D8016 24V transformer 547D3021 547D3021 547D3021 Wiring Screen 537D3020 537D3020...
  • Page 36: Service Record

    SERVICE RECORD INSTALLATION DETAILS Date installed: Flue gas T° : Model : % CO Efficiency : Serial number : (min. load) % CO Gas pressure : Heating system pressure setting : (max. load) Name and signature : SERVICE RECORD Date serviced : Flue gas T°...
  • Page 37 SERVICE RECORD Date serviced: Flue gas T° : Remarks : % CO Efficiency : (min. load) % CO Gas pressure : (max. load) Name and signature : Date serviced : Flue gas T° : Remarks : % CO Efficiency : (min.
  • Page 38 E-MAIL: polska.info@acv-world.com E-MAIL: sales@triangletube.com E-MAIL: ceskarepublika.info@acv-world.com PORTUGAL DEUTSCHLAND BOILERNOX LDA ACV WÄRMETECHNIK GMBH & CO KG RUA OUTEIRO DO POMAR GEWERBEGEBIET GARTENSTRASSE CASAL DO CEGO, FRACÇÃO C, D-08132 MÜLSEN OT ST. JACOB - DEUTSCHLAND PAVILHÃO 3 - MARRAZES TEL.:+49 37601 311 30...
