ACV 2004 Product Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

2004
Product
Guide
Stainless Steel Tank-in-Tank Technology

Advertisement

Table of Contents
loading

Related Manuals for ACV 2004

Summary of Contents for ACV 2004

  • Page 1 2004 Product Guide Stainless Steel Tank-in-Tank Technology...
  • Page 2 Tel: +44 (0)1383 820100 Fax: +44 (0)1383 820180 Email: information@acv-uk.com www.acv-uk.com ACV accepts no responsibility whatsoever for any inaccuracy in transcribing or printing the present document. ACV reserves the right to change the technical specifications and components of its products without prior notice.

  • Page 3: Table Of Contents

    Products Hot Water Tanks • SmartLine • • Jumbo • HRS / HRE • • HR FB / ACCU • Boilers and Water Heaters • • • • • • Delta Performance • • • • • • Delta Performance FV / MV •...

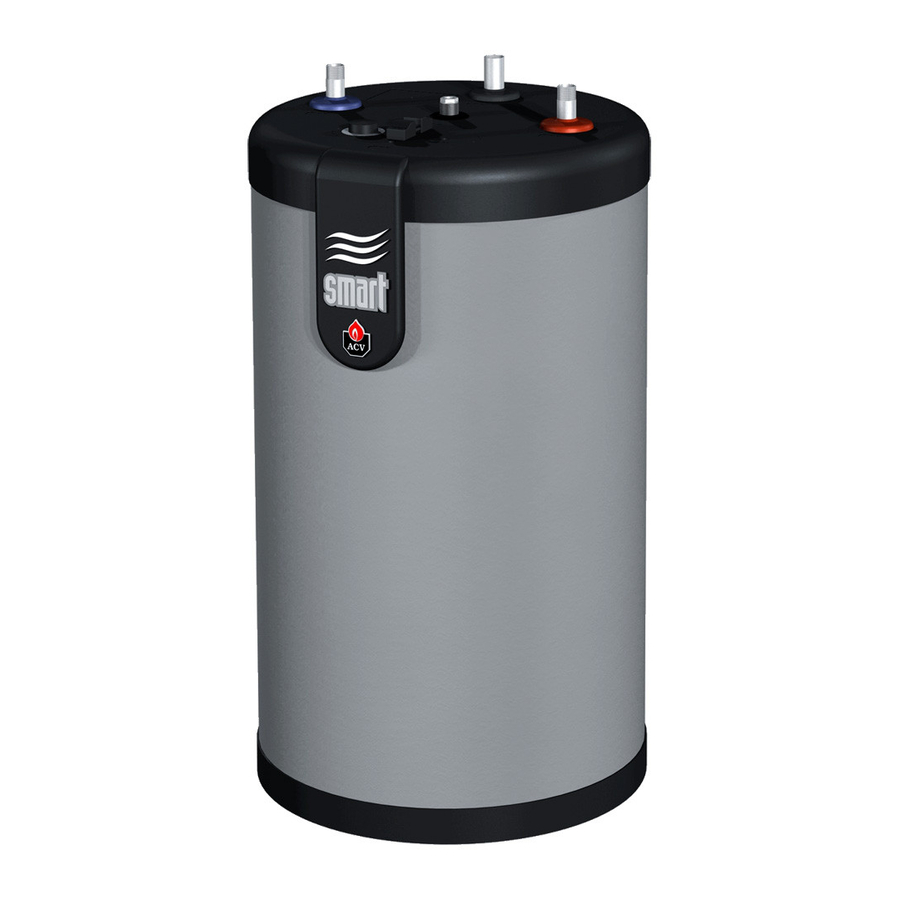

  • Page 4: Smartline

    Unvented Hot Water All SmartLine tanks can be used as unvented hot water tanks by the addition of a Mains Pressure • Utilises ACV Tank-in-Tank technology for fast heat up and rapid recovery SystemPak, containing the following components : •...

  • Page 5: Technical Specifications

    Technical Specifications Front Left Side Front Right Side SLE 130 - 240 SL 320 - 420 Maximum Operating Pressure Factory Test Pressure Maximum Operating Primary: 3 bar - SLE Primary: 4.5 bar - SLE Temperature 4 bar - SL 6.0 bar - SL 90°C Secondary: 10 bar...

  • Page 6: Product Description

    Hot Water Storage Tanks HR601 Domestic cold water inlet Thermostat pocket DHW recirculation or Primary water return temperature and connection pressure relief valve Rigid polyurethane foam connection insulation Primary air vent 10. Steel outer tank Domestic hot water 11. Stainless steel inner tank outlet 12.
  • Page 7 Technical Specifications Maximum Operating Pressure Primary: 5 bar Secondary: 10 bar Factory Test Pressure Primary: 7.5 bar Secondary: 13 bar Maximum Operating Temperature 90°C Front Right Hand Side Domestic Hot Water Performances HR 601 Code 06204401 Total capacity HR 601 Primary capacity Heating surface area 3.58...

  • Page 8: Jumbo

    Hot Water Storage Tanks 12 7 Jumbo 1. Stainless steel inner tank 8. Control thermostat 2. Steel outer tank 9. Thermometer 3. 120 mm thick mineral wool 10. Thermostat pocket insulation 11. Thermometer pocket 4. Primary water return 12. Primary air vent connection 13.
  • Page 9 Technical Specifications Front Right hand side Maximum Operating Pressure Factory Test Pressure Maximum Operating Temperature Primary: 5 bar Primary: 7.5 bar 90°C Secondary: 10 bar Secondary: 13 bar JUMBO JUMBO 1000 Code 06253901 06254001 Total capacity 1000 Primary capacity Heating surface area 4.56 Primary Pressure drop mbar...

  • Page 10: Hrs / Hre

    Hot Water Storage Tanks HRS / HRE HR S2 Removable top cover Coil connection (HRS) Control panel or auxiliary connection Stainless steel tank (HRE) Polyurethane foam 10. Coil connection (HRS) insulation or auxiliary connection Front panel (HRE) Stainless steel coil heat 11.
  • Page 11 Technical Specifications HR S1 HR S2 Maximum Operating Pressure Maximum Operating Temperature Primary: 20 bar (HRS) 90°C Secondary: 10 bar HRS1 HRS1 HRS2 HRS2 Code 06234201 06234401 06234301 06234501 07234601 07234701 Tank capacity Coil capacity Coil pressure drop mbar Primary flow rate 2000 2000 4000...

  • Page 12: Hr Fb / Accu

    Solar / Multi-Energy Tanks HR FB / ACCU HR FB ACCU 1. Stainless steel inner tank 10. Coil heat exchanger 2. Steel outer tank 11. Secondary thermostat pocket 3. Insulation : 12. Primary thermostat pocket - Rigid polyurethane foam (HR FB) HR FB - Mineral wool (Accu Tank) 13.
  • Page 13 Technical Specifications Multi-Energy Options Maximum Operating Pressure Primary: 3 bar A Primary thermal store Secondary: 10 bar B Stainless steel DHW tank Coil: 13 bar C Heat source from solid fuel boilers or heat pumps Factory Test Pressure D Coil heat exchanger Primary: 4.5 bar E Immersion heater...

  • Page 14: Svm

    SVM models, containing the following components : • SVM TripleTank system providing central heating and hot water : all the proven advantages of ACV Tank-in-Tank technology with an additional tank fed by a district heating main • Combined pressure reducing valve and strainer •...
  • Page 15 Interserve FM Ltd. Hillside Towers, Sheffield. These apartment blocks were the first in the UK to make use of the superior characteristics of the ACV SVM TripleTanks in District Heating. This Sheffield City Council financed refurbishment involved the total renovation of seven 1960’s-built blocks of flats, which involved the installation of 336 SVM 115 TripleTanks.

  • Page 16: Water Heaters

    Combined Boilers & Water Heaters Delta Performance 1. Stainless steel inner tank 11. Primary drain connection 2. Primary heating circuit 12. Top primary water flow and 3. Rigid polyurethane foam return connections insulation 13. Flue connection 4. Stove enamelled metal casing 14.
  • Page 17 Technical Specifications Maximum Operating Pressure Primary: 3 bar Secondary: 10 bar Factory Test Pressure Primary: 4.5 bar Secondary: 13 bar Maximum Operating Temperature 90°C Power Supply 230v 50Hz Code 04600001 04600101 04600201 04604301 Fuel Oil (28 sec or 35 sec) or Natural gas/LPG Burner options type Riello oil - Riello pressure jet natural gas/LPG - BG2000-S natural gas/LPG...

  • Page 18: Delta Performance Fv/Mv

    Combined Boilers & Water Heaters Delta Performance 25 2 FV/MV 1. Domestic hot water outlet 14. Primary drain connection 2. Removable top panel 15. Steel base 3. Flue collector with removable 16. Side panel 17. Oil or gas burner 4. Flue gas analysis section 18.
  • Page 19 Technical Specifications Maximum Operating Maximum Operating Pressure Temperature Primary: 3 bar 90°C Secondary: 10 bar Factory Test Pressure Power Supply Primary: 4.5 bar 230v 50Hz Secondary: 13 bar FV35 FV50 MV35 MV50 Code 01607101 01607401 02607301 02608301 Fuel 28 sec oil (kerosene) Natural gas/LPG Burner options type...

  • Page 20: Heatmaster® 30

    Combined Boilers & Water Heaters HeatMaster® 30 1. Stainless steel inner tank 7. Atmospheric natural 2. Primary heating circuit gas/LPG burner 3. Flue pipes with stainless 8. Control panel steel turbulators 9. Primary water flow connection 4. Rigid polyurethane 10. Primary water return foam insulation connection 5.
  • Page 21 Technical Specifications Maximum Operating Pressure Primary: 3 bar Secondary: 10 bar Factory Test Pressure Primary: 4.5 bar Secondary: 13 bar Maximum Operating Temperature 90°C Power Supply 230v 50Hz Domestic Hot Water Performances HM30 G HM30 GP Code 02400101 03400101 Fuel Natural Gas Burner options type Atmospheric...

  • Page 22: Heatmaster® 60

    • Fully insulated with rigid polyurethane foam • Stove enamelled casing ACV has developed this burner specially for the HeatMaster 60. • Control panel including thermostats, combined One of the BG 2000-S air/gas premix burner range, it has a metal...
  • Page 23 Technical Specifications Maximum Operating Pressure Maximum Operating Temperature Primary: 3 bar 90°C Secondary: 10 bar Power Supply Factory Test Pressure 230v 50Hz Primary: 4.5 bar Secondary: 13 bar HM60 HM60 Gas/LPG Code 04124101 04124101 Fuel Oil (28 sec or 35 sec) Natural gas/LPG Burner options type...

  • Page 24: Heatmaster® 70-100

    • Choice of burner : - Low-NOx premix gas or LPG (BG2000-S), ACV has developed these burners specially for the - Pressure jet natural gas or LPG (Riello) HeatMaster 70 and 100 models. Part of the BG 2000-S air/gas - Pressure jet 28 sec or 35 sec oil (Riello) premix burner range, they have a metal fibre (NIT) flame tube •...
  • Page 25 Technical Specifications Maximum Operating Pressure Maximum Operating Primary: 3 bar Temperature Secondary: 10 bar 90°C Power Supply Factory Test Pressure 230v 50Hz Primary: 4.5 bar Secondary: 13 bar HM70 HM70 HM100 HM100 Gas/LPG Gas/LPG Code 04604501 04604501 04604401 04604401 Fuel Oil (28 sec or 35 sec) Natural gas/LPG Oil (28 sec or 35 sec)

  • Page 26: Heatmaster® 150-200

    Combined Boilers & Water Heaters HeatMaster® 150 - 200 1. Stainless steel inner tank 7. Combustion chamber plate 2. Primary heating circuit 8. Flue connection 3. Flue pipes with stainless steel 9. Primary water flow turbulators connection 4. Rigid polyurethane foam 10.
  • Page 27 Technical Specifications Maximum Operating Pressure Maximum Operating Primary: 3 bar Temperature Secondary: 10 bar 90°C Factory Test Pressure Power Supply Primary: 4.5 bar 230v 50Hz Secondary: 13 bar HM150 HM150 HM200 HM200 Gas/LPG Gas/LPG Code 04125301 04125301 01618301 04607401 Fuel Natural gas/LPG Natural gas/LPG (28 sec or 35 sec)

  • Page 28: Heatmaster® 71-101

    Combined Boilers & Water Heaters HeatMaster® 71 - 101 1. Primary NTC sensors 1 and 2 13. Primary water return pocket connection 2. Domestic cold water inlet 14. Combustion chamber 3. Automatic primary air vent 15. Steel base 4. Flue connection 16.
  • Page 29 Technical Specifications Maximum Operating Pressure Maximum Operating Primary: 3 bar Temperature Secondary: 10 bar 90°C Factory Test Pressure Power Supply Primary: 4.5 bar 230v 50Hz Secondary: 13 bar HM71 HM101 Code 02604501 02604401 Fuel Natural gas/LPG Natural gas/LPG Burner options type BG2000-M BG2000-M...

  • Page 30: Heatmaster® 201

    Combined Boilers & Water Heaters HeatMaster® 1. Primary NTC sensors 1 and 9. Flue pipes 2 pocket 10. Rigid polyurethane foam 2. Domestic cold water inlet insulation 3. Primary drain connection 11. Stainless steel inner tank 4. Flue connection 12. Primary heating circuit 5.
  • Page 31 Technical Specifications Maximum Operating Pressure Maximum Operating Primary: 3 bar Temperature Secondary: 10 bar 90°C Factory Test Pressure Power Supply 230v 50Hz Primary: 4.5 bar Secondary: 13 bar Domestic Hot Water Performances HM201 Code 02607401 Fuel Natural gas/LPG HM201 Burner options type BG2000-M Input - heating...

  • Page 32: E-Tech S

    Electric Combined Boilers & Water Heaters E-Tech S 1. Domestic water and 7. Control thermostat pocket temperature and pressure 8. Primary water return relief valve connections connection 2. Primary water flow connection 9. Primary heating circuit 3. Expansion vessel 10. Primary safety valve 4.
  • Page 33 Technical Specifications Maximum Operating Pressure Primary: 3 bar Secondary: 10 bar Factory Test Pressure Primary: 4.5 bar Secondary: 13 bar Maximum Operating Temperature 90°C E-Tech S E-Tech S E-Tech S E-Tech S E-Tech S E-Tech S Single Phase Single Phase Single Phase Tri-Phase Single Phase Tri-Phase...
  • Page 34 Electric Boilers 1. Control panel 6. Control circuit cable 2. Stove enamelled metal entry point casing 7. Circulating pump 3. Steel boiler shell 8. Primary water flow 4. Primary water return connection connection 9. Primary expansion vessel 5. Power cable entry position 10.
  • Page 35 Technical Specifications Maximum Operating Pressure Factory Test Pressure Maximum Operating Temperature Primary: 3 bar Primary: 4.5 bar 85°C ETS 09 ETS 09 ETS 15 ETS 15 ETS 24 Single Phase Tri-Phase Single Phase Tri-Phase Tri-Phase Code 00078001 00078001 00078101 00078101 00078201 Nominal Output * 14.4...
  • Page 36 Electric Boilers 1. Control panel 6. Element supply contactors 2. Power cable entry position 7. Stove enamelled metal casing 3. Power cable connections 8. Heating elements 4. Control circuit terminals 9. Rigid polyurethane foam 5. Power stage delay timer insulation Product Description •...
  • Page 37 Technical Specifications Maximum Operating Pressure Primary: 4 bar Factory Test Pressure Primary: 6 bar Maximum Operating Temperature 90°C Rear Front Right Hand Side TER 57 TER 86 TER 115 TER 144 TER 201 TER 259 Code 00080401 00080801 00081201 00081601 00079101 00079901 Maximum output...

  • Page 38: Prestige 24-32

    Condensing Boilers Prestige 24-32 1. Stainless steel heat exchanger 7. Primary safety valve 2. Low NOx premix gas burner 8. Primary low water pressure 3. Flue connection switch 4. Heating pump 9. Hot water tank (Aquaspeed) 5. Removable front panel 10.
  • Page 39 Note : The above performances are based on a domestic cold water inlet of 10°C with the boiler at full working temperature. Heart of Stainless Steel ACV’s 80 years of experience using stainless steel in heating and hot water production have led to the development of a new heat exchanger in stainless steel which is at the heart of the Prestige 24-32.

  • Page 40: Prestige 47-64-85

    Condensing Boilers Prestige 47-64-85 1. Sectional aluminium heat 6. Primary return NTC sensor exchanger 7. Primary flow NTC sensor 2. Low NOx premix gas burner 8. Primary low water pressure 3. Burner plate switch 4. Control panel with digital 9. Gas pressure switch display 10.
  • Page 41 * 1 bend is equivalent in length to 1m of flue Domestic Hot Water Requirement? Prestige boilers can be combined with any of the ACV range of hot water storage tanks, in particular the SmartLine range of tanks, to provide full DHW capabilities. ACV hot water...

  • Page 42: Compact N

    Oil/Gas Boilers Compact N 1. Top cover 7. Oil or gas burner 2. Primary water flow and 8. Removable combustion return connections chamber plate 3. Flue connection 9. Heat exchanger 4. Primary circuit 10. Removable front panel 5. Combustion chamber 11.
  • Page 43 Technical Specifications Maximum Operating Pressure Primary: 3 bar Factory Test Pressure Primary: 4.5 bar Maximum Operating Temperature 90°C Power Supply 230v 50Hz Compact N1 Compact N2 Compact N3 Code 01130501 01130601 01130701 Fuel Oil (28 sec or 35 sec) or Natural gas/LPG Burner options Riello oil - Riello pressure jet natural gas/LPG Minimum input...

  • Page 44: Compact A

    Oil/Gas Boilers Compact A 1. Ceramic fibre insulation 6. Flue tubes with bimetallic moulded in one piece spiral turbulators overlaid on mineral 7. Primary water flow wool mattress connection 2. Combustion chamber 8. Primary water return 3. Glass wool insulation connection 4.
  • Page 45 Technical Specifications Maximum Operating Pressure Factory Test Pressure Maximum Operating Temperature Primary: 5 bar Primary: 7.5 bar 90°C CA100 CA150 CA200 Code 04120101 04120201 04120301 Fuel Oil (28 sec or 35 sec) or Natural gas/LPG Burner options Riello oil - Riello pressure jet natural gas/LPG Minimum input Maximum input Minimum output...

  • Page 46: Compact S

    Oil/Gas Boilers Compact S 1. Flame inspection port 6. Mineral wool insulation 2. Combustion chamber 7. Primary water flow plate insulation connection 3. Control panel 8. Flue connection 4. Primary water return 9. Primary circuit connection 10. Combustion chamber 5. Flue tubes and (1st pass) turbulators (3rd pass) 11.
  • Page 47 Technical Specifications Maximum Operating Pressure Primary: 5 bar Factory Test Pressure Primary: 7.5 bar Maximum Operating Temperature 90°C S180 S230 S290 S350 S410 S470 S520 S580 S640 Code 04612+ Fuel Oil (28 sec or 35 sec) or Natural gas/LPG Burner options Riello oil - Riello pressure jet natural gas/LPG Input 190.2...

  • Page 48: Concentric Flue Systems

    Concentric Flue Systems Prestige 24 - 32 Delta Performance FV/MV 35 STEEL - STAINLESS STEEL Ø 80/125 TERMINALS Code Type 537d6196 Vertical terminal 537d6173 Horizontal terminal FLUE PIPE Code Type 537d6174 Length 250 mm 537d6175 Length 500 mm 537d6176 Length 1000 mm ADJUSTABLE FLUE PIPE Code Type...
  • Page 49 Prestige 47 - 64 - 85 Delta Performance FV/MV 50 FULLY STAINLESS STEEL Ø 100/150 TERMINALS Code Type 537d6197 Vertical terminal 537d6198 Horizontal terminal FLUE PIPE Code Type 537d6199 Length 250 mm 537d6200 Length 500 mm 537d6201 Length 1000 mm ADJUSTABLE FLUE PIPE Code Type...
