ACV HeatMaster 200 Specification

HeatMaster® 200 N
• High performance water heater
• Performance:
1570 litres in 10'
4920 litres in 60'
4020 litres continuous flow
• Compatible with pressure jet
and forced draught burner
• Maximum output 141.7kW
• For greater output on gas
see page 22 (HeatMaster 201)
HeatMaster® 200 F
• High performance water heater
• Performance:
1675 litres in 10'
5976 litres in 60'
5161 litres continuous flow
• Supplied with Riello RG4S 396 T1 fuel burner
• Maximum output 180.3kW
20 High efficiency combination boilers

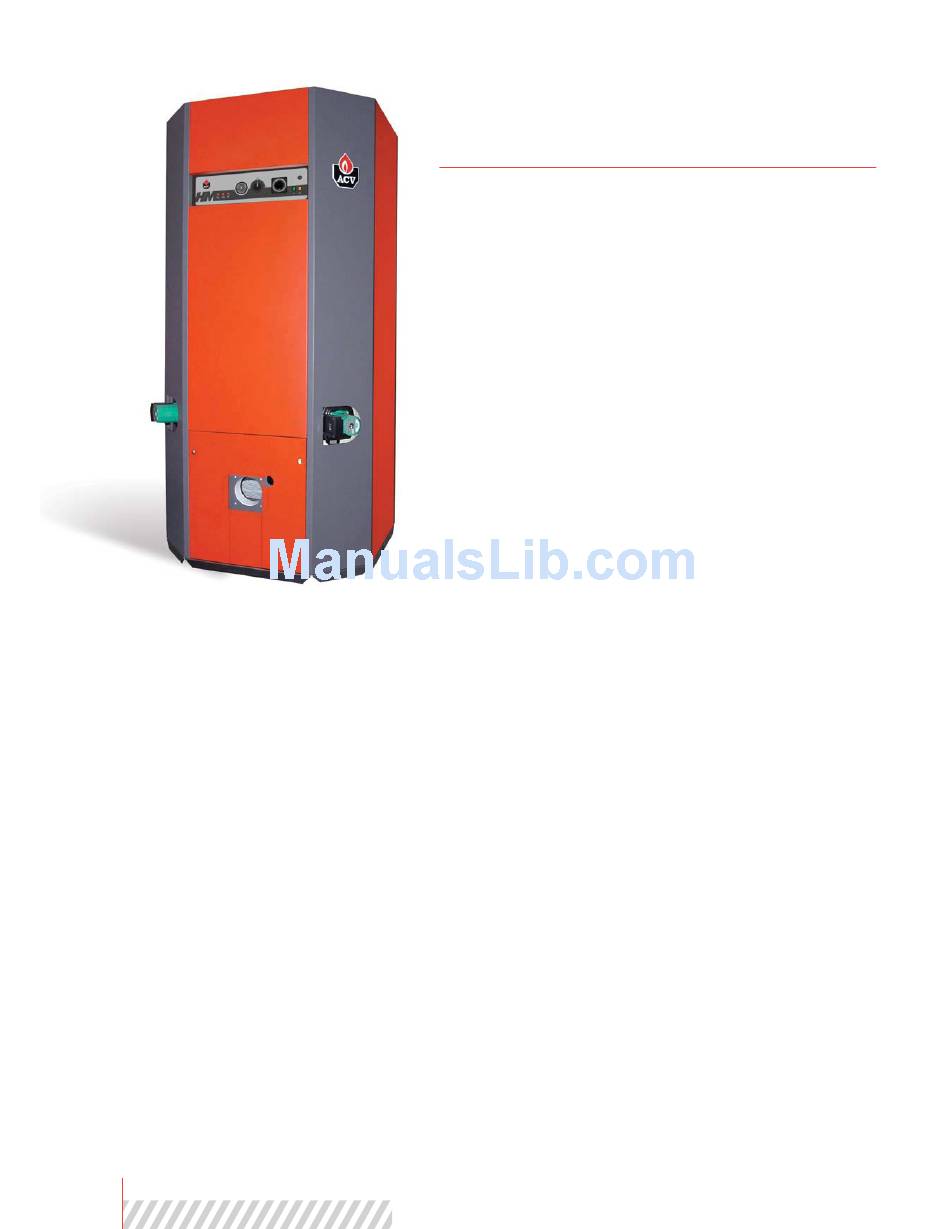

HeatMaster® 200
High performance heating and
hot water generator. Can also be
used as a stand alone hot water
generator capable of operating at
an elevated temperature.
Tank-in-Tank type exchanger/accumulator
The HeatMaster® series differs from traditional hot
water generators because of the annular tank
immersed in the primary fluid contained in the outer
body. The inner tank is itself a stainless steel heat
exchanger with a large surface area that enables the
water to be heated very quickly.
Self-descaling
The tank has freedom of movement: its walls expand
and contract with the changes in pressure thus
preventing scale forming on the walls. Finally, the cold
water injected strikes against the bottom of the tank
and carries all suspended particles into the system,
helping to prevent deposits forming in the tank.This
unique self-descaling feature ensures that the boiler
always operates with maximum efficiency.
Features
• Very high performance combined boiler and water
heater
• Stainless steel Tank-in-Tank design
• Choice of burner:
- Forced draught natural gas or LPG
- Pressure jet 35 sec oil
• Can also be used as a stand-alone water heater
• Anti-Legionellae: hot water stored at a consistently
high temperature
• Built-in primary circuit shunt pumps
• Fully insulated with very thick mineral wool
• Stove enamelled casing
• Control panel including thermostats, combined
temperature and pressure gauge, indicators and
on/off switch
• 178 kW output and up to 3348 litres of hot water at
60°C in one hour
• Vented or unvented use, with mains pressure
SystemPaks available
• Anti-stratification pumps as standard
