Installing the IP-Module
6.2

Installing IP-Module type CVVA-IP

12
Siemens Building Technologies
Fire Safety & Security Products
7. Place the camera body on the IP-Module and screw both units together using
the two screws supplied.
8. Connect the LAN cable to the RJ45 socket (7).
9. Connect the (12 V DC / 24 V AC) electrical supply (8).
Ensure correct polarity if using a 12 V DC supply, as incorrect connection may
WARNING
damage the dome camera or cause the unit to operate abnormally.
10. Establish communication with the device for the first time. See section 7:
Establishing initial communication with the device.
11. A test monitor can be connected to the BNC socket (6) when configuring the
camera.
12. Configure the dome camera as required. Refer to the dome camera manual for
set-up instructions.
13. Place the dome back on the camera and screw it in position.
Clean the dome after installation using a soft, lint-free cloth to remove dust and greasy finger marks.

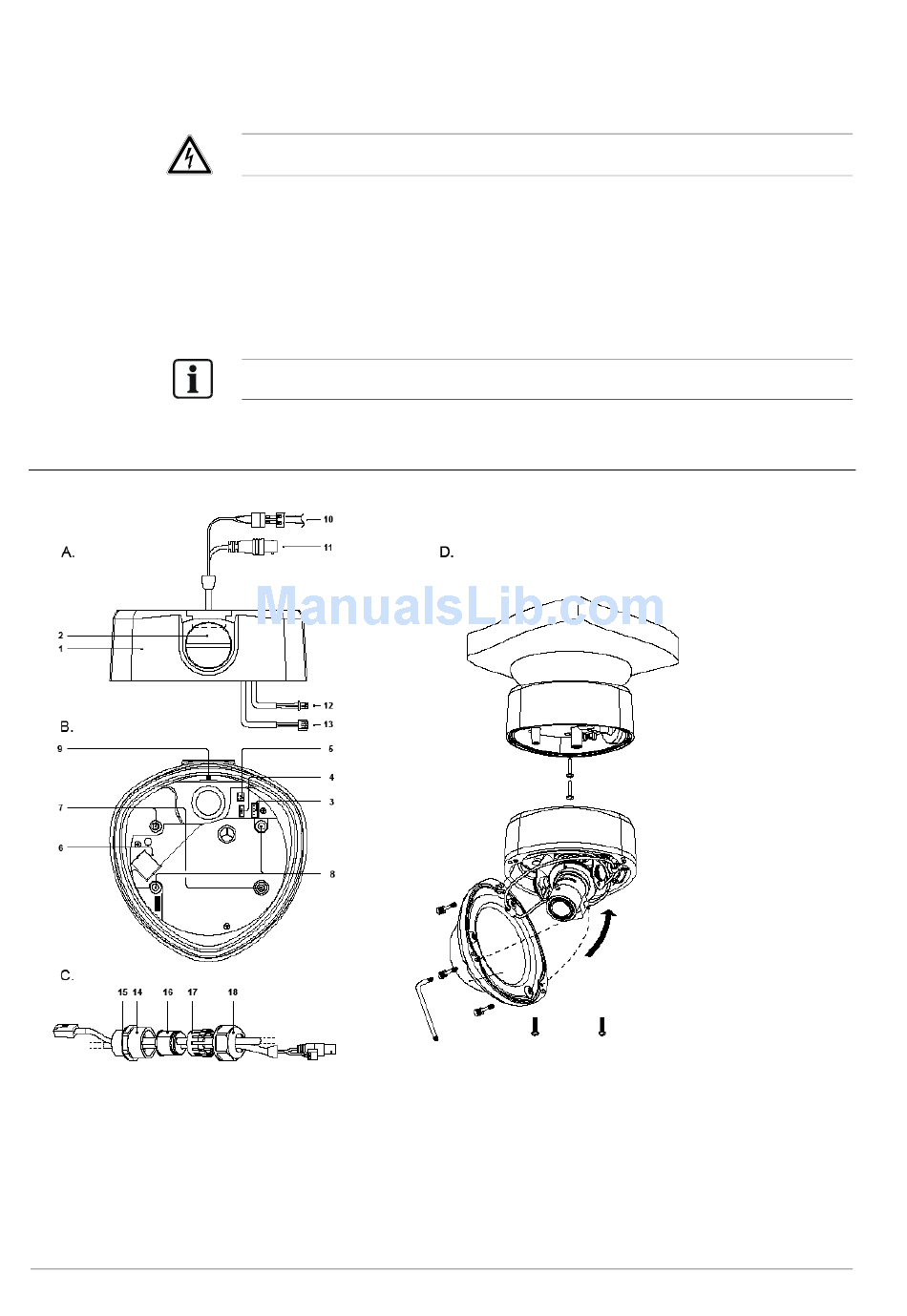

Exploded view of IP-Module CVVA-IP
Fig. 2
