6

Installing the IP-Module

6.1

Installing IP-Module type CFVA-IP

Siemens Building Technologies
Fire Safety & Security Products

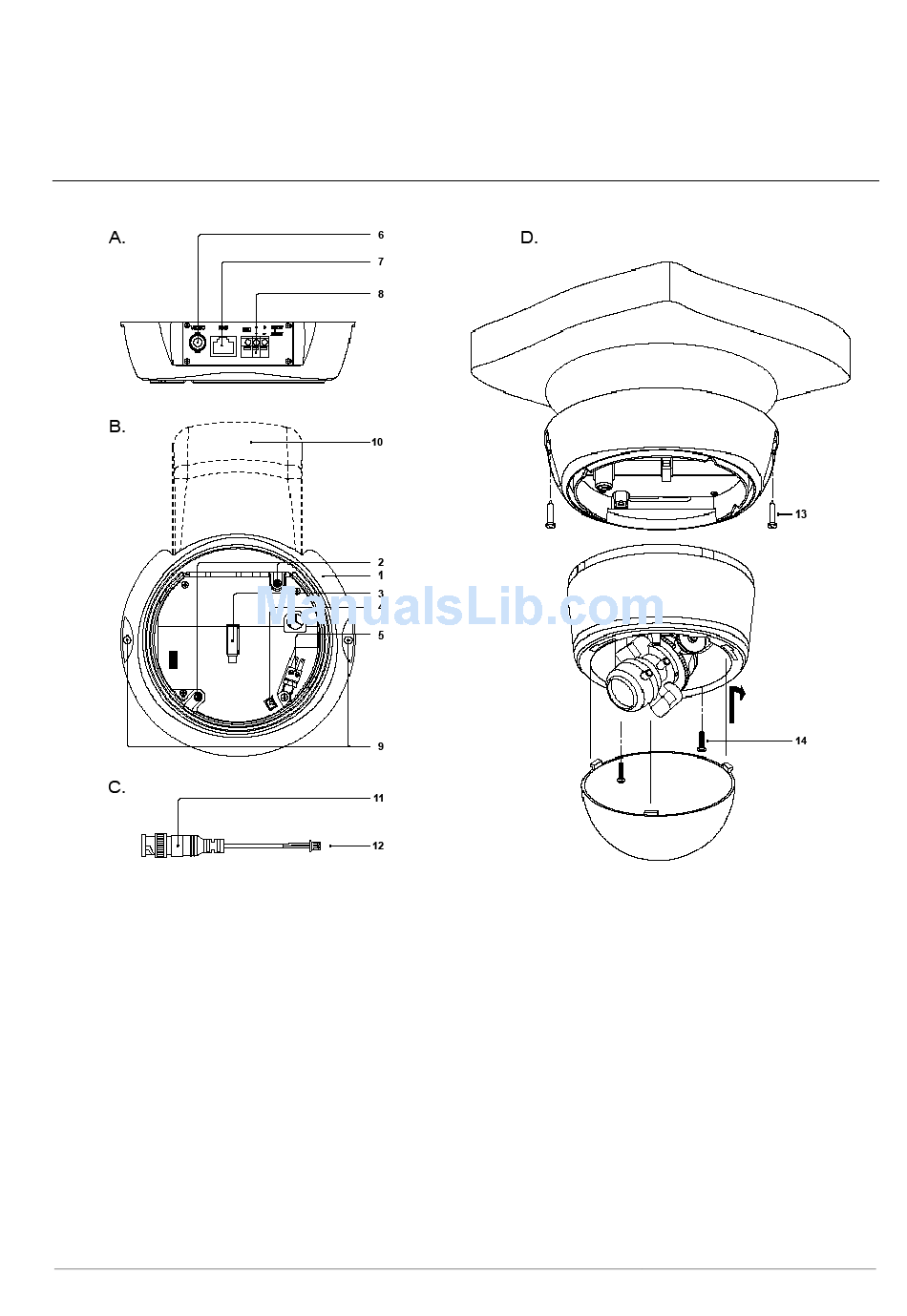

Fig. 1 Exploded view of IP-Module CFVA-IP
IP-Module fixing
1. Use the drilling template to drill two holes in the ceiling/wall and insert the wall
plugs.
2. Mount the IP-Module to the ceiling/wall.
3. Connect the BNC cable (12) to the connector socket (4) in the IP-Module.
Installation and connection of the dome camera
4. Connect the video output from the dome camera to the BNC cable video input
(11).
5. Connect the electrical supply for the dome camera to connector socket (5).
6. Remove the dome from the camera body (illustration D).
Installing the IP-Module
11
