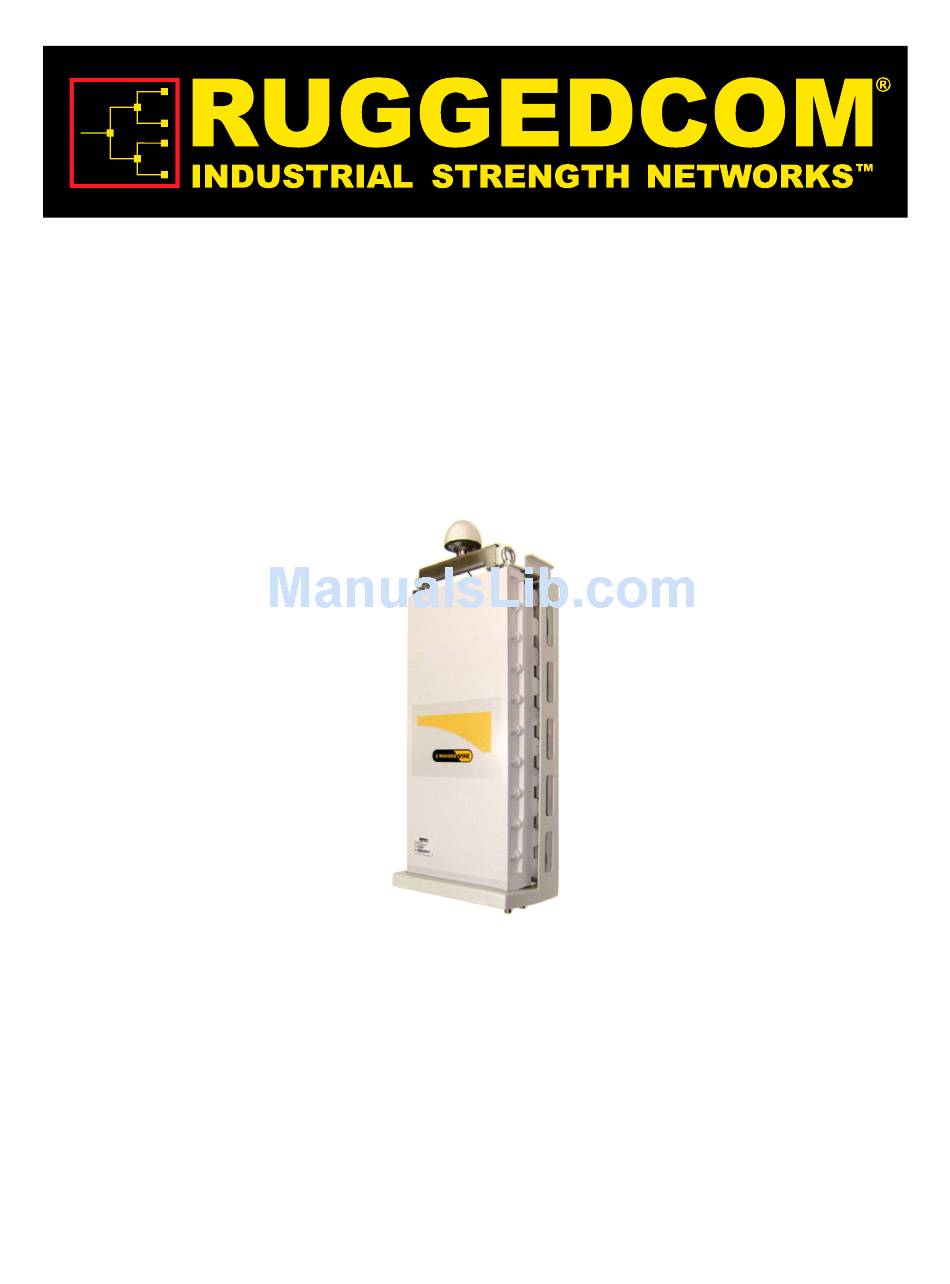

- Page 1 RuggedMAX WiN7000 Installation Guide Revision 1 - March 9, 2011 www.RuggedCom.com...
- Page 2 ROX™, RuggedRated™, eRSTP™, RuggedBackbone™, and RuggedMAX™ are trademarks of RuggedCom Inc. RuggedRouter® is a registered trademark of RuggedCom Inc. Other designations in this manual might be trademarks whose use by third parties for their own purposes would infringe the rights of the owner.
-
Page 3: Table Of Contents
A. Connector and Cable Pinouts ..................... 29 A.1. Power and Ethernet Cable Pinouts ................29 A.2. Console Cable Pinouts ..................... 30 B. WiN7000 Specifications ....................... 31 C. List of Acronyms ......................... 33 D. Warranty ..........................34 RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... - Page 4 4.2. Microsoft Windows Internet Protocol (TCP/IP) Properties dialog box ....... 27 4.3. RuggedMAX Web Interface: General Status page ............27 A.1. WiN7000 Power Cable Pinout ..................29 A.2. WiN7000 Console Connector Pinout ................30 RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1...
- Page 5 3.4. +48 VDC Power System ....................25 3.5. -48 VDC Power System ....................25 A.1. WiN7000 Power Cable Pinout ..................29 A.2. WiN7000 Console Connector Pinout ................30 C.1. List of Acronyms ......................33 RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1...
-
Page 6: Fcc Statement And Cautions
This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by RuggedCom Inc. could invalidate specifications, test results, and agency approvals, and void the user’s authority to operate the equipment. -
Page 7: Introduction
MRC and MIMO radio technologies optimizes link performance, ensuring enhanced bandwidth and service coverage. The RuggedMAX WiN7000 is a full outdoor base station, designed for easy installation and mounting on poles, street lamps, towers, or walls. The WiN7000 can be equipped with copper or fibre network interfaces for flexible integration into the operator’s backbone. -
Page 8: Capabilities And Features
• Quality of Service (QoS) management • Alarm management • Internal SNMP agent, enabling extensive In-Band (IB) management of the base station and its registered CPEs • R6 interface to ASN-GW profile C • Power requirement: 48VDC RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 9: Safety Information
See the figures below for two methods of power grounding (from the UL 60950-1 standard; according to UL 60950-22). When the unit is connected to a centralized DC Power System, the "+" side of the supply should be grounded, as per UL60950-1 and UL 60950-22 requirements. RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 10: Typical Centralized Dc Power System, Plant And Distribution Source-Grounded Dc Power System
1. Introduction Figure 1.1. Typical Centralized DC Power System, Plant and Distribution Source-Grounded DC Power System Figure 1.2. Typical Centralized DC Power System, Plant and Distribution DC Power System Grounded at Equipment Location RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 11: Equipment Installation
Refer all repairs to qualified service personnel. Removing the covers or modifying any part of this device voids its warranty. RuggedCom does not endorse or support the use of proprietary third-party outdoor cable assemblies not supplied by RuggedCom. -
Page 12: Antenna Grounding Requirements
• Falling when working at heights or with ladders • Injuries from dropping tools • Contact with AC wiring (power system connection) To reduce the risk of fire, use only 26AWG or larger telecommunication line cord. RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 13: Win7000 Physical Specifications
The WiN7000 outdoor base station is packed in a waterproof metal housing. A mounting bracket and mounting kit allows for pole or wall installation. The assembled unit weighs approximately 15kg. For information on the WiN7000 wiring connections, see Section 3.4.5, “Cable Connections”. Figure 1.3. Win7000 Dimensions RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 14: Site And Installation Requirements
GPS antenna is mounted on top of the base station, only half of the sky will be visible to the antenna. This may not be enough for proper operation. RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 15: Installation Procedures
3.3. Installation Tools • Phillips screwdriver • Wrench or socket set • Drill and 5/16" drill bit • Self-fusing electrical tape or insulating putty suitable for use in the unit’s installation environment • Hammer RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 16: Installing The Win7000
4. Lay out the connection cables. 5. Mount the power supply. 6. Mount the base station to the mounting bracket. 7. Connect all cables to the WiN7000 and seal connections with suitable electrical tape or putty. RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 17: Win7000 Mounting Bracket
3. Installation Procedures 3.4.1. WiN7000 Mounting Bracket The mounting bracket is used for both pole- and wall-mount installations. Figure 3.1. Mounting Bracket RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 18: Pole Mounting
Assemble the fastening brackets to the mounting bracket using the 5/16" × 6" hex cap screws (Item 4), NF 16 hex nuts (Item 5), 5/16" flat washers (Item 6), and 5/16" spring washers (Item RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 19: Wall Mounting
Washer flat NC 1/4" Washer spring NC 1/4" Bolt NC 1/4" Screw 5/16" hex cap × 2" Washer flat 5/16" Washer spring 5/16" Dowel 5/16" Mounting upper bracket Table 3.2. WiN7000 Wall Mount Parts List RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 20: Tower Mount
Mounting”. Ensure that the tower can hold the load of the base station. 3.4.5. Cable Connections The WiN7000 can be equipped with copper or fiber Ethernet connections. Figure 3.4. Fiber Optic Ethernet Port Option RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 21: Copper Ethernet Port Option
OFNR I/O with Optic SM Mini LC Optic 100M/1GMbit Network/Router/Switch Industrial Plug, ODVA Cable Connected to external ANT2 N type Female RG 6 or 9 antenna or omni-directional Antenna antenna Table 3.3. WiN7000 Connectors and Cables RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 22: Weatherproofing
Rubber mastic putty or duct sealing putty must also be used to complete the weatherproofing where needed. RuggedCom does not recommend silicon seal or glue. These materials are difficult to apply accurately and are difficult to remove. Do not use PVC tape. -
Page 23: Wrapping The Cable With Rubber-Splicing Or Self-Amalgamating Tape
Work mastic putty or duct sealing putty between the connector and the body of the radio or antenna. Ensure the putty fills any gaps not covered by the tape. Figure 3.9. Sealing Gaps with Putty RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 24: Power Connections
3.6. Power Connections 3.6.1. Copper and SFA Type Base Station The power system can be supplied by RuggedCom (WiNPS) or by the operator. Connect the power system DC + ETH output to the WiN cable proprietary connector (supplied by RuggedCom). -
Page 25: Sfd Type Base Station
Connect the power system DC output to the RuggedCom cable with proprietary connector (supplied by RuggedCom). Connect the other side (open end) of the RuggedCom cable to the operator’s power system (according to the labelling on the cable and the tables below. -
Page 26: Setup
Figure 4.1. Microsoft Windows Local Area Connection Properties dialog box In the Items list, select Internet Protocol (TCP/IP) and click the Properties button. The Internet Protocol (TCP/IP) Properties dialog appears. Assign your computer the IP address 192.168.100.99 and the subnet 255.255.255.0. RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 27: Microsoft Windows Internet Protocol (Tcp/Ip) Properties Dialog Box
Launch your web browser and type http://192.168.100.100 in the address field. The Login window appears. Enter your user name and password and click Log In. The RuggedMAX web interface appears. Figure 4.3. RuggedMAX Web Interface: General Status page RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 28: Troubleshooting
2. In the terminal, type showIPAddr and press Enter. The base station’s IP address will be displayed. 3. Ping the WiN7200 unit address. 4. If connectivity is still not established, contact RuggedCom customer support. 5.2. No Serial Connection If there is no serial connection when using the serial cable, perform the following: 1. -
Page 29: Connector And Cable Pinouts
The pinout of the power cable is shown below: Figure A.1. WiN7000 Power Cable Pinout Pin Number Type +TX Ethernet - TX Ethernet +RX Ethernet - RX Ethernet 48VDC (RTN) 48VDC (+) Ethernet GND Table A.1. WiN7000 Power Cable Pinout RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 30: Console Cable Pinouts
(CLI). • Cable type: 3 wire 28AWG • Cable connectors: DB9F, proprietary 3 pin console connector • Cable length: 2m • The cable is supplied by RuggedCom. Figure A.2. WiN7000 Console Connector Pinout Pin Number Type Table A.2. -
Page 31: Win7000 Specifications
• Remote Configuration via FTP Mechanical: • Dimensions [H × W × D] 756 mm × 290mm × 195 mm • Weight <15kg Power Interface: • Power supply Input 85-265VAC • Power Consumption 120W max RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... - Page 32 • EN 301 489-1 V1.8.1 Safety: • EN 60950-1 • IEC 60950-1 • EN 60950-22 Radio: • EN 302 326-2 FCC: • 47CFR Part15, Part27, Part90 Subpart B. • SRSP-301.7 Issue 2 (Industry Canada) RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1...
-
Page 33: List Of Acronyms
Local Area Network Line-of-sight MIMO Multiple-Input, Multiple-Output Network Management System NLOS Non-line-of-sight Radio Frequency WiMAX Worldwide Interoperability for Microwave Access RuggedMAX™ RuggedMAX WiMAX Product Family RuggedNMS™ RuggedMAX Network Management System Table C.1. List of Acronyms RuggedCom® RuggedMAX WiN7000 Installation Guide Rev1... -
Page 34: Warranty
Appendix D. Warranty Appendix D. Warranty RuggedCom warrants this product for a period of five (5) years from the date of purchase. This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. For warranty details, visit www.RuggedCom.com...
