RocketFish RF-ICAP14 Quick Setup Manual

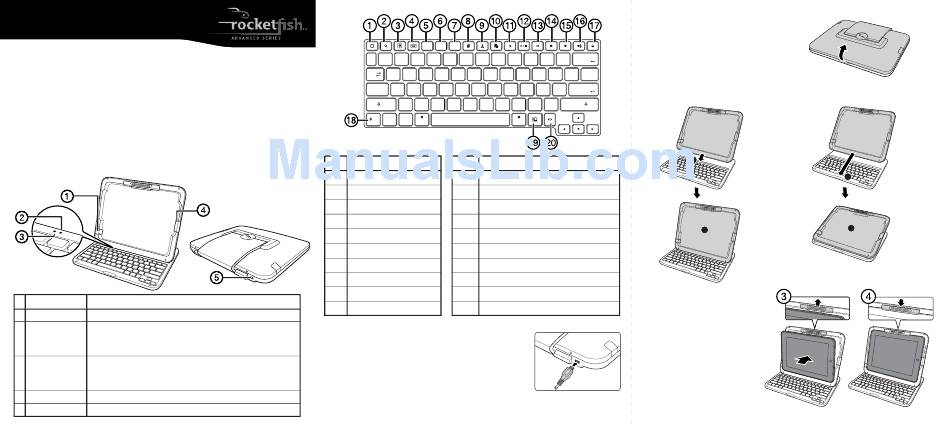

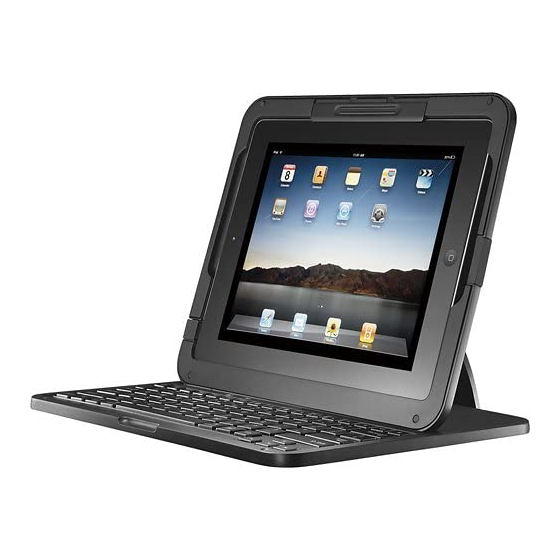

Rocketfish iPad 2 Keyboard Capsule
RF-iCAP14 I Quick Setup Guide
Package contents
• Keyboard • Ear phone jack spare cover
• USB cable • Quick Setup Guide
Features
• 82-key design, 20 hot keys for iPad 2
• Easily switch between two Bluetooth devices
• Compact design for mobility and space saving
• Working range up to 33 ft. (10 m)
• Low power consumption
• Bluetooth version 2.0
iCapsule II parts
# Component Description
1 Earphone jack Remove the rubber piece to connect the earphone to the iPad 2 earphone jack.
2 Battery LED Orange OFF: Battery full
Orange ON: Battery charging
Orange BLINKING: Battery low
3 Bluetooth Green / Blue ON (2 seconds): Power on (green and blue stand for different
connection LED paired devices)
Green and Blue BLINKING: Searching for devices (pairing)
4 30-pin connect slot Slide out the rubber piece to connect the 30 pin connector.
5 Micro USB port Connects to the computer or the power adapter to charge the iCapsule battery.
Keyboard
Select Select Select
All Left Right
&
~ ! @ # $ % ^ *
1 2 3 4 5 6 7 8
`
Q W E R T Y U
Tab
A S D F G H J
Caps Lock
Z X C V B N M
Shift
Alt
-Fn Ctrl
Option Command
# Description # Description
1 Home button 11 Previous track button
2 Search button 12 Play/Pause button
3 Photo Slide Show button 13 Next track button
4 Virtual Keyboard button 14 Mute button
5 Select All button 15 Volume down button
6 Select Left button 16 Volume up button
7 Select Right button 17 Lock button
8 Copy button 18 Bluetooth-Fn button (Works with 19 and 20 only)
9 Cut button 18+19 Switch Bluetooth device button
10 Paste button 18+20 Pairing button
First time use
When you unpack your iCapsule II, the internal battery is only
partially charged. You should charge it fully before using it.
Charge the battery
Connect your iCapsule II to a computer or the power adapter
using the USB cable (provided) to charge the internal battery.
Note: USB cable charging voltage is 4.4v ~ 6.0v. It is recommended
to use iPad 2 chargers or regular computers.
Setting up iCapsule II
1 Insert a finger into the gap, then lift to open
the top panel.
_
+
( )
Backspace
9 0 -
=
{ } |
I O P
[ ] \
2a For the Typing mode, align and
:
"
K L Enter
;
'
place the panel on the gap.
< > ?
Shift
, .
/
1
Command 2
3 Place the bottom edge of the iPad
into the bottom of the frame, push
up on the latch, then move the top
edge of the iPad into the frame.
4 Release the latch to lock the iPad 2
in place.
2b For the Stand mode, align the panel
with the front edge of the keyboard.
A
B
B
A
