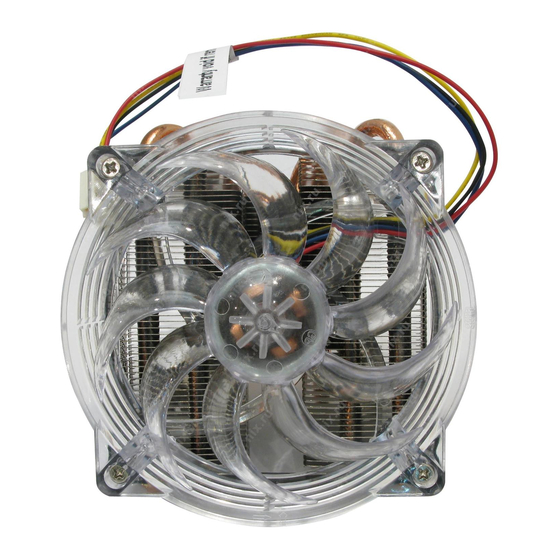

- Page 1 Universal CPU Cooler RF-UCPUCF User Guide...
-
Page 3: Table Of Contents
Specifications ... 15 One-year limited warranty ... 17 Introduction Congratulations on your purchase of a high-quality Rocketfish product. Your RF-UCPUCF represents the state of the art in universal CPU cooler design and is designed for reliable and trouble-free performance. RF-UCPUCF... -
Page 4: Features
Features • Low-profile design for HTPC (Home Theater Personal Computer) and slim-type chassis • Comprehensive cooling solution that cools the CPU and surrounding components • Universal design for Intel LGA775 and AMD AM2/754/939/940 CPU sockets • High cooling performance using 100% pure copper base, two heatpipes , aluminum fins, and multitiple air inlets •... - Page 5 Thermal grease (1) Large screws (4) LGA 775 retention plates (2) Small screws (4) Anti-vibration soft pads (4) Insulating cushions (4) Nuts (4) RF-UCPUCF...
-
Page 6: System Requirements
System requirements • Intel LGA775 processor or AMD AM2/754/939/940 processor Installing the CPU cooler Preparing to install To prepare to install: 1 Select the correct retention plate(s) for your CPU. 2 Mount the retention plate(s) to the CPU cooler. Hexagonal wrench (1) Metal plate (1) K8 retention bracket (1) - Page 7 3 Remove the protective cover from the bottom of the CPU cooler (A). 4 Apply a thin layer of thermal grease (B) onto the surface of the installed CPU. RF-UCPUCF...
- Page 8 Installing the CPU cooler on an Intel LGA775 CPU To install the CPU cooler onto an Intel LGA775 CPU: 1 Install the four large screws (C) counterclockwise into the two LGA775 retention brackets (D). 2 Attach the retention brackets to the bottom of the CPU cooler with the small screws (E), with the large screws pointing up, then insert the...
- Page 9 Caution: Exercise extreme caution so that no components are damaged when handling the system board. 5 Attach the insulating cushions (G) onto the mounting screws of the mounting brackets that project through the system board. RF-UCPUCF...
- Page 10 6 Install four nuts (H) onto the four mounting bracket screws, then tighten the nuts with the hexagonal wrench (J). 7 Go to “Connecting the fan cable” on page 13. Installing the CPU cooler on an AMD AM2/K8 (socket 745/939/940) CPU To install the CPU cooler onto an AMD AM2/K8 CPU: 1 Slide the metal plate (K) into the slot of the CPU cooler (between the aluminum...
- Page 11 2 Slide the K8 retention bracket (L) into the same slot so that it rests on the metal plate. 3 Align the CPU cooler assembly over the CPU, then gently lower the assembly onto the system board. RF-UCPUCF...
- Page 12 4 Secure the CPU cooler assembly to the mounting posts by hooking one end of the mounting bracket (the end without the tightening cam) over the outboard mounting post (the one toward the edge of the system board). 5 Hook the other end of the mounting bracket (the one with the tightening cam) over the inboard mounting post, then press the cam tightener in toward...
-
Page 13: Faq
Q: Can I replace the original cooler with another 92 mm fan for better air flow? A: Yes. Q: What is the air flow output from the cooler? A: 51.08 MCF Q: Can the CPU cooler support AMD black package 5000? A: Yes. 3-pin fan connector RF-UCPUCF... - Page 14 Q: What is the “dB” when the cooler is spinning at full speed? A: 35 dB...
-
Page 15: Specifications
Copper base/2 heatpipes/aluminum fins 3.62 × 3.62 × 2.5 inches (9.2 × 9.2 × 2.5 cm) 800~2200 rpm Long-life sleeve 40,000 hours 18 dBA~35 dBA 4-pin 10.86 ounces (307.81 g) 12 V PWM mode UL Certificate (file no. E189887) RF-UCPUCF... -
Page 17: One-Year Limited Warranty
One-year limited warranty Rocketfish Products (“Rocketfish”) warrants to you, the original purchaser of this new RF-UCPUCF (“Product”), that the Product shall be free of defects in the original manufacture of the material or workmanship for one (1) year from the purchase of the Product (“Warranty Period”). - Page 18 Products and parts replaced under this warranty become the property of Rocketfish and are not returned to you. If service of Products and parts are required after the Warranty Period expires, you must pay all labor and parts charges.
- Page 19 • Connection to an incorrect voltage supply • Attempted repair by anyone other than a facility authorized by Rocketfish to service the Product • Products sold as is or with all faults • Consumables, such as fuses or batteries •...
- Page 20 REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. ROCKETFISH SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS.
- Page 21 7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645 © 2008 Best Buy Enterprise Services, Inc. All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.
- Page 23 RF-UCPUCF...
- Page 24 Distributed by Best Buy Purchasing, LLC 7601 Penn Avenue South, Richfield, MN 55423-3645 USA © 2008 Best Buy Enterprise Services, Inc. All rights reserved. ROCKETFISH is a trademark of Best Buy Enterprise Services, Inc. All other products and brand names are trademarks of their respective owners.
