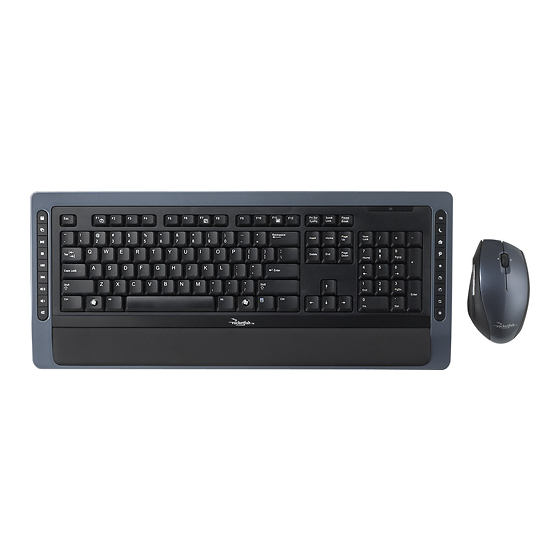

RocketFish RF-RCMBO2 User Manual
2.4 ghz wireless combo
Hide thumbs
Also See for RF-RCMBO2:
- Guide utilisateur (27 pages) ,
- Guía del usuario (27 pages) ,
- Quick setup manual (1 page)
Subscribe to Our Youtube Channel
Related Manuals for RocketFish RF-RCMBO2
Summary of Contents for RocketFish RF-RCMBO2
- Page 1 FINAL FOR PRINT RF-RCMBO2_10-1280_MAN_V1_English.fm Page 1 Wednesday, December 15, 2010 9:02 AM 2.4 GHz Wireless Combo RF-RCMBO2 User Guide...
-
Page 2: Table Of Contents
RF-RCMBO2_10-1280_MAN_V1_English.fm Page 2 Wednesday, December 15, 2010 8:59 AM 2.4 GHz Wireless Combo Contents Important safety instructions ........3 Introduction ..............4 Features................4 Package contents ..........5 System requirements ........... 5 Keyboard top ............5 Keyboard status LED..........7 Keyboard bottom .......... -
Page 3: Important Safety Instructions
Batteries should not be exposed to excessive heat such as sunshine, fire, or the like. : Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. RF-RCMBO2... -
Page 4: Introduction
RF-RCMBO2_10-1280_MAN_V1_English.fm Page 4 Wednesday, December 15, 2010 8:59 AM Introduction Congratulations on your purchase of a Rocketfish 2.4 GHz Wireless Combo. This guide explains how to correctly operate and get the best performance from your wireless keyboard and mouse. Read this user guide carefully before using your product, then keep it next to your computer for quick reference. -
Page 5: Package Contents
< > Shift Shift PgDn Enter Ctrl Ctrl Icon Description Calculator button. Press to open the open the calculator. Application Switch button. Press to switch between open programs. Play/Pause button. Press to start or pause CD or DVD playback. RF-RCMBO2... - Page 6 RF-RCMBO2_10-1280_MAN_V1_English.fm Page 6 Wednesday, December 15, 2010 8:59 AM Icon Description Stop button. Press to stop CD or DVD playback. Previous track button. Press to go to the previous track on a CD or previous chapter on a DVD. Next track button. Press to go to the next track on a CD or next chapter on a DVD. Increase volume button.
-
Page 7: Keyboard Status Led
The battery level is low. Flashing red The keyboard is pairing. Flashing green Keyboard bottom CONN EC T OF F Item Description CONNECT button Press to put the keyboard in pre-pairing mode. OFF ON switch Slide to turn the keyboard on or off. RF-RCMBO2... -
Page 8: Mouse Top
RF-RCMBO2_10-1280_MAN_V1_English.fm Page 8 Wednesday, December 15, 2010 8:59 AM Mouse top Item Description Left button Press to perform left-button actions like selecting items or opening programs. Forward button Press to go to the next page in a Web browser. Back button Press to go to the previous page in a Web browser. -
Page 9: Mouse Bottom
Detects the mouse movements and sends signals to the computer to move the mouse pointer on the screen. CONNECT button Press to put the mouse in pre-pairing mode. OFF ON switch Slide to turn the mouse on or off. Battery compartment Provides storage for the batteries and receiver. RF-RCMBO2... -
Page 10: Setting Up The Keyboard And Mouse
RF-RCMBO2_10-1280_MAN_V1_English.fm Page 10 Wednesday, December 15, 2010 8:59 AM Setting up the keyboard and mouse Installing keyboard batteries To install keyboard batteries: Remove the battery compartment cover. Insert two AA batteries into the battery compartment. Make sure that the + and – symbols on the batteries align with the + and – symbols in the battery compartment. -
Page 11: Installing The Mouse Batteries
Press the tab to release the battery compartment cover, then remove the cover. Insert two AA batteries into the battery compartment. Make sure that the + and – symbols on the batteries align with the + and – symbols in the battery compartment. RF-RCMBO2... - Page 12 RF-RCMBO2_10-1280_MAN_V1_English.fm Page 12 Wednesday, December 15, 2010 8:59 AM Replace the battery compartment cover.
-
Page 13: Setting Up The Keyboard And Mouse
Slide the power switch of the mouse to ON, to turn the mouse on. Slide the power switch of the keyboard to ON, to turn the keyboard on. The computer recognizes the keyboard and mouse automatically. The keyboard and mouse are ready to use. RF-RCMBO2... - Page 14 The installation program should start automatically. If it does not start automatically, open Windows Explorer, browse to the CD, then double- click autorun.exe. The Rocketfish Wireless combo screen opens. Click Install Combo Driver. The Welcome screen opens. Click Next. The Start installation screen opens.
- Page 15 Button Function Left button Primary mouse button Right button Context menu Wheel button Quick/Auto scroll Button A Forward Button B Back Click other tabs to make more adjustments, or click OK to save your selections and close the program. RF-RCMBO2...
- Page 16 RF-RCMBO2_10-1280_MAN_V1_English.fm Page 16 Wednesday, December 15, 2010 8:59 AM Adjusting the double-click speed To adjust the double-click speed: To adjust double-click speed, drag the slider. To test the click speed, double-click the Test Area icon. To restore to default settings, click Reset to Default Value. Click other tabs to make more adjustments, or click OK to save your selections and close the program.
- Page 17 To adjust the horizontal scrolling speed, drag the slider. To restore to default scrolling speed, click Use Default. To reverse scrolling direction, click Reverse Scrolling Direction. Click other tabs to make more adjustments, or click OK to save your selections and close the program. RF-RCMBO2...
- Page 18 RF-RCMBO2_10-1280_MAN_V1_English.fm Page 18 Wednesday, December 15, 2010 8:59 AM Adjusting pointer behavior To adjust pointer behavior: Click the pointer options. You can select: • Pointer Wrap—The pointer goes to the opposite side of the screen when it reaches the screen edge. •...
- Page 19 To uninstall the combo driver: Click Start, All Programs, Rocketfish 2.4G Wireless Combo, then click Uninstall Rocketfish 2.4G Wireless Combo Driver. A message asks if you are sure you want to uninstall the driver. Click Yes to continue. The Remove Programs From Your Computer screen opens and displays the progress.
-
Page 20: Troubleshooting
Also, do not use the mouse on a reflective surface such as metal, glass, or polished wood. • For further assistance with any other questions you may have, contact Rocketfish at 1-800-620-2790 for technical support. -
Page 21: Specifications
Operating temperature -40ºF to 140ºF (-40ºC to 60ºC) Storage temperature 90% RH or less Operating humidity 95% RH or less Storage humidity AA x 2 AA x 2 Battery EMI, ESD, RS, EFT, FCC, IC, WHQL Regulations and certifications RF-RCMBO2... -
Page 22: Legal Notices
RF-RCMBO2_10-1280_MAN_V1_English.fm Page 22 Wednesday, December 15, 2010 8:59 AM Legal notices FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 23 2) this device must accept any interference, including interference that may cause undesired operation of the device. This Category II radio communication device complies with Industry Canada Standard RSS-310; RF Output Power Max 0dB RF carrier frequency 2.402G ~2.479G HZ RF-RCMBO2...
- Page 24 RF-RCMBO2_10-1280_MAN_V1_English.fm Page 24 Wednesday, December 15, 2010 8:59 AM...
- Page 25 Product is determined to be defective by an authorized Rocketfish repair center or store personnel, Rocketfish will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Rocketfish and are not returned to you.
- Page 26 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage supply • Attempted repair by anyone other than a facility authorized by Rocketfish to service the Product • Products sold as is or with all faults •...
- Page 27 RF-RCMBO2_10-1280_MAN_V1_English.fm Page 27 Wednesday, December 15, 2010 8:59 AM RF-RCMBO2...
- Page 28 Distributed by Best Buy Purchasing, LLC 7601 Penn Avenue South, Richfield, MN 55423-3645 USA © 2010 BBY Solutions, Inc. All rights reserved. ROCKETFISH is a trademark of BBY Solutions, Inc. All other products and brand names are trademarks of their respective owners. 10-1280...
