- Page 1 MediaConverter Series Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
FCC Radio Frequency Interference Statement MediaConverter/1 and /4 This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Warranty
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 4: Table Of Contents
About the Modular Media Converters ..............1 About McPIMs ....................1 About McLIMs ....................2 About McGigabit....................2 Configuring Media Conversion Modules.............2 LinkLoss, FiberAlert and Link Fault Pass-Through..........6 Installing Media Conversion Modules ...............11 LED Operation....................12 Installation Troubleshooting ................15 Specifications ....................17 IMC Networks Technical Support..............17 Electrostatic Discharge Precautions..............18 Safety Certifications..................19... -
Page 5: About The Modular Media Converters

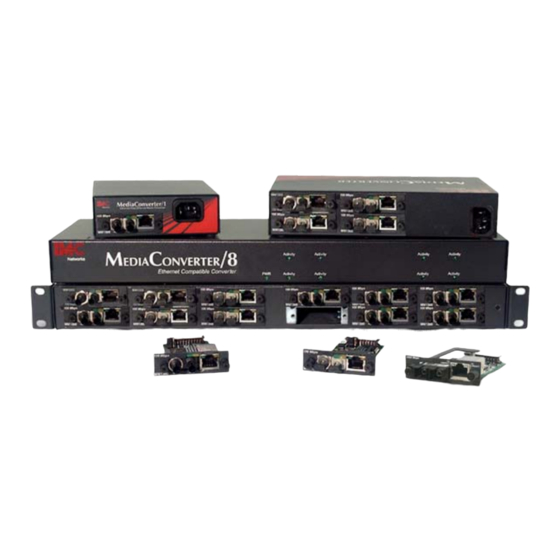

About the Modular Media Converters The Modular Media Converter Series includes modules that convert copper to single- mode or multi-mode fiber at Ethernet, Fast Ethernet and Gigabit speeds. Modular Media Converter series chassis provide power to media converter modules, and are available with one, four, eight or twelve slots for installing any combination of McPIMs (10Mbps Ethernet), McLIMs (100 Mbps Fast Ethernet), McLIM TP-TX/FX (Switching 10/100 Mbps) and McGigabit modules (1.25 Gbps Ethernet). -
Page 6: About Mclims
About McLIMs McLIMs (Media Converter Link Interface Modules) are 100 Mbps Fast Ethernet modules which provide a single-conversion between 100Base-TX twisted pair and 100Base-FX (McLIM TX/FX) or 100Base-SX (McLIM TX/SX) fiber and support Half or Full-Duplex. McLIM TP-TX/FX is an Auto Negotiating, switching media converter which offers plug-and-play operation to convert 10 Mbps or 100 Mbps, Half-or-Full-Duplex twisted pair to 100Base-FX, Full-Duplex fiber. - Page 7 Board Diagrams and Jumper/Switch Settings NOTE To determine which board diagram matches the module (-20, -30, -40, -50, etc.), compare the jumper locations with the diagrams found above. 10/100 Switching modules and Gigabit modules sets do not require any configuration and are not shown above.
- Page 8 Media Converter Jumper/DIP Switch Configuration Table Jumper Factory Module/Board Feature ON (pins) Position (pins) Default McPIM TP/FO (-20) TP Dist. (100+ M) one or none Both Shielded Cable both one or FO LinkLoss none FiberAlert McPIM TP/FO (-40) FiberAlert FO LinkLoss TP Dist.
- Page 9 Twisted Pair Crossover/Straight-Through Connections Whether using crossover or straight-through CAT5 twisted pair cabling, all Switching Modules will support both types of connections by one of the following methods: AutoCross McLIM TX/FX (-00) and McGigabit include AutoCross, a feature that automatically selects between a crossover workstation or straight-through connection depending on the connected device.
-
Page 10: Linkloss, Fiberalert And Link Fault Pass-Through
LinkLoss, FiberAlert and Link Fault Pass-Through McPIM TP/FO and McLIM TX/FX and TX/SX include the following features: • FO/FX LinkLoss (a.k.a. "Fiber LinkLoss" or "LinkLoss") • TP/TX LinkLoss (a.k.a. "Twisted Pair LinkLoss” or "Reverse LinkLoss”) • FiberAlert and Pulsing FiberAlert FiberAlert and LinkLoss are advanced troubleshooting features that can help you locate "silent failures"... - Page 11 The appropriate “LNK” (link) LED is lit to indicate this. The IMC Networks media converter also sends out link pulses from its copper and fiber transmitters, but normally has no way of knowing whether the cable to the other device is intact and the link pulses are reaching the other end.
-
Page 12: Link Fault Pass Through
FiberAlert minimizes the problems associated with the loss of one strand of fiber. If a strand is unavailable, the IMC Networks device at the receiver end notes the loss of link. The device will then stop transmitting data and the link signal until a signal or link pulse is received. - Page 13 Pulsing FiberAlert Pulsing FiberAlert minimizes the problems associated with the loss of one strand of fiber. If a strand is unavailable, the device at the receiver end notes the loss of link. The device will stop transmitting data and start sending link pulses. Until a valid link is received, the fiber link LED will be OFF on the device on the receiver side of the fiber strand with the fault while the fiber Link LED on the other unit will blink.
- Page 14 Auto Negotiation The following chart states the availability of the Auto Negotiation feature on media conversion modules. Auto Negotiation Product Comparison 10 Mbps Modules Auto Negotiation Not Available 100 Mbps Modules Auto Negotiation DIP Switch Selectable 10/100 Mbps Modules Auto Negotiation Always Enabled Auto Negotiation on 100 Mbps Modules When Auto Negotiation is enabled, the media converter negotiates as a 100 Mbps...
-
Page 15: Installing Media Conversion Modules
Since single-strand fiber products use optics that transmit and receive on two different wavelengths, the single-strand fiber products must be deployed in pairs, or connect two compatible IMC Networks single-strand fiber products. For example, connect Compact Media Converter, TX/SSFX-SM1310-SC (which has 1310 xmt and 1550 rcv) to a product which has 1550 xmt and 1310 rcv, e.g. -
Page 16: Led Operation
Power Supply Installation When installing a redundant power supply module into a powered-on 12-Slot chassis, IMC Networks recommends setting the ON/OFF switch on the module (if present) to OFF. After installing the power supply, turn its switch ON. If the redundant power supply module does NOT have an ON/OFF switch, IMC Networks recommends powering-down the chassis before installing the power supply. - Page 17 LEDs on McPIM TP/FO (-10) The LED functions on McPIM TP/FO (-10) are as follows: FO LINK/ACT Glows green when link is established on the FO port; blinks green when activity is detected on the port. TP LINK/ACT Glows amber when link is established on the TP port; blinks amber when activity is detected on the port.
- Page 18 LEDs on McGigabit and McLIM TX/FX and TX/SX (-00, -10, 20, 30) The LED functions on McGigabit and McLIM TX/FX and TX/SX Modules are as follows: FX LINK/ACT Glows green when link is established on the FX port; blinks green when activity is detected on the port. TX LINK/ACT Glows amber when link is established on the TX port;...
-
Page 19: Installation Troubleshooting
Use caution when conducting a loopback test; it is possible to create a network loop if connecting the twisted pair port to an active network switch. IMC Networks recommends connecting the twisted pair cable to a PC for this type of test. - Page 20 Rackmount Instructions Elevated If installed in a closed or multi-unit rack assembly, the operating Operating ambient temperature of the rack environment may be greater than Ambient room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
-
Page 21: Specifications
(4.4 x 44.2 x 12.8 cm) H=1.7” W= 19” D=9” (4.4 x 48.3 x 22.9 cm) MediaConverter/12 IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web:... -
Page 22: Electrostatic Discharge Precautions
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 23: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 24 © 2010 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. MediaConverter Series is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
