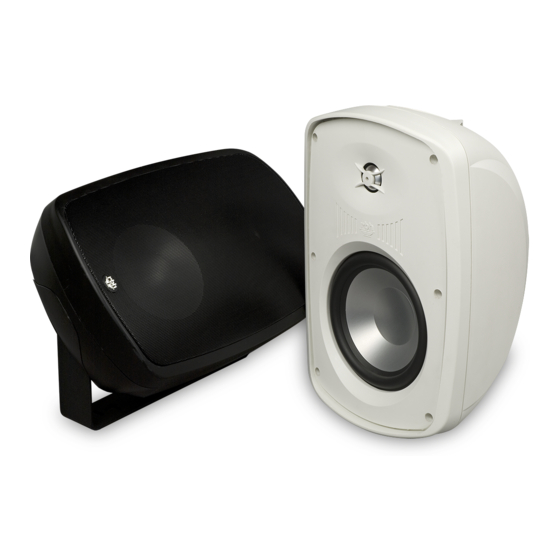

Summary of Contents for RBH Sound A-5AW

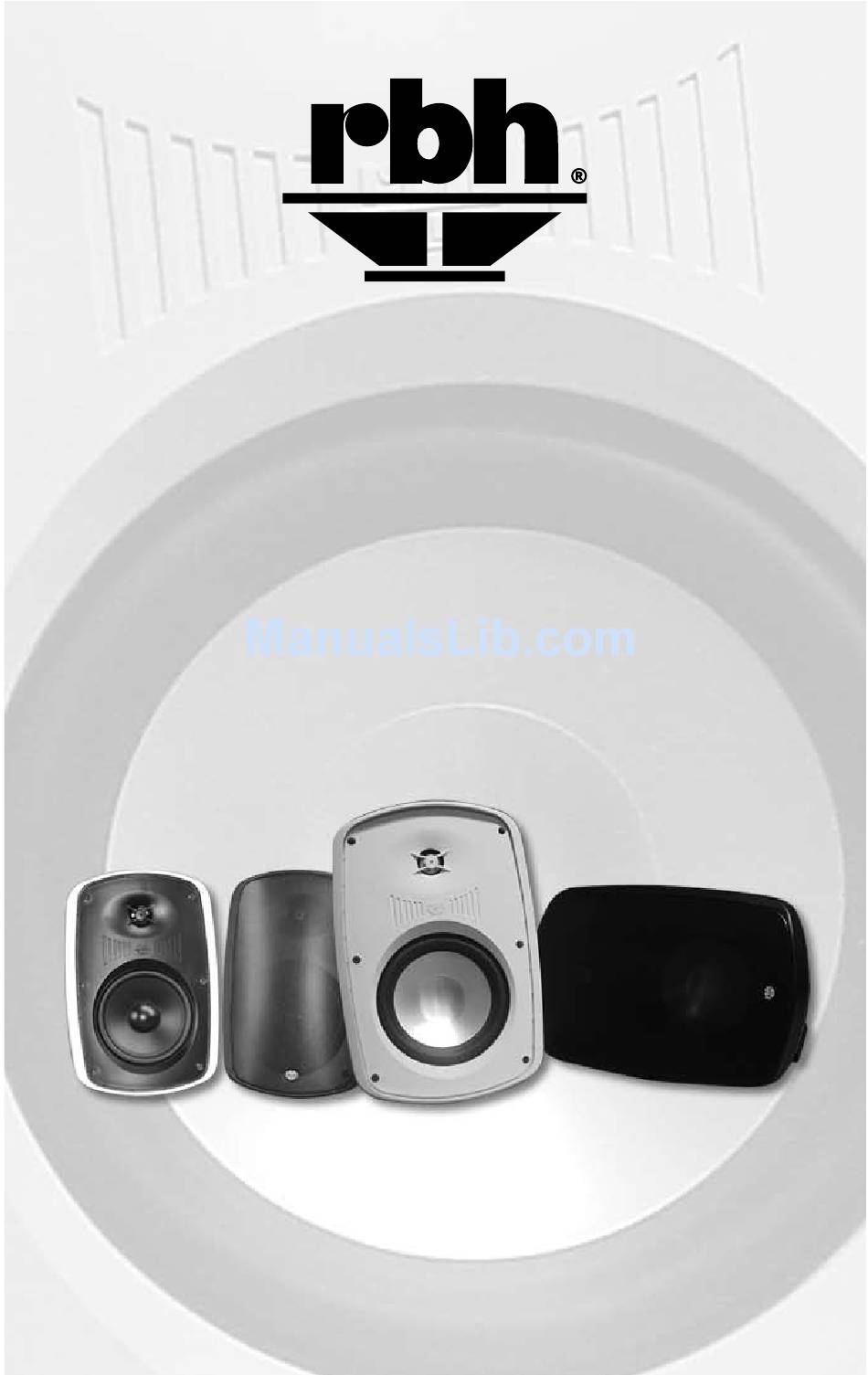

- Page 1 MC-6AW / A-5AW Two-way Indoor/Outdoor Speakers Installation and Operation Manual...
-
Page 2: Parts Guide
Introduction Congratulations on your purchase of RBH Sound MC-6AW or A-5AW indoor/outdoor speakers! These speakers are the result of many years of research and development dedicated to producing high quality products for home audio and audio/video systems. This manual contains features, setup recommendations and specifications for the RBH Sound MC-6AW and A-5AW indoor/outdoor speakers. -
Page 3: Break-In Period
For high frequencies, the MC-6AW uses a 1-inch high performance aluminum dome tweeter and the A-5AW features a high quality mylar dome tweeter. Both tweeters use liquid cooling to allow greater power handling. For midrange and bass reproduction the MC-6AW uses a 6½-inch high- end Aluminum cone woofer while the A-5AW uses a 5¼-inch PolyGraphite cone woofer. -
Page 4: Installation
Speaker Placement Installation The bracket has the ability to be mounted a variety of different ways. It may be mounted with either nails or screws, horizontally or vertically. There is a hole in the center of the bracket to allow speaker wire through so it may be properly attached to the speaker. The cabinet back has a female M6x1.0mm thread for an optional swivel bracket mount. -
Page 5: Operation
Installation (continued) 5. Use the bracket knobs to attach the speaker to the bracket, being careful to not tighten the knobs until the desired location is attained; this will allow the speaker to be angled slightly so the rear binding posts are accessible. 6. -
Page 6: Troubleshooting
Speakers are wired out Check entire system for imaging of phase. proper polarity and make adjustments as necessary Specifications Model: MC-6AW A-5AW Woofers: 6½-inch (165mm) Aluminum 5¼-inch (133mm) PolyGraphite Cone Cone Tweeters: 1” (25mm) Aluminum Dome 1” (25mm) Mylar Dome... -
Page 7: Warranty
Warranty Your RBH Sound MC-6AW or A-5AW indoor/outdoor speaker is covered by a limited warranty against defects in materials and workmanship for a period of 5 (five) years from the original date of purchase. This warranty is provided by the authorized RBH Sound dealer where the speakers were purchased. - Page 8 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.rbhsound.com It is RBH Sound policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2008-2009 RBH Sound. All Rights Reserved.
