Component Video Connections: If you have a DVD player or DTV decoder with
a component (YPbPr) output, connect it to INPUT 3 or INPUT 4 of the PD520 as
shown in Figure 3-3.
INPUT4
INPUT3

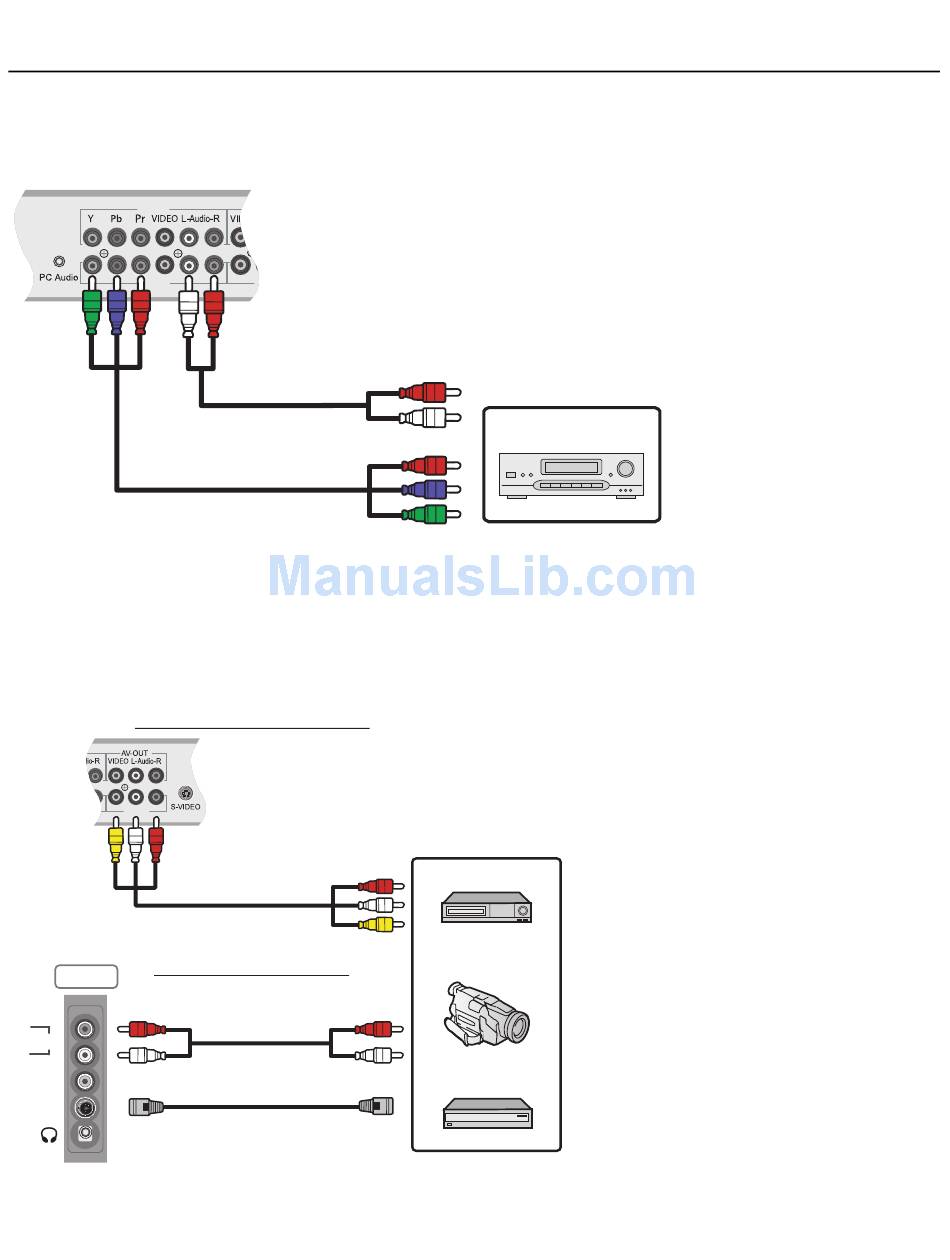

Figure 3-3. Component Video Connections
Composite/S-Video Connections: The PD520 has two (2) S-Video and four (4)
composite video inputs for connecting a VCR, camcorder, laser disc player or
DVD player; see Figure 3-4.
Composite Video (INPUT 1, INPUT 2,
INPUT 3 or INPUT 4)
INPUT1
S-Video (INPUT 1 or INPUT 2)
INPUT2
R
Audio
L
VIDEO
S-VIDEO
Figure 3-4. Composite and S-Video Connections
Planar PD520 Owner's Operating Manual
Audio Cable
Video Cable
DVD/DTV STB
VCR
Camcorder
Video Game Device
