PS7050/PS7050T and
PS8250/PS8250T
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS7050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planar PS7050

Summary of Contents for Planar PS7050

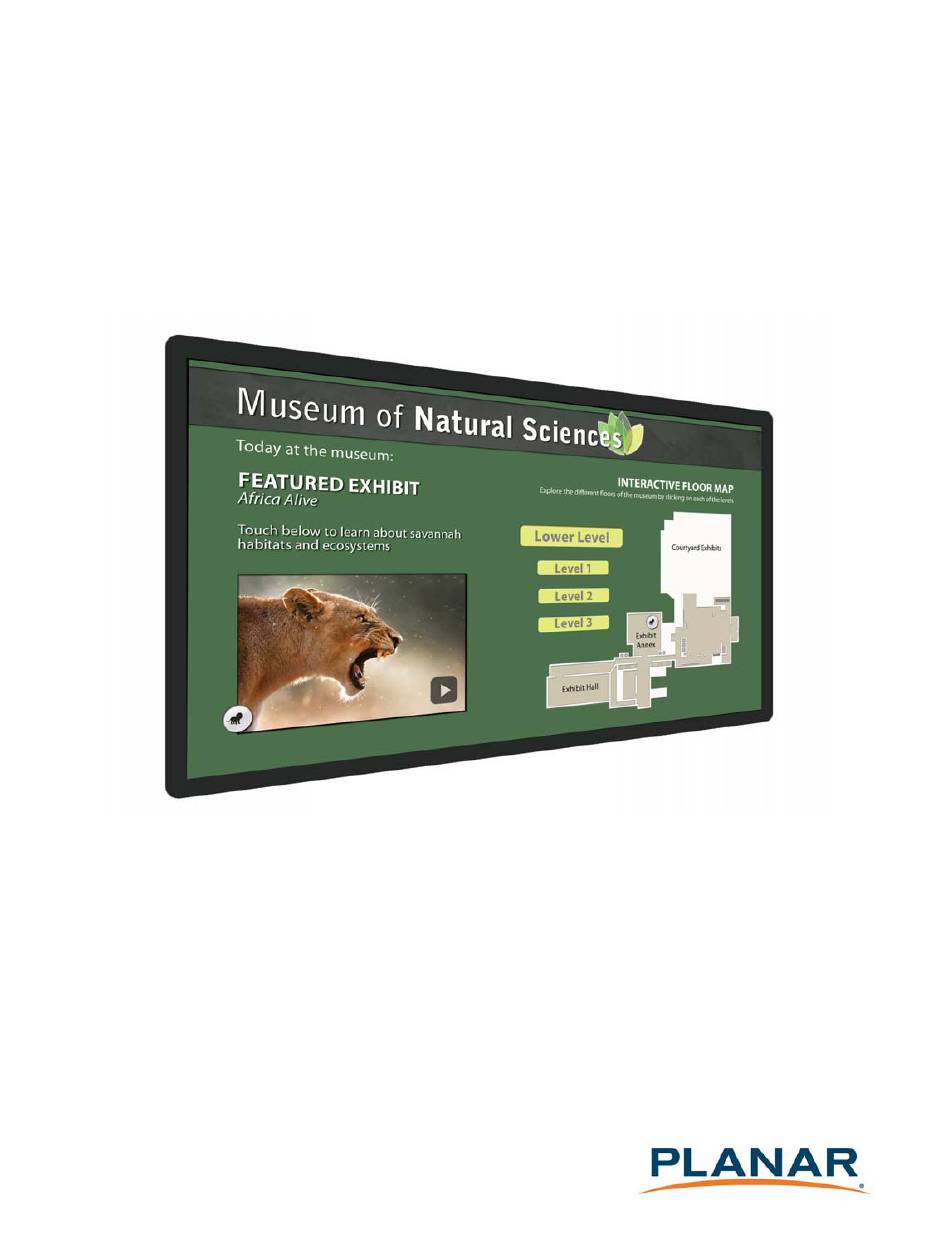

  • Page 1 PS7050/PS7050T and PS8250/PS8250T User Guide...
  • Page 2 Planar employees. When you purchase a Planar product, you get more than a display, you get the service and support you need to maximize your investment. To find the latest warranty and service information regarding your Planar product, please visit http://www.planar.com/support...

  • Page 3: Table Of Contents

    Table of Contents PS7050/PS7050T and PS8250/PS8250T User Guide ..........i Introduction .
  • Page 4 ................. .40 PS7050/PS7050T and PS8250/PS8250T User Guide...
  • Page 5 ..........42 PS7050/PS7050T and PS8250/PS8250T User Guide...
  • Page 6 Table of Contents PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 7: Introduction

    Introduction The PS7050/PS7050T and the PS8250/PS8250T are 70” and 82” diagonal commercial- grade LCD displays. The displays have a native full HD (1920 x 1080) resolution and an aspect ratio of 16:9. All models are designed for up to 24x7 performance and come standard with a variety of commercial grade features.

  • Page 8: Safety Information

    Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from any of the Planar LCD products. Only use the attachments/accessories specified by the manufacturer.
  • Page 9 The front polarizer is soft and subject to scratches from sharp objects. The polarizer is a thin sheet of film laminated to the outside layer of glass on the LCD screen. Take care when handling items near the screen. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 10: Recommended Usage

    0º C. If one of these conditions exists, it is up to the installer to ensure that placement is changed, thermal shielding is provided and/or additional ventilation is provided to keep the display within its nominal operating parameters. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 11: Vesa Mounts, General Description

    VESA mounts are used to secure the PS7050/PS7050T and the PS8250/PS8250T for display. The displays can be installed using a variety of VESA mounts available through Planar. If you do not have a VESA mount and would like to purchase one, contact Planar.

  • Page 12: Package Contents

    Quantity Remote control with 2 batteries Power cord, 1.8 meters VGA cable (D-sub), 1.8 meters Keypad cover and screws for mounting Quick start guide USB cable (A to B), 1 (PS7050T 1.8 meters PS8250T only) PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 13: Installing The Display

    If your installation included a lot of construction or dust, it is highly recommended that you clean all of the screens after the wall installation and configuration are complete. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 14: Signal Source Inputs

    Audio Out 3.5mm jack SPDIF Out TOSLINK jack Optical audio Touch USB Type B PS7050T and PS8250T only Component RCA G/B/R, RCA L/R Video and audio Serial D-Sub 9 pin RS-232 Power AC power input PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 15: Operating The Display

    To lock the keypad, press the “Down” and “Vol+” buttons together for 7 seconds. Repeat the process to unlock the keypad. A cover is included in the accessory kit that can be attached with the included screws over the keys to prevent key presses. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 16: Remote Control

    Remote Control Remote Control Below is a picture of the remote control and a description of the functions supported. PS7050/PS7050T and PS8250/PS8250T User Guide...
  • Page 17 00 FF CA 35 ►► ■ 00 FF D6 29 00 FF DE 21 ►▌ ▐◄◄ 00 FF CE 31 00 FF DD 22 ►►▌ 00 FF DF 20 00 FF CF 30 00 FF 9D 62 PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 18: Locking The Remote

    Turning the Display On Insert the power cord into the display and the power outlet. Press the power button on the remote or keypad. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 19: Turning The Display Off

    Use the arrow buttons to select the desired input source and press OK. Using the remote control, select PC RGB, HDMI, or Video source to select your source. If desired source is not selected, press multiple times to toggle through the input options. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 20: Osd Menu Functions

    Auto Adjust: When selected, the image will be auto adjusted Hor Pos, Vert Pos, Size, and Phase: 0-100 Backlight 0-100 Color Range 16-235, 0-255 DMP Option (USB only) Auto play: On/off Show effect: Select from various slide show transition effects Slide time: 0-255 sec PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 21: Sound Menu

    Sound Menu Sound Menu Item Selection Options Sound Setting Treble and bass: 0-64 Balance -50 to 50 Auto Volume On/off Surround Sound Off/Surround/SRS SPDIF Mode Auto/PCM 120Hz, 500Hz, 1.5KHz, 10KHz: 0-64 PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 22: Option Menu

    OSD Language English, French, German, Spanish, Chinese +18 other language options Restore Factory Default Yes/No OSD Transparency Off/Low/Middle/High OSD Duration 5 sec/10 sec/15 sec/20 sec/off Software Update Yes/No Firmware Version Version will display if selected PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 23: Time Menu

    Time Menu Item Selection Options Clock Date/Month/Year/Hour/Minute Off Time Off/Once/Every Day/Mon-Fri/Mon-Sat/Sat-Sun/Sunday/ Hour/Minute On Time Off/Once/Every Day/Mon-Fri/Mon-Sat/Sat-Sun/Sunday/ Hour/Minute/Source/Volume Sleep Timer Off/10 min/20 min/30 min/ 60 min/ 90 min/ 120 min/ 180 min/ 240 min Auto Sleep On/Off PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 24: Playing Media Files

    This menu appears only if Auto Play is set to “off” in the Picture Menu under DMP option or if no media files are in the root folder. The remote is required to operate the USB playback functionality unless Auto Play is set to “on”. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 25: Playing Videos

    Pressing the “OK” or “INFO” buttons on the remote while a video is playing will activate the media menu bar at the bottom of the screen. Scroll to highlight the desired selection and to view additional icons. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 26: Media Menu Bar When Videos Are Playing

    Changes image shown from 16:9 to 4:3 (Note: Not always supported) Press the down arrow button on the remote to exit the Media Menu Bar. If you press the Exit button on the remote, it will take you back to the playlist menu. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 27: Playing Image Files

    Pressing the “OK” or “INFO” buttons on the remote while a slideshow is playing will activate the media menu bar at the bottom of the screen. Scroll to highlight the desired selection and to view additional icons. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 28: Media Menu Bar When Image Slideshows Are Playing

    Exit button on the remote, it will take you back to the playlist menu. Slide show duration and transition is selected in the main menu. Click Menu on the remote to access. Go to DMP OPTION (see page 20). PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 29: Rs232 Communication

    Returns “Volume = xx” where xx is 0 to 100 FF 04 05 00 Set Mute to “X” 01 = Mute; 02 is Unmute FF 04 06 01/02 Get Mute Returns “Unmute” or “Mute” FF 04 07 00 PS7050/PS7050T and PS8250/PS8250T User Guide...
  • Page 30 FF 04 26 0X never, 1 = 10 min, 2 = 20 min, 3=30, 4=60, 5=90, 6=120, 7=180, 8=240 min Get Sleep Timer Returns the sleep timer settings. For example, “240 Min” FF 04 27 00 PS7050/PS7050T and PS8250/PS8250T User Guide...
  • Page 31 69 63 33 Select the highlighted item 69 96 00 EXIT Exit the menu 69 84 12 Note: If RS232 commands do not function properly, contact Planar Technical Support to receive instructions for updating firmware. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 32: Touch Screen Operation

    “Calibrate” as shown below. When you click on Calibrate, a grid pattern shows on the screen with touch points identified. Touch all of the identified points, then hit “yes” at the end to store the calibration. PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 33: Signal Compatibility

    640x480 640x480 640x480 640x480 720x400 800x600 800x600 800x600 800x600 1024x768 1024x768 1024x768 1152x864 1152x870 1280x720 1280x800 1280x960 1280x1024 1360x768 1366x768 1400x1050 1600x1200 1680x1050 1920x1080 NTSC 720x480 720x576 SDTV 480i SDTV 576i EDTV 480p EDTV 576p PS7050/PS7050T and PS8250/PS8250T User Guide...
  • Page 34 Signal Frame Resolution Type Rate (Hz) HDTV 1080i HDTV 1080i HDTV 720p HDTV 720p HDTV 720p HDTV 1080p HDTV 1080p HDTV 1080p HDTV 1080p HDTV 1080p PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 35: Specifications

    Touch Technology IR 10 point touch IR 10 point touch OS Compatibility Windows 8, 7, Vista, Windows 8, 7, Vista, XP, Mac OSX, and XP, Mac OSX, and Linux Linux Protective Glass Anti-glare tempered Anti-glare tempered PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 36: Dimensions

    Dimensions PS7050 - Front and Side PS7050 - Rear PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 37: Ps7050T - Front And Side

    PS7050T - Front and Side PS7050T - Rear PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 38: Ps8250 - Front And Side

    PS8250 - Front and Side PS8250 - Rear PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 39: Ps8250T - Front And Side

    PS8250T - Front and Side PS8250T - Rear PS7050/PS7050T and PS8250/PS8250T User Guide...

  • Page 40: Troubleshooting

    • Perform the adjustments according to "Operating the Display" on page 15. • If the problem you have experienced isn’t described below or you can’t correct the problem, stop using the display and contact Planar’s Technical Support Department. (See "Accessing Planar Technical Support" on page 41)
  • Page 41 Accessing Planar Technical Support Go to http://www.planar.com/support to locate the following support documents and resources: • User Guide • Touchscreen Drivers • Standard warranties • Planar support hotline number and email PS7050/PS7050T and PS8250/PS8250T User Guide...
  • Page 42 Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. PS7050/PS7050T and PS8250/PS8250T User Guide...
