Summary of Contents for Planar PXN2490MW

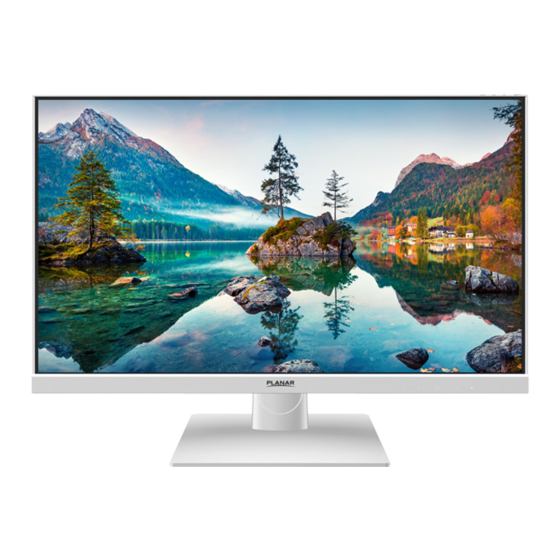

- Page 1 PXN2490MW LED LCD Monitor USER'S GUIDE www.planar.com...
-
Page 2: Table Of Contents
First Setup ..........................6 Front View of the Product ......................7 Rear View of the Product ......................8 Quick Installation ........................9 Basic Operation ........................10 OSD Menu ..........................12 Supporting Timing Modes ....................16 Technical Information ......................17 Wall Mount Instructions ......................18 Troubleshooting ........................19 Planar Support ........................20... -
Page 3: Operation Instructions
According to WEEE regulation, this LED LCD Monitor can't be handled as normal trash in Europe when it is out of usage. Please refer to the recycle information on Planar's website to handle it. For more information on how to recycle your product, please visit http://www.planar.com/about/green/... - Page 4 COMMUNIQUE D'AVERTISSEMENT DE LA FCC CONCERNANT LES INTERFERENCE DE FREQUENCE RADIO: (SEULEMENT POUR MODELES CERTIFIE PAR LA FCC) Ce moniteur a été testé et à été trouvé conforme aux limites pour un appareil numérique de Class B, suivant la partie 15 des règlements de la FCC. Ces limites ont été développées pour offrir une protection satisfaisante contre les interférences nuisibles dans une installation résidentielle.
-
Page 5: Unpacking Instructions
Unpacking Instructions Remove the LED LCD Monitor out of the package and take off EPE Foam. Remove base from EPE Foam and attach to base. Adjust the display between -5° and 15°. Safety Precautions Follow all warnings, precautions and maintenance as recommended in this user's manual to maximize the life of your unit. -
Page 6: Consignes De Sécurité
Consignes de sécurité Respectez tous les avertissements, les précautions et conseils d'entretien recommandés dans ce manuel de l'utilisateur pour maximiser la durée de vie de votre appareil. A faire: Éteindre le produit avant de le nettoyer. La surface de l'écran tactile peut être nettoyée avec un chiffon doux et propre imprégné d'un nettoyant doux du commerce pour vitres ou d'un mélange à... -
Page 7: Package Overview
Package Overview LED LCD Monitor Base DisplayPort Cable HDMI Cable Adaptor Power Cord User's Cuide... -
Page 8: First Setup
First Setup Install the Stand Base Lay the LED LCD Monitor flat on a table with the LED screen face down. To prevent the LED LCD Monitor from being scratched, put a piece of soft cloth on the table on which the screen will be set. -
Page 9: Front View Of The Product
Front View of the Product Menu / Exit Blue Light Reducer / Down Brightness / Up ④ Input select / Enter ⑤ Power On / Off ⑥ LED Indicator *Hot keys Instructions please see "Basic Operation" on page10. -
Page 10: Rear View Of The Product
Rear View of the Product ② ③ ④ ⑤ Power Input (DC input) DVI Input (DVI 24 + 1 PIN) HDMI input (HDMI 19 pin) ④ DisplayPort Input (DisplayPort 20 pin) ⑤ Audio Input... -
Page 11: Quick Installation
Quick Installation Connect either DVI, HDMI or DisplayPort Video Source from the monitor to the computer. Make sure both monitor and computer are powered OFF. Please note. The monitor ships with DisplayPort and HDMI cables only. Connect power adaptor to DC input of the monitor. Connect power cord to a properly grounded AC outlet, and then to the adaptor. -
Page 12: Basic Operation
Basic Operation Before using the LED LCD Monitor: Connect external equipment properly. Insert the power plug, and the power LED indicator will light orange. Power On/Off To turn the LED LCD Monitor on/off: Press button on the front. The power LED indicator light will be blue when the LED LCD Monitor is on. - Page 13 OSD lock Out Function When LED LCD Monitor is in normal mode, the “OSD Lock Out” function can be enabled. Option 1: OSD lock-all 4 buttons are locked except the “POWER” button. Press and hold the button for 5 seconds to lock the OSD buttons. The LED LCD Monitor will show an “OSD button locked”...
-
Page 14: Osd Menu
OSD Menu PICTURE BRIGHTNESS Adjust between 0-100. CONTRAST Adjust between 0-100. SHARPNESS Adjust between 1-4. ASPECT RATIO Between full, 4:3, 1:1. ULTRA VIVID Between Off, Low, Middle, High... - Page 15 COLOR COLOR EFFECT Select between Standard, Game, Movie, Photo, Vivid. SATURATION Select Adjust between 0-100. GAMMA Select between Off, 1.8, 2.0, 2.2, 2.4. TEMPERATURE Select between 6500, 5400, SRGB, User, 9300. Under user, the following colors can be adjusted. R 0-255 ...
- Page 16 VOLUME Select between 0~100. MUTE Turn On or Off AUDIO SOURCE Select between Analog, Digital. OVER DRIVER Turn On or Off. INPUT Select between DVI, HDMI, DP.
- Page 17 LANGUAGE Select between English, French, German, Italian, Spanish, Finnish, Japanese, Simplified Chinese, Traditional Chinese. MENU TIME Adjust between 10 - 60 secs. OSD H POSTION Adjust between 0 (Left) to 100 (Right). OSD V POSTION Adjust between 0 (Up) to 100 (Down). TRANSPARENCY Adjust between 0 (Solid) to 100 (Transparent).
-
Page 18: Supporting Timing Modes
Supporting Timing Modes STANDARD RESOLUTION 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz VESA 640 x 480 @ 72Hz VESA 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz 800 x 600 @ 72Hz VESA VESA... -
Page 19: Technical Information
Technical Information Panel 23.8" TFT (with LED backlight) Power Management Normal On: 22 Watts (typical), 27 Watts (maximum) Standby Mode: < 0.5Watt Off: < 0.5 Watt Displayable Resolution WQHD 2560x1440 max Pixel Dimension 0.2058(H)x0.2058(V)mm Display Color 16.7M Tilt -5° ~ 15° Active Display Area 526.85mm x 296.35mm Temperature... -
Page 20: Wall Mount Instructions
Wall-Mount Installation Instructions Preparing to Install the Optional Wall Mount Arm (not included) This LED LCD Monitor can be attached to a wall mounting arm purchased separately. Turn the power OFF then disconnect the cables from the LED LCD Monitor before performing the procedure below. -
Page 21: Troubleshooting
Care and Maintenance Care Avoid exposing your LED LCD monitor directly to sunlight or other heat source. Place your LED LCD monitor away from the sun to reduce glare. Put your LED LCD monitor in a well ventilated area. ... -
Page 22: Planar Support
Planar Support Cables and Accessories To find cables and accessories for your Planar monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com. Technical Support Visit Planar at http://www.planar.com/support for operations manuals, touchscreen drivers, warranty information and access to Planar's Technical Library for online trouble shooting. - Page 23 Hours: 24 hours a day, 7 days a week ©2021 Planar Systems, lnc. Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice.
