Heat & Glo 550TRSI-AUF Owner's Manual page 66

3
3

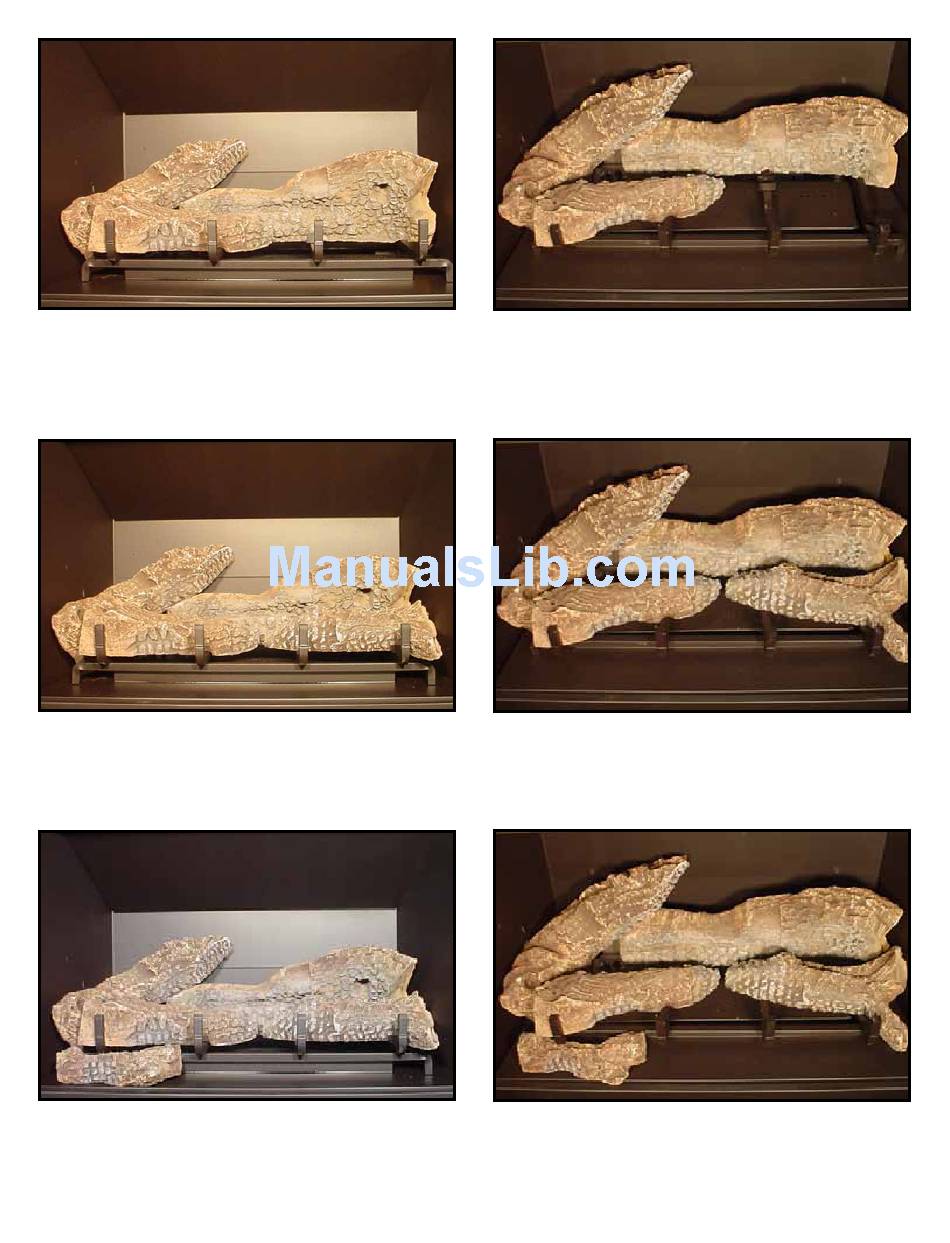

LOG #3 (SRV349-704): Position log #3 so that its right edge sits on log #1 as shown and it's left edge sits on the first grate
tine behind log #2.
4
4
LOG #4 (SRV278-705): Position log #4 between log #1 and the locating tab on the fourth grate tine. Push its left hand side
back to the locating tab as the grate tine.
5
5
LOG #5 (SRV540-704): Put the forked end of log #5 on the base in front of the grate, towards the center of the second
grate tine.
66
Heat & Glo • 550TRSI-AUF, 550TRSILP-AUF • 2079-980 Rev. R • 2/13
