The audio inputs should be connected using high-quality
screened cable, taking care to connect the left and right
channels correctly.
To connect to a tape recorder
Connect the analogue output from the tape recorder to the
TAPE 1 input on the analogue controller (or another input if
you prefer).
Connect one of the TAPE OUT outputs from the analogue
controller to the analogue input on the tape recorder.
Note that the two tape outputs are of opposite phase, allowing
them to be used in conjunction as a high quality balanced feed
for a tape deck or the second room in a two-room system.
To connect to other Meridian 500
Series equipment

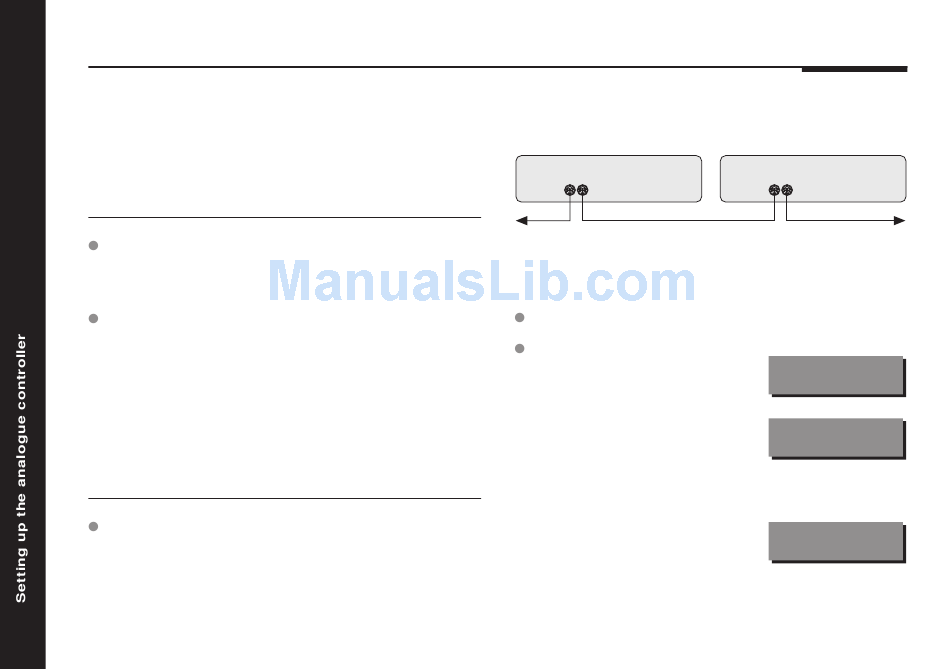

Connect one of the COMMS sockets on the back panel of the
analogue controller to one of the COMMS socket on another
500 Series unit, using the 500 comms lead provided with the
other unit.
26
The sequence in which you connect the units is not important.
COMMS
Then configure the units with the following automatic setup
procedure:
Switch all the units to standby.
Press Clear on the remote.
Each unit will display:
One unit will then be designated
as the controller, and display:
This is the unit that will respond to the remote.
All the other units will be configured
as non-controllers, and display:
Your system is now set up and ready for use.
COMMS
Aut o
Con .
N.C on.
