Connecting the analogue controller

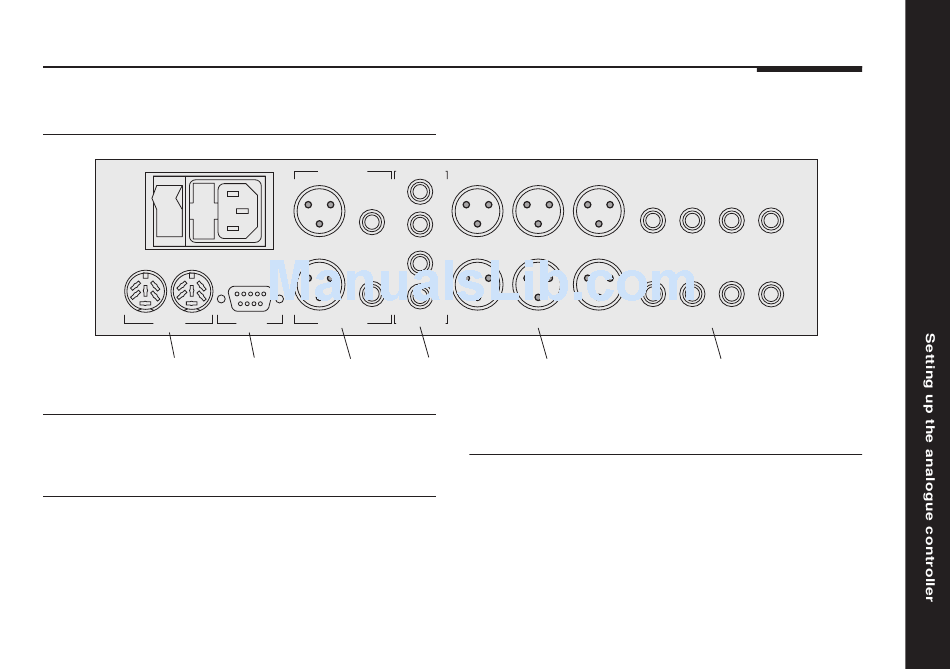

Back panel
OFF
ON
COMMS
Comms
Audio connections
The following table gives details of the six audio inputs:
Use this input
To connect to this
A1
A turntable pickup with optional
MM/MC module.
A2 to A4
Other unbalanced audio sources.
A5 to A7
Audio sources with balanced (XLR)
outputs.
MAIN OUT L
TAPE OUT L
1
2
1
2
RS232
MAIN OUT R
TAPE OUT R
Main
RS232
outputs
TAPE 2/A7
CDR/A6
CD/A5
Tape
Balanced
outputs
inputs
The following table gives details of the audio outputs:
Use this output
MAIN OUT (balanced)
MAIN OUT (phono)
TAPE OUT 1
TAPE OUT 2
L
R
TV/A4
RADIO/A3 TAPE 1/A2 LP/A1
Phono
inputs
To connect to this
Power amplifier or active loudspeakers
with balanced (XLR) inputs.
Power amplifier or active loudspeakers
with unbalanced inputs.
Tape recorder.
Second tape recorder, VCR, or second
room in a two-room system.
