Travis Industries Illuminations 4915 Installation Instructions

Packing List

•
(11) Cylinders (Stone or Frosted Plastic) of differing heights (see "Cylinder Layout" for details)
•
(13) Candle Sleeves of differing heights (see "Cylinder Layout" for details)
Cylinder Layout
The cylinders (stone or frosted) and candle sleeves come in various heights. To help determine placement,
use the table below to locate and place each cylinder and candle sleeve.
NOTE: The stone cylinders vary slightly in height and are close to the dimensions below (the diameter is
slightly larger). Use the dimensions below as a guideline to insure correct cylinder orientation.
NOTE: The candle sleeves are stamped with a number to ease identification.

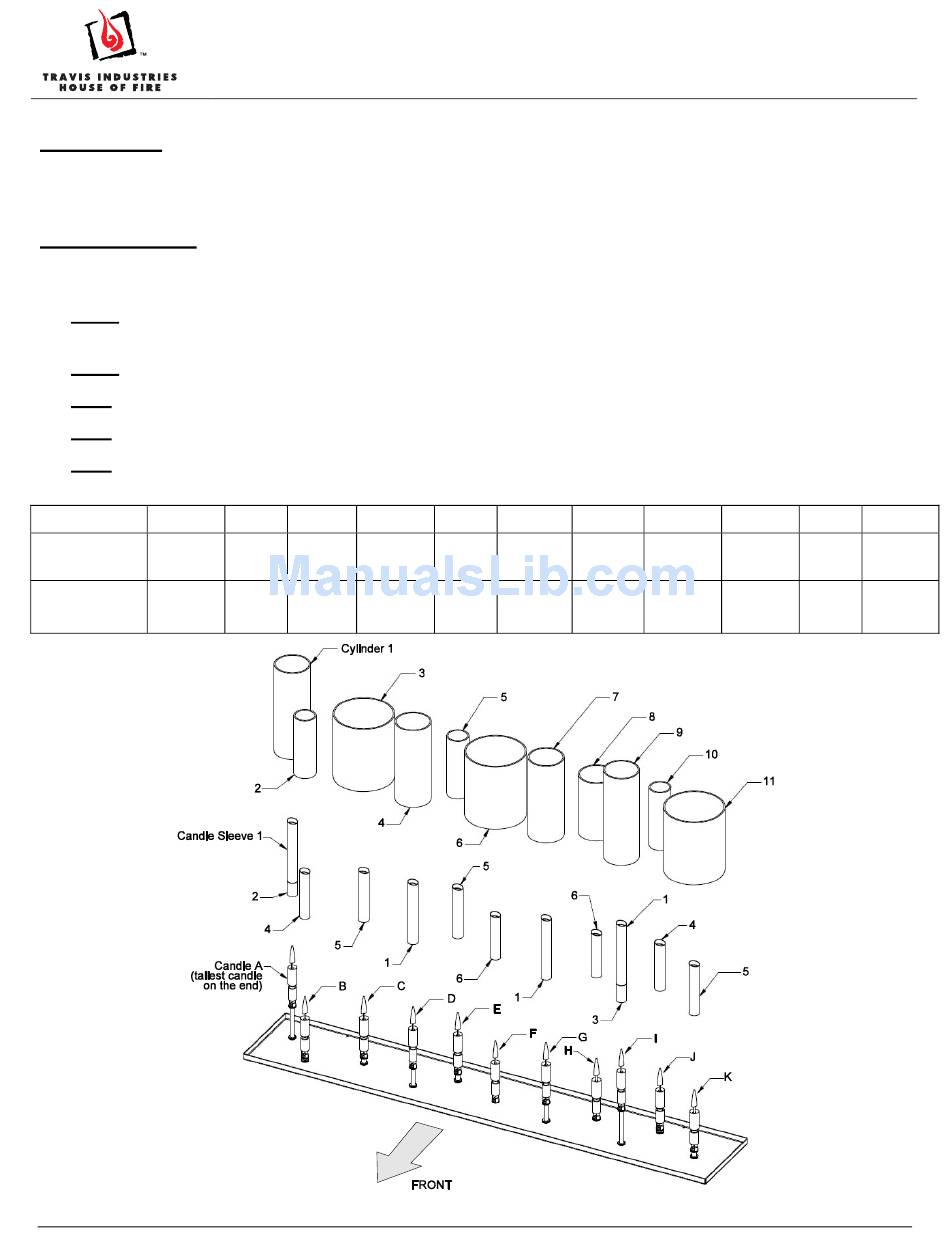

HINT: Start with the letter A candle (it is the tallest candle on the end - see Figure 1 below).
HINT: Place the cylinders and sleeves in front of the fireplace before installation to verify correct orientation.
HINT: Cylinders 1 and 9 are the same. Cylinders 2, 5, and 10 are the same. Cylinders 3, 6, and 11 are the
same. Cylinders 4 and 7 are the same. Cylinder 8 is unique.
Candle A
Cylinder
9" Tall
Dimensions 3.25" Dia.
1 and 2
Candle
placed
Sleeve ID
together
Page 1 of 3
Illuminations 4915 Stone/Frosted Sleeve
Installation Instructions
B C D
6" Tall 6.5" Tall 8" Tall
2" Dia. 5.5" Dia. 3.25" Dia.
4 5 1
17601567 - 1/14/09
(Stone 95000962, Frosted 95000963)
E F G
6" Tall 6.5" Tall 8" Tall
2" Dia. 5.5" Dia. 3.25" Dia.
5 6 1
Figure 1
H I J
6" Tall 9" Tall 6" Tall
3.25" Dia. 3.25" Dia. 2" Dia.
6 1 and 3 4
placed
together
© Travis Industries, Inc.
K
6.5" Tal
5.5" Dia.
5
