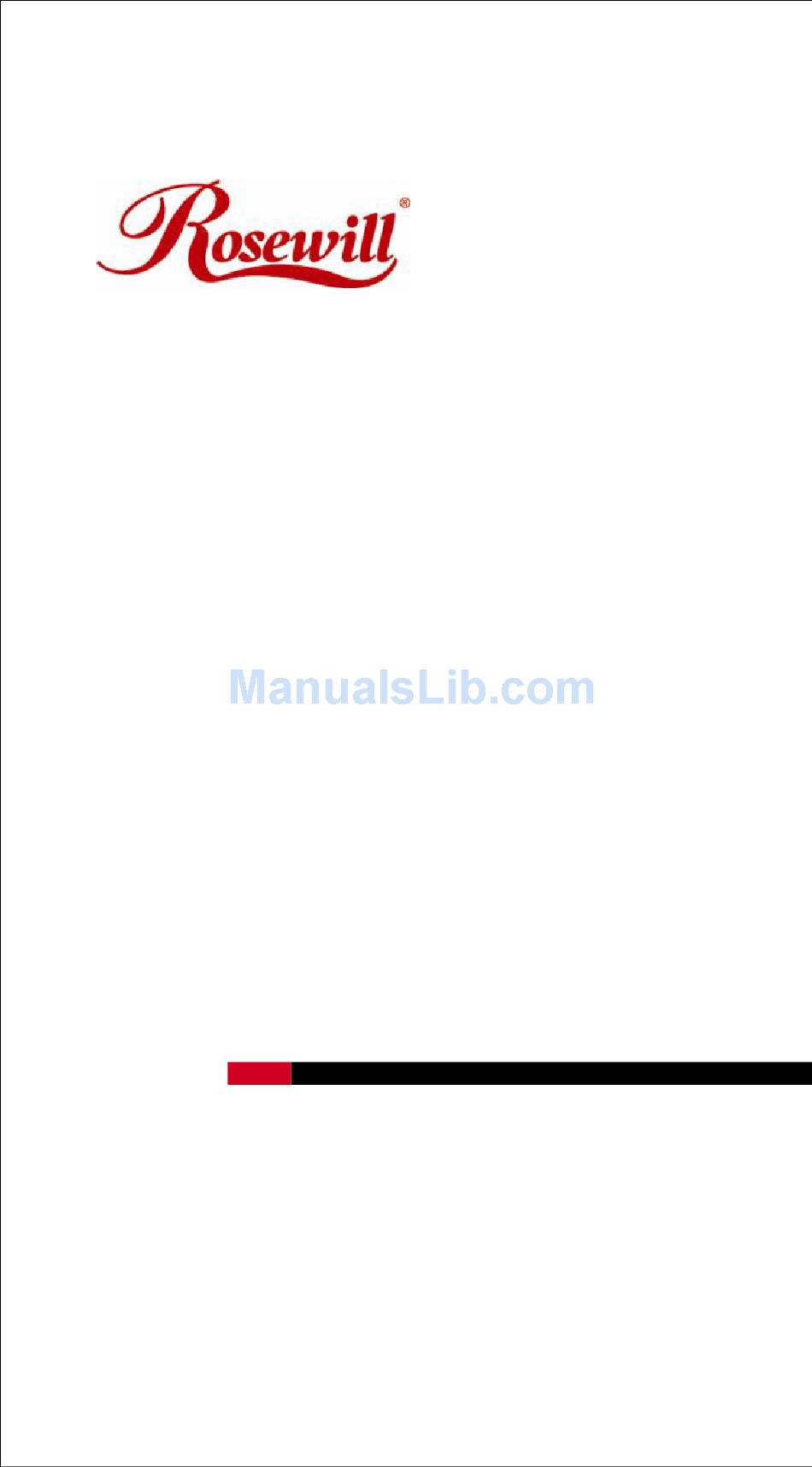

- Page 1 16 Ports Gigabit Switch RGS-1016 User Manual...
- Page 2 Specifications are subject to change without notice. is a registered trademark of Rosewill Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Rosewill Inc.
- Page 3 CE Mark Warning This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Safety Warning Place connecting cables carefully so that no one will step on them or stumble over them.
-
Page 4: Package Contents
Package Contents The following contents should be found in your package: One RGS-1016 Switch One power cord This User Guide Rubber footpads Rack-mount kit for installing the switch in a 19-inch rack Note: Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor. -
Page 5: Key Features
Key Features Supports IEEE 802.3az Energy Efficient Ethernet 16 port auto-sensing 10/100/1000 Mbps Ethernet connections Bandwidth: 32 Gbps (non-blocking) Supports NWay protocol for speed(10/100/1000Mbps) and duplex mode(Half/Full) auto-detection Supports MDI/MDI-X auto crossover and polarity correction ... -
Page 6: Front Panel
Front Panel The front panel consists of LED indicators and the ports. 16 Port 19-inch Model Gigabit Ethernet Ports: The switch includes 16 gigabit twisted pair ports, each supporting auto negotiable 10/100/1000 Mbps and auto MDI/MDIX cross over detection functions. This function provides true “plug and play” capability. These ports can operate in half-duplex mode for 10/100 Mbps. -
Page 7: Wall Mount Installation
Installation This switch can be mount in the rack or mount on the wall. You can choose the suitable one to install your device. Before installing the switch, we strongly recommend: The switch is placed with appropriate ventilation environment. A minimum 25mm space around the unit is recommended. -
Page 8: Network Cables
Insert the unit into the rack with suitable screws Reconnect all the cables. Network Cables In making a switch interconnection, you could use any port to connect another switch with straight or crossover cable. As all the ports support auto MDI / MDI-X function, using a straight cable to make a switch-to-switch connection is allowed. -
Page 9: Appendix A: Troubleshooting
The cable must be less than 100 meters long (328 feet). Thank you for purchasing a quality Rosewill Product. Please register your product at: www.rosewill.com for complete warranty information and future support for your product. Rosewill Customer Service Hotline: 1-800-575-9885 techsupport@rosewill.com...
