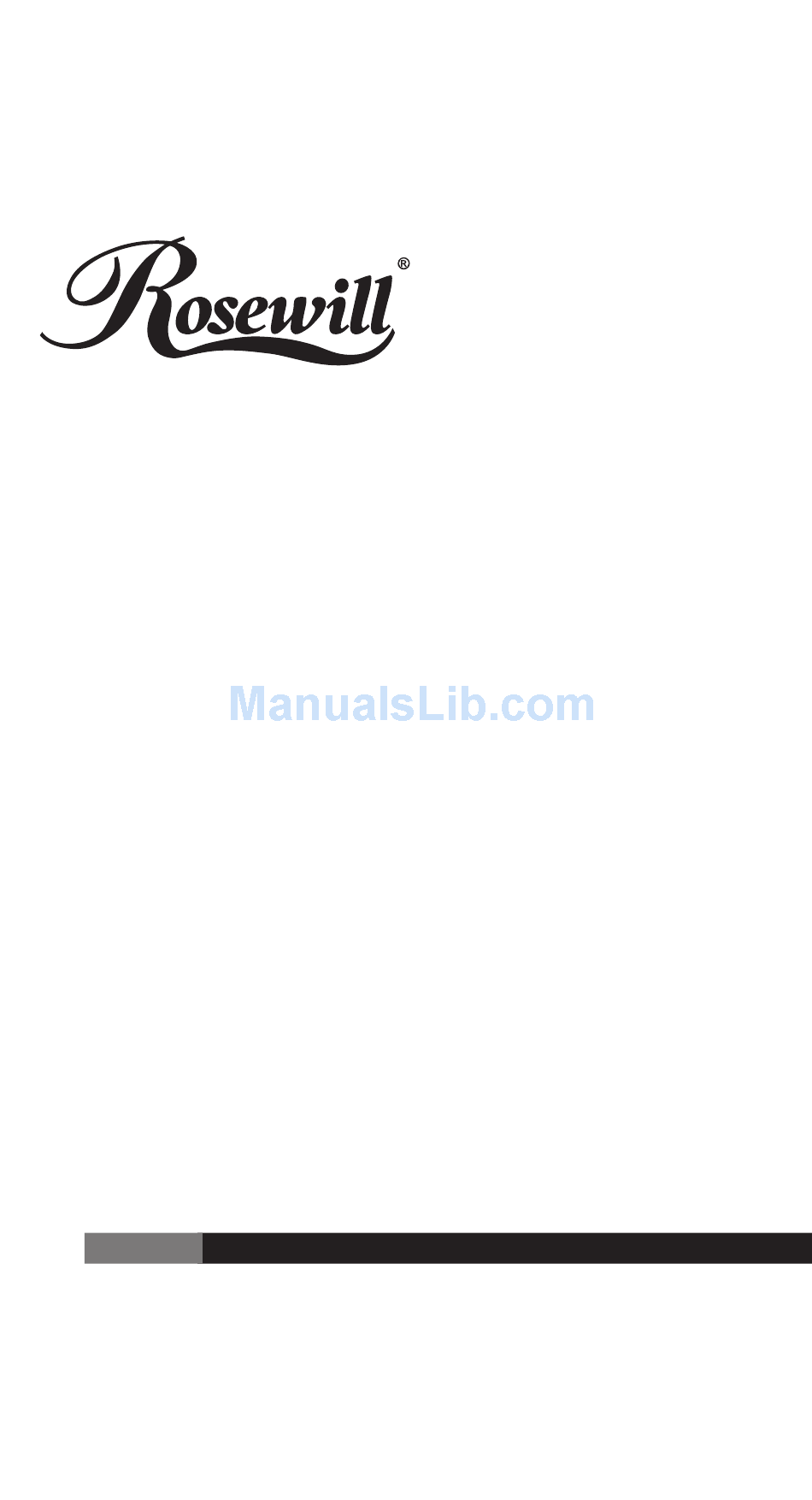

- Page 1 Networing RC-415/RC-416 USER’S Manual...
- Page 2 Please check with your local distributors for the latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademarks: All trade names and trademarks are the properties of Rosewill. Copyright © 2010, All Rights Reserved.

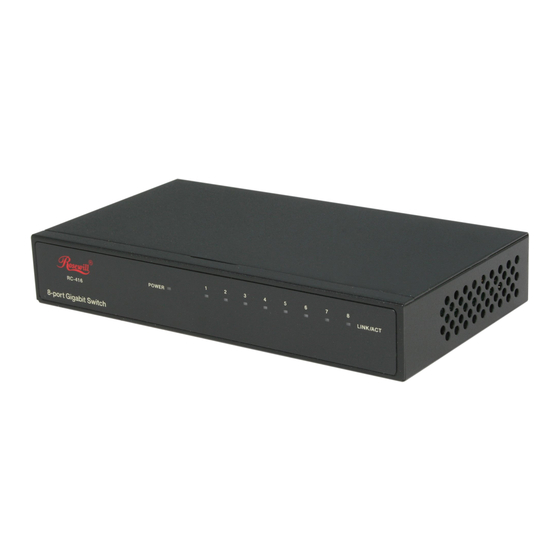

- Page 3 Before you start to install the switch, check the following contents in this package • One Gigabit Ethernet switch (RC-415 5 port gigabit switch/ RC-416 8 port gigabit switch) • One power adapter • User’s manual...
-
Page 4: Led Definition
USER’S Manual LED Definition Please refer to the following table for LED definition: POWER LINK/ACT RC-415 5-port Gigabit Switch POWER LINK/ACT RC-416 8-port Gigabit Switch Status Operation Steady Green Power is on Power Power is off Steady Green Port connected... - Page 5 Networing RC-415/416 USER’S Manual Stations Connection Connect each station to the switch by twisted-pair cable. Plug one RJ-45 connector into a RJ-45 port of the switch, and plug the other RJ-45 connector into the station’s network adapter. Power on the switch and then system is ready.
- Page 6 RC-415: External Power Adapter 5V 1A Power Supply RC-416: External Power Adapter 5V 1A CE, FCC and VCCI class A Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
