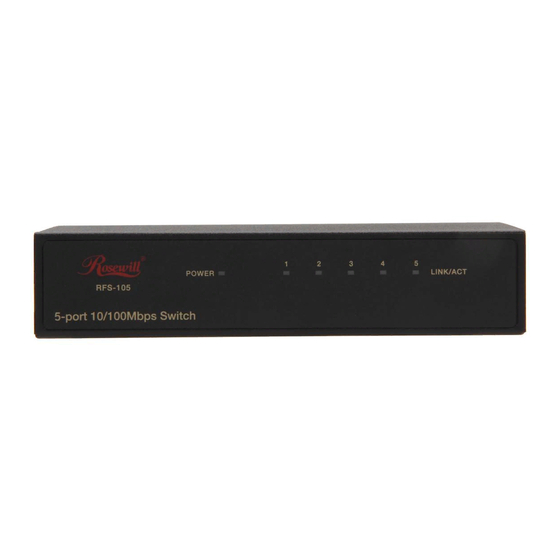

- Page 2 The RFS-105 / RFS-108 is a high-performance Fast Ethernet switch, with all ports capable of 10 or 100Mbps auto-negotiation operation. Store-and-forward switching mode promises the low latency plus eliminates all the network errors, including runt and CRC error packets. To work under full-duplex mode, transmission and reception of the frames can occur simultaneously without causing collisions as well as double the network bandwidth.
- Page 3 FCC Class B, CE Before you start to install the switch, check the following contents in this package： A 5 port RFS-105 switch or a 8 port RFS-108 switch One external power adapter User’s manual ...
- Page 4 Please refer to the following table for LED definition 5port 8port Status Operation Power Steady Green Power is on Power is off Link/Act Steady Green The port is connected Blinking Green The port is transmitting/receiving data. No connection Connect each station to the switch by twisted-pair cable. Plug one RJ-45 connector into a RJ-45 port of the switch, and plug the other RJ-45 connector into the station’s network adapter.
- Page 5 In making a switch interconnection, you could use any port to connect another switch with straight or crossover cable. As all the ports support auto MDI / MDI-X function, using a straight cable to make a switch-to-switch connection is allowed. For cable selection, refer to the following table：...
- Page 6 RFS-105 Spec Switch Type Desktop 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Full-Duplex Standards Flow Control, 802.3az Energy Efficient Ethernet Network Management Unmanaged Type Ports 5 x RJ45 Speed 10/100Mbps MAC Address Table Buffer Memory 384K bits (48KB) Switching Method Store and Forward...
- Page 7 RFS-108 Spec Switch Type Desktop 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Full-Duplex Standards Flow Control, 802.3az Energy Efficient Ethernet, 802.1p QoS data management Network Management Unmanaged Type Ports 8 x RJ45 Speed 10/100Mbps MAC Address Table Buffer Memory 768K bits (96KB) Switching Method Store and Forward System: Power...
- Page 8 FCC Certifications This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
