- Page 1 8 Ports Green Gigabit Ethernet PoE/PoE+ Metal Switch RGS-108P User Manual...
- Page 2 Specifications are subject to change without notice. is a registered trademark of Rosewill Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from Rosewill Inc.
- Page 3 CE Mark Warning This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class B for ITE, the essential protection requirement of Council Directive 2004/108/EC on the approximation of the laws of the Member States relating to electromagnetic compatibility. Company has an on-going policy of upgrading its products and it may be possible that information in this document is not up-to-date.
-
Page 4: Package Contents

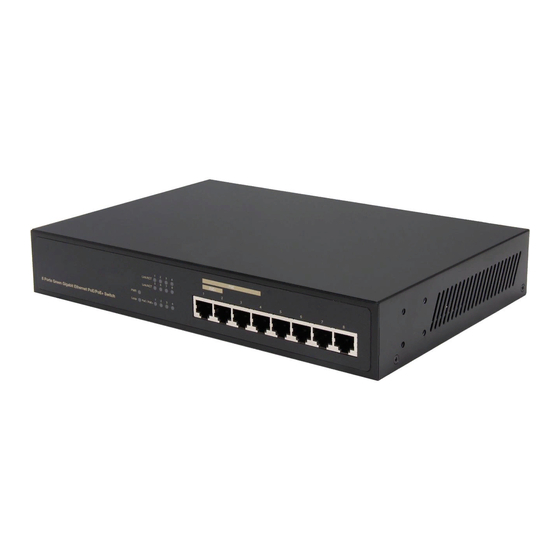

Package Contents The following contents should be found in your package: 8-port Gigabit Ethernet with 2-port PoE+/4-port PoE Desktop Switch 1x AC power cord Rubber feet and screws User’s Manual 2x Brackets 1x Wall mount accessory Note: ... -
Page 5: Key Features
The switch is plug-n-play without any software to configure and also fully compliant with all kinds of network protocols. Moreover, the rich diagnostic LED indicators on the front-panel provide the operating status of individual port and whole system. Key Features ... -
Page 6: Operation
Front Panel The front panel consists of LED indicators and the ports. LEDs Definition The switch contain 1x power LED and 1x Loop Detection LED for the device, 1x PoE LED for each PoE+/PoE port and 1x Link/Act LED for each port. -
Page 7: Power Receptacle
Power Receptacle To be compatible with the electric service standards around the world, the switch is designed to afford the power supply in the range from 100 ~ 240VAC, 50/60Hz. Please make sure that your outlet standard to be within this range. To power on the switch, plug the female end of the power cord firmly into the receptacle of the switch and the other end into an electric service outlet. -
Page 8: Rack Mount Installation
the wall. The gap should be big enough for the screw heads to slide into the screw slots and the connection cables to run down the back of the switch. Align the holes on the back of the switch with the screws on the wall. -
Page 9: Product Specifications
auto MDI / MDI-X function, using a straight cable to make a switch-to-switch connection is allowed. Crossover or straight-through cable: All the ports on the switch support Auto-MDI/MDI-X functionality. Both straight-through or crossover cables can be used to connect the switch with PCs as well as other devices like switches, hubs or router. -
Page 10: Appendix A: Troubleshooting
The cable must be less than 100 meters long (328 feet). Thank you for purchasing a quality Rosewill Product. Please register your product at: www.rosewill.com for complete warranty information and future support for your product. Rosewill Customer Service Hotline: 1-800-575-9885 techsupport@rosewill.com...
