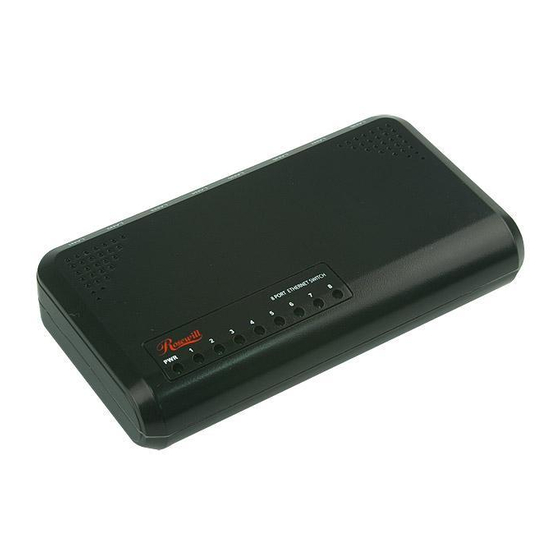

- Page 1 5/8 Port 10/100Mbp Switch RC405/406 User Manual...
-
Page 2: Fcc Statement
5/8 Port 10/100Mbp Switch RC405/406 User Manual FCC STATEMENT Every 10/100 Switch has been tested and complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: Specifications
5/8 Port 10/100Mbp Switch RC405/406 User Manual Chapter 1: Introduction This newly redesigned 5Port and 8Port 10/100 Switch can significantly increase your network traffic speed. A switch serves the same function as a hub in a network design tying your network equipment together. But unlike a simple-minded hub which divides the network’s bandwidth among all the attached devices, a switch... -
Page 4: Hardware Description
5/8 Port 10/100Mbp Switch RC405/406 User Manual Individual port – link/activity LEDs Dimension: 131mm(L) x 71mm(W) x 28mm(H) Temperature: Operating – 0℃ to 50℃ Storage – -20℃ to 70℃ Humidity: Operating – 10% to 90% RH Storage – 5% to 90% RH... -
Page 5: Side Panel
5/8 Port 10/100Mbp Switch RC405/406 User Manual Side Panel The side panel of the 5/8Port Switch indicates a AC inlet, which accepts 100-240V 50-60Hz Power adapter. Chapter 3: Hardware Installation Place the Switch on a smooth surface Connect the output of power cord to the AC-inlet of the Switch. - Page 6 Make sure that the workstation’s network configuration is correct, modify the network configuration of workstation if need. c. Please reset the switch if need. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com/ for complete warranty information and future support for your product.
