Summary of Contents for Rosewill RKV-2DVI

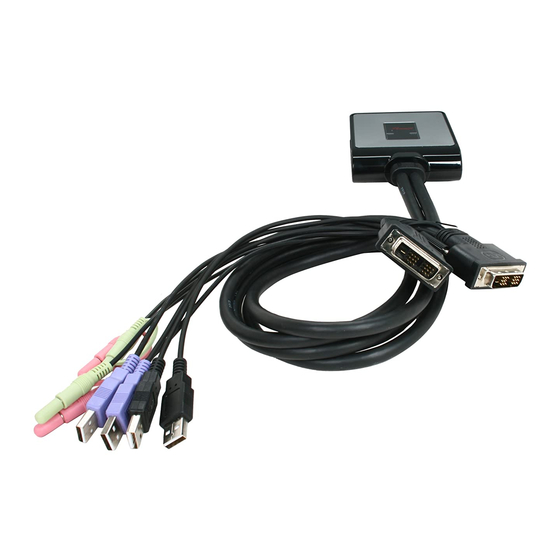

- Page 1 USB 2.0 DVI KVM Switch RKV-2DVI User Manual...
- Page 2 2.1 surround systems. Another new feature of the RKV-2DVI is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out-of-the-way, location.
-
Page 3: System Requirements
USB Type A port ♦ Speaker and microphone ports (optional) Cables The RKV-2DVI’s innovative design features built-in KVM and audio cables for extra convenience. No further cables are necessary. Package Contents The RKV-2DVI USB 2.0 DVI KVM Switch package contains the following items: ♦... -
Page 4: Operating Systems
USB 2.0 DVI KVM Switch RKV-2DVI Operating Systems Supported operating systems are shown in the table, below: Windows Linux UNIX Novell Components RKV-2DVI Remote Port Selector Version 2000 / XP / Vista / 7 RedHat 6.0 and higher SuSE 8.2 and higher Mandriva (Mandrake) 9.0 and higher... - Page 5 Auto Scan function. The LED is off to indicate the port is not selected. The connectors on the built-in KVM cables attach to the two computers in your RKV-2DVI installation. Your console USB keyboard plugs in here. Your console USB mouse plugs in here.
-
Page 6: Installation
RKV-2DVI Installation Plug your keyboard and mouse into their USB ports, located on the side of the RKV-2DVI. The ports are color coded and labeled with an appropriate icon. Note: The mouse connector is actually a USB 2.0 port, and can accept any USB compatible peripheral. You can even connect a hub to install multiple USB devices (This may require an extra power adapter). -
Page 7: Installation Diagram
USB 2.0 DVI KVM Switch RKV-2DVI User Manual Installation Diagram... -
Page 8: Operation
USB 2.0 DVI KVM Switch RKV-2DVI Operation The RKV-2DVI provides three convenient methods of selecting computers: Manual – click the pushbutton on the Remote Port Selector; Mouse – click the mouse’s scroll wheel; and Hotkey – enter combinations from the keyboard. Manual Port Selection Press the port selection pushbutton on the Remote Port Selector to toggle the KVM and Audio focus between the two computers. -
Page 9: Hotkey Summary Table
USB 2.0 DVI KVM Switch RKV-2DVI Hotkey Summary Table Combination [Scroll Lock] [Enter] [Scroll Lock] + [k] [Enter] [s] [Enter] [a] [Enter] [n] [x] [Enter] [m] [Enter] [w] [Enter] [F2] [Enter] [F3] [Enter] [F10] [Enter] [F4] [Enter] [F5] [Enter] [d] [Enter]... -
Page 10: Keyboard Emulation
USB 2.0 DVI KVM Switch RKV-2DVI Keyboard Emulation PC Keyboard [Shift] [Ctrl] [Ctrl] [1] [Ctrl] [2] [Ctrl] [3] [Ctrl] [4] [Alt] [Print Screen] [Scroll Lock] [Enter] [Backspace] [Insert] [Ctrl] Note: When using key combinations, press and release the first key (Ctrl), then press and release the activation key. -
Page 11: Troubleshooting
Mouse Port-Switching Possible Cause Power off all devices on the installation; power off DVI graphics card is not the RKV-2DVI; confirm all KVM cables are properly compatible with cable connected; power on the RKV-2DVI; power on the set hot-plugging. computers. -
Page 12: Specifications
Dimensions (L x W x H) Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product. Remote Port Selector, Mouse, Hotkeys 1 x USB Type A Female (Silver)
