- Page 1 5-port Gigabit Desktop Switch RC-409LX User Manual...
-
Page 2: Ce Mark Warning
5-port Gigabit Desktop Switch RC-409LX User Manual FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Before We Begin
COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of ROSEWILL INC. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from ROSEWILL INC. -
Page 4: Package Contents
Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Convention The Switch or RC-409LX mentioned in this User Guide stands for RC-409LX 5-port Gigabit Desktop Switch without any explanation. - 4 -... -
Page 5: Chapter 1 Introduction Of The Product
Gigabit speed. The RC-409LX switch is very easy to manage since it is plug-and-play and no configuration is needed. In addition, the auto MDI/MDI-X cable detection on all ports eliminates the demand of crossover cable or Uplink port. - Page 6 5-port Gigabit Desktop Switch RC-409LX Supports for Jumbo frames of up to 9KB LED indicators for monitoring power, link, speed and activity External power adapter supply - 6 - User Manual...
-
Page 7: Chapter 2 Installation
Please avoid any heavy thing placed on the switch. Power On RC-409LX 5-port Gigabit Desktop Switch can be used with DC power supply. Powering on the Switch, it will automatically initialize and its LED indicators will respond as follows: Name... -
Page 8: Chapter 3 Identifying External Components

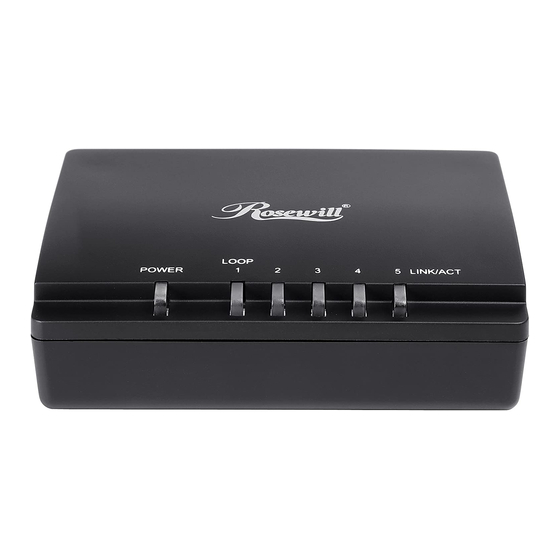

RC-409LX Switch. Port (1-5): The RC-409LX Switch is equipped with 5 10/100/1000M RJ45 ports where you will connect your network devices. The working status can be indicated by the corresponding LEDs on the front panel. -
Page 9: Appendix A: Specifications
5-port Gigabit Desktop Switch RC-409LX Appendix A: Specifications Standards IEEE802.3, IEEE802.3u, IEEE802.3ab Topology Star Protocol CSMA/CD Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex) Data Transfer Rate Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex) Gigabit Ethernet: 2000Mbps (Full Duplex) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω... -
Page 10: Appendix B: Troubleshooting
Appendix B: Troubleshooting 1. The Power LED is not lit Check to see if the DC power cord is connected to the Switch properly, and make sure the power source is ON. 2. The Link/Act LED is not lit when a device is connected to the corresponding port Check to see if the cable connectors are firmly plugged into the Switch and the device, and verify the connected device is turned on and working well.
