- Page 1 RC-GS1024 24-port Gigabit Ethernet Switch REV1.0.0 7109504756...
-
Page 2: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Table Of Contents
CONTENTS Package Contents ....................1 Chapter 1 Product Introduction ............... 2 Product Overview ...................2 Features ......................2 IEEE 802.1p QoS ...................3 Chapter 2 Identifying External Components ..........4 Front Panel ....................4 Rear Panel .....................4 Chapter 3 Installation ..................5 Precautions ....................5 Installation ......................6 3.2.1 Desktop Installation ................6... -
Page 4: Package Contents
Package Contents The following contents should be found in your box: One RC-GS1024 switch One power cord This User Guide Mounting screws and two “L” planks Note: Make sure that the package contains the above items. If any of the listed items are... -
Page 5: Chapter 1 Product Introduction

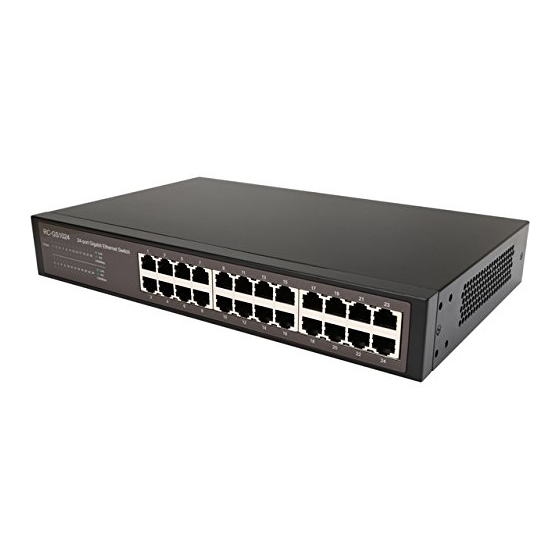

Chapter 1 Product Introduction This chapter describes the features of the model of RC-GS1024 24-port Gigabit Ethernet Switch. 1.1 Product Overview The RC-GS1024 24-port Gigabit Ethernet Switch provides 24 10/100/1000Mbps Auto-Negotiation RJ45 ports. Each port of RC-GS1024 supports auto MDI/MDI-X function, eliminating the need for crossover cables or Uplink ports. -
Page 6: Ieee 802.1P Qos
1.3 IEEE 802.1p QoS The RC-GS1024 switch supports 802.1p priority queuing Quality of Service, which is an implementation of the IEEE802.1p standard. With 802.1p QoS function, you can reserve bandwidth for important functions that require a large bandwidth or have a high priority, such as VoIP (Voice-over Internet Protocol), web browsing applications or video conferencing. -
Page 7: Identifying External Components
1000Mbps speed. If the LED is off, it is working on 10/100Mbps speed or no device is connected. 2.2 Rear Panel The rear panel of RC-GS1024 features a power socket and a Grounding Terminal (marked with Figure 2-2 Switch Rear Panel Sketch ... -
Page 8: Chapter 3 Installation
Chapter 3 Installation 3.1 Precautions To ensure a long-term and stable performance of the Switch, please pay attention to the following before the installation. 1) Safety Requirements • Before cleaning the Switch, cut off the power supply. Do not clean it by the waterish cloth, and never use any other liquid cleaning method. -
Page 9: Installation
3.2 Installation This Switch can be either installed on the standard 19-inch mountable rack or located on the desktop. Caution: Please unplug the power cord before installing or removing the Switch. 3.2.1 Desktop Installation To install the Switch on the desktop, please follow the steps: 1) Set the Switch on a flat surface strong enough to support the entire weight of the Switch with all fittings. -
Page 10: Rack Installation
3.2.2 Rack Installation To install the Switch in an EIA standard-sized, 19-inch rack, follow the instructions described below: 1) Secure the supplied rack-mounting brackets to each side of the Switch with supplied screws, as illustrated in the following figure. Figure 3-2 Attaching Brackets 2) After the brackets are attached to the Switch, use suitable screws (not provided) to secure the brackets to the rack, as illustrated in the following figure. -
Page 11: Connect To Ground
3.3 Connect to Ground Connecting the Switch to ground is to quickly release the lightning over-voltage and over-current of the Switch, which is also a necessary measure to protect the body from electric shock. In different environments, the Switch may be grounded differently. The following will instruct you to connect the Switch to the ground in two ways, connecting to the Grounding Bar or connecting to the Ground via the power cord. -
Page 12: Power On
3.4 Power on The RC-GS1024 24-port Gigabit Ethernet Switch is powered by an AC Power Supply. Connect the Switch and power outlet by power cord. Powering on the Switch, it will be automatically initialized and the LED indicators should respond as follows: All of the LED indicators will flash momentarily for 2.5 seconds, which... -
Page 13: Appendix A: Specifications
Appendix A: Specifications General IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.1p, Standards IEEE802.3x Topology Star Protocol CSMA/CD Ethernet: 10Mbps (Half Duplex) 20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex) Data Transfer Rate 200Mbps (Full Duplex) Gigabit Ethernet: 2000Mbps (Full Duplex) UTP category 3, 4, 5 cable (maximum 100m) 10BASE-T EIA/TIA-568 100Ω... -
Page 14: Appendix B: Troubleshooting
Appendix B: Troubleshooting The Power LED is not lit Make sure the AC power cord connected the Switch with power source properly. Make sure the power source is ON. The Link/Act LED is not lit when a device is connected to the corresponding port Make sure that the cable connectors are firmly plugged into the Switch and ...
