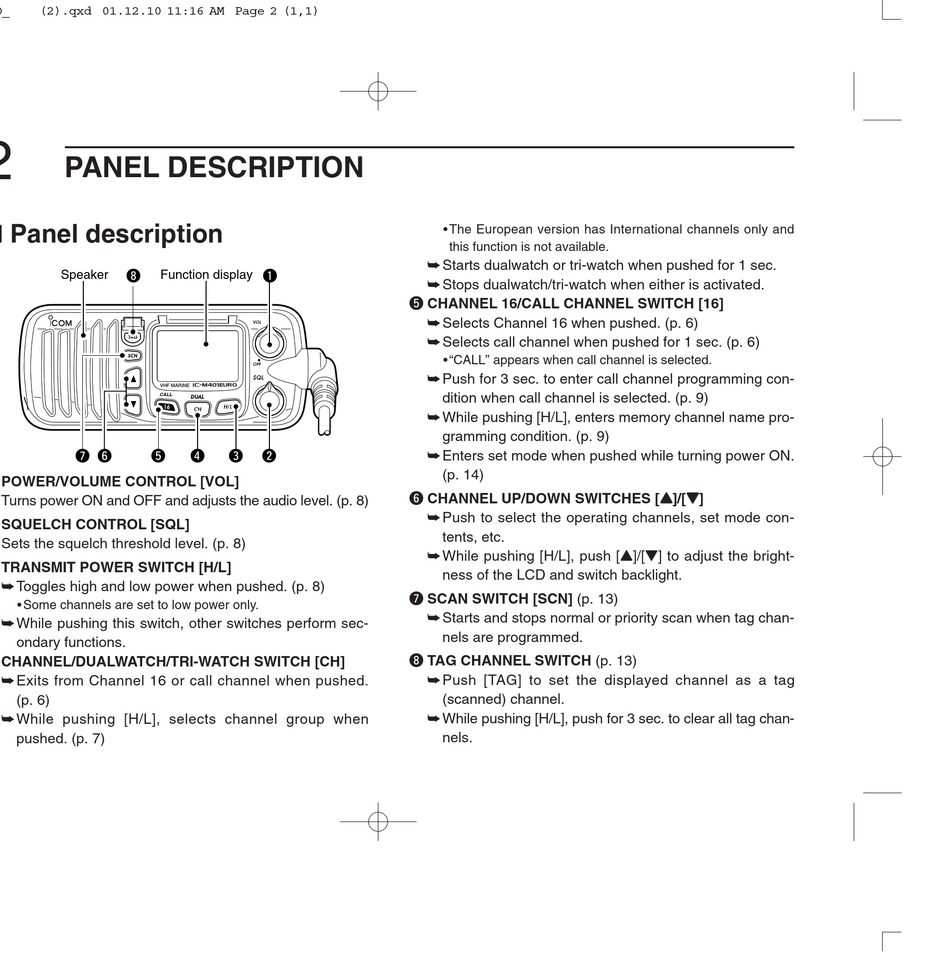

PANEL DESCRIPTION

I Panel description

Speaker
u y
q POWER/VOLUME CONTROL [VOL]
Turns power ON and OFF and adjusts the audio level. (p. 8)
w SQUELCH CONTROL [SQL]
Sets the squelch threshold level. (p. 8)
e TRANSMIT POWER SWITCH [H/L]
➥ Toggles high and low power when pushed. (p. 8)
• Some channels are set to low power only.
➥ While pushing this switch, other switches perform sec-
ondary functions.
r CHANNEL/DUALWATCH/TRI-WATCH SWITCH [CH]
➥ Exits from Channel 16 or call channel when pushed.
(p. 6)
➥ While pushing [H/L], selects channel group when
pushed. (p. 7)
2
i q
Function display
TAG
iC-m401euro
CALL
t r e w
• The European version has International channels only and
this function is not available.
➥ Starts dualwatch or tri-watch when pushed for 1 sec.
➥ Stops dualwatch/tri-watch when either is activated.
t CHANNEL 16/CALL CHANNEL SWITCH [16]
➥ Selects Channel 16 when pushed. (p. 6)
➥ Selects call channel when pushed for 1 sec. (p. 6)
• "CALL" appears when call channel is selected.
➥ Push for 3 sec. to enter call channel programming con-
dition when call channel is selected. (p. 9)
➥ While pushing [H/L], enters memory channel name pro-
gramming condition. (p. 9)
➥ Enters set mode when pushed while turning power ON.
(p. 14)
y CHANNEL UP/DOWN SWITCHES [Y Y ]/[Z Z ]
➥ Push to select the operating channels, set mode con-
tents, etc.
➥ While pushing [H/L], push [Y]/[Z] to adjust the bright-
ness of the LCD and switch backlight.
u SCAN SWITCH [SCN] (p. 13)
➥ Starts and stops normal or priority scan when tag chan-
nels are programmed.
i TAG CHANNEL SWITCH (p. 13)
➥ Push [TAG] to set the displayed channel as a tag
(scanned) channel.
➥ While pushing [H/L], push for 3 sec. to clear all tag chan-
nels.
