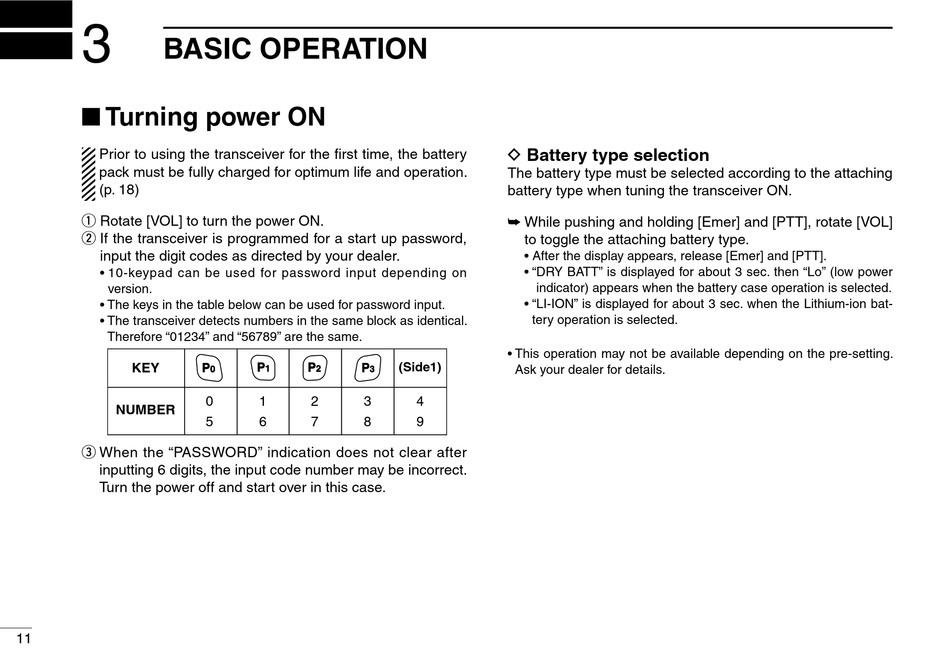

BASIC OPERATION

■ Turning power ON

Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
(p. 18)
q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• 10-keypad can be used for password input depending on
version.
• The keys in the table below can be used for password input.
• The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
KEY
NUMBER
e When the "PASSWORD" indication does not clear after
inputting 6 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
11
P P
P P
1 2
0 3
0 1 2 3
5 6 7 8
D Battery type selection
The battery type must be selected according to the attaching
battery type when tuning the transceiver ON.
➥ While pushing and holding [Emer] and [PTT], rotate [VOL]
to toggle the attaching battery type.
• After the display appears, release [Emer] and [PTT].
• " DRY BATT" is displayed for about 3 sec. then "Lo" (low power
indicator) appears when the battery case operation is selected.
• "LI-ION" is displayed for about 3 sec. when the Lithium-ion bat-
tery operation is selected.
• This operation may not be available depending on the pre-setting.
(Side1)
Ask your dealer for details.
4
9
