INSTALLATION AND CONNECTIONS

I System interconnections

1 or 2 Icom 100 W HF transceivers can be connected
as exciters to the IC-PW1/EURO. Non-Icom trans-
ceivers can be used, however, band selection will not
be synchronized for each exciter.
CAUTION!:
When connecting the supplied ACC
cable to an Icom transceiver, be sure to connect the
cable to the 7-pin [ACC(2)] jack on the exciter
(transceiver) side.
If the ACC cable is connected to the 8-pin [ACC(1)]
jack, the protector circuit in the IC-PW1/EURO will
not able to read the ALC signal. If operation contin-
ues using this setup, damage (including the possibil-
ity of explosion) to the connected transceiver and/or
IC-PW1/EURO will occur.

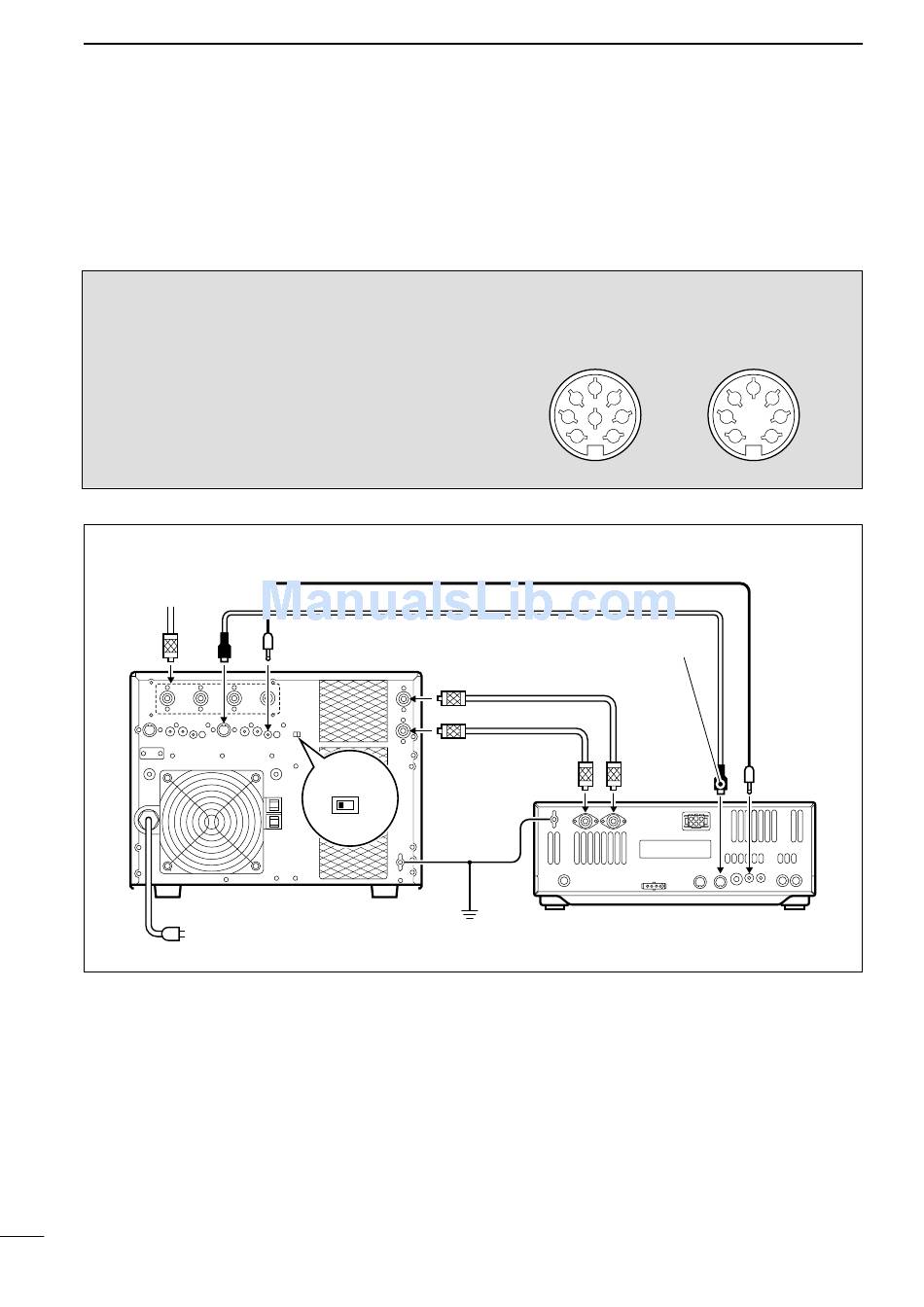

• Using 1 Icom exciter (transceiver)
To an
antenna
ACC-1
ANT
AC outlet
(IC-PW1
IC-PW1EURO : 230 V)
7
REMOTE
EXCITER
1 1&2
IC-PW1/EURO
: 100–120/220–240 V
See the following diagrams for making connections
between the IC-PW1/EURO and an exciter (transceiv-
er). See p. 5 for AC power cable connection.
Icom standard 8 and 7-pin accessory jacks
[ACC(1)]
2
4
1
8
6
Remote control cable (supplied)
ACC cable (supplied)
Be sure to connect the cable
to the 7-pin ACC(2) jack.
INPUT1 Coaxial cable (supplied)
INPUT2
Coaxial cable
(optional)
ANT2
GND
GND
Ground
(transceiver side)
[ACC(2)]
2
5 4 5
3 1 3
6
7 7
Connect
[INPUT2]
if necessary.
ANT1 ACC(2) REMOTE
IC-756
