INSTALLATION AND CONNECTIONS

System interconnections

1 or 2 Icom 100 W HF transceivers can be connected
as exciters to the IC-PW1. Non-Icom transceivers can
be used, however, band selection will not be synchro-
nized for each exciter.
• Using 1 Icom exciter (transceiver)
To an
antenna
ACC-1
ANT
AC outlet
(Non-Europe versions : 100–120/220–240 V
Europe version
• Using a 13-pin ACC socket (IC-706 series)
To an
antenna
ANT
7
REMOTE
EXCITER
1 1&2
IC-PW1
: 230 V)
ACC-1
REMOTE
EXCITER
1 1&2
IC-PW1
AC outlet
(Non-Europe versions : 100–120/220–240 V
Europe version : 230 V)

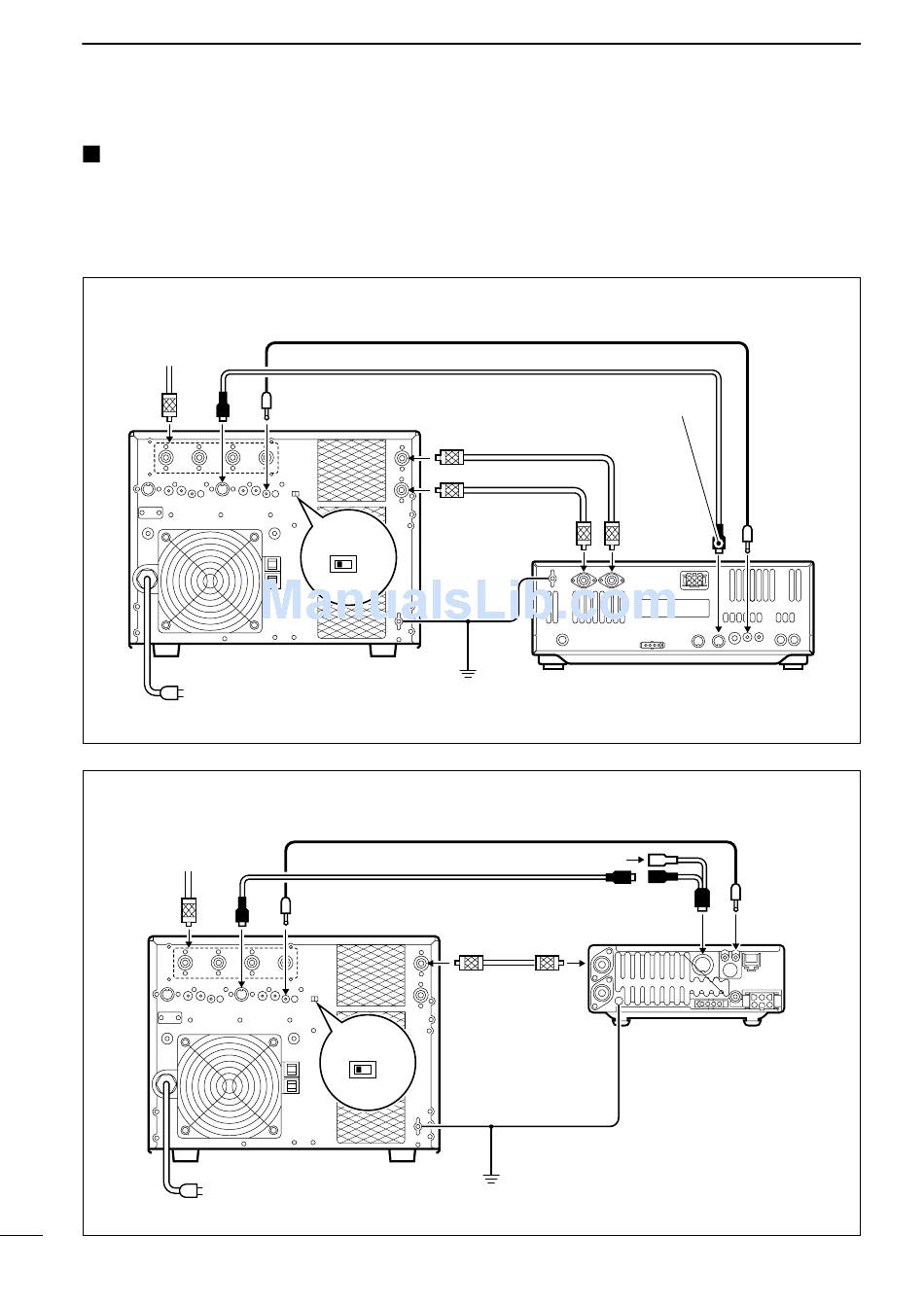

See the following diagrams for making connections be-
tween the IC-PW1 and an exciter (transceiver). See p.
5 for AC power cable connection.
Remote control cable (supplied)
ACC cable (supplied)
Be sure to connect the cable
to the 7-pin ACC(2) jack.
INPUT1
Coaxial cable (supplied)
INPUT2
Coaxial cable
(optional)
ANT2
GND
GND
Ground
Remote control cable (supplied)
OPC-599 (optional)
ACC cable (supplied)
INPUT1 ANT1
Coaxial cable
(supplied)
GND
Ground
Connect
[INPUT2]
if necessary.
ANT1 ACC(2) REMOTE
IC-756
ACC (13 pins) REMOTE
IC-706 series
GND
