SUSPENSION OR DROP CEILING OPTION

The UV-1500C must be wired in accordance with the National Electrical Code and any applicable local
codes. The UV-1500C must be hard-wired using metal-shielded cable, BX cable or similar wiring methods.

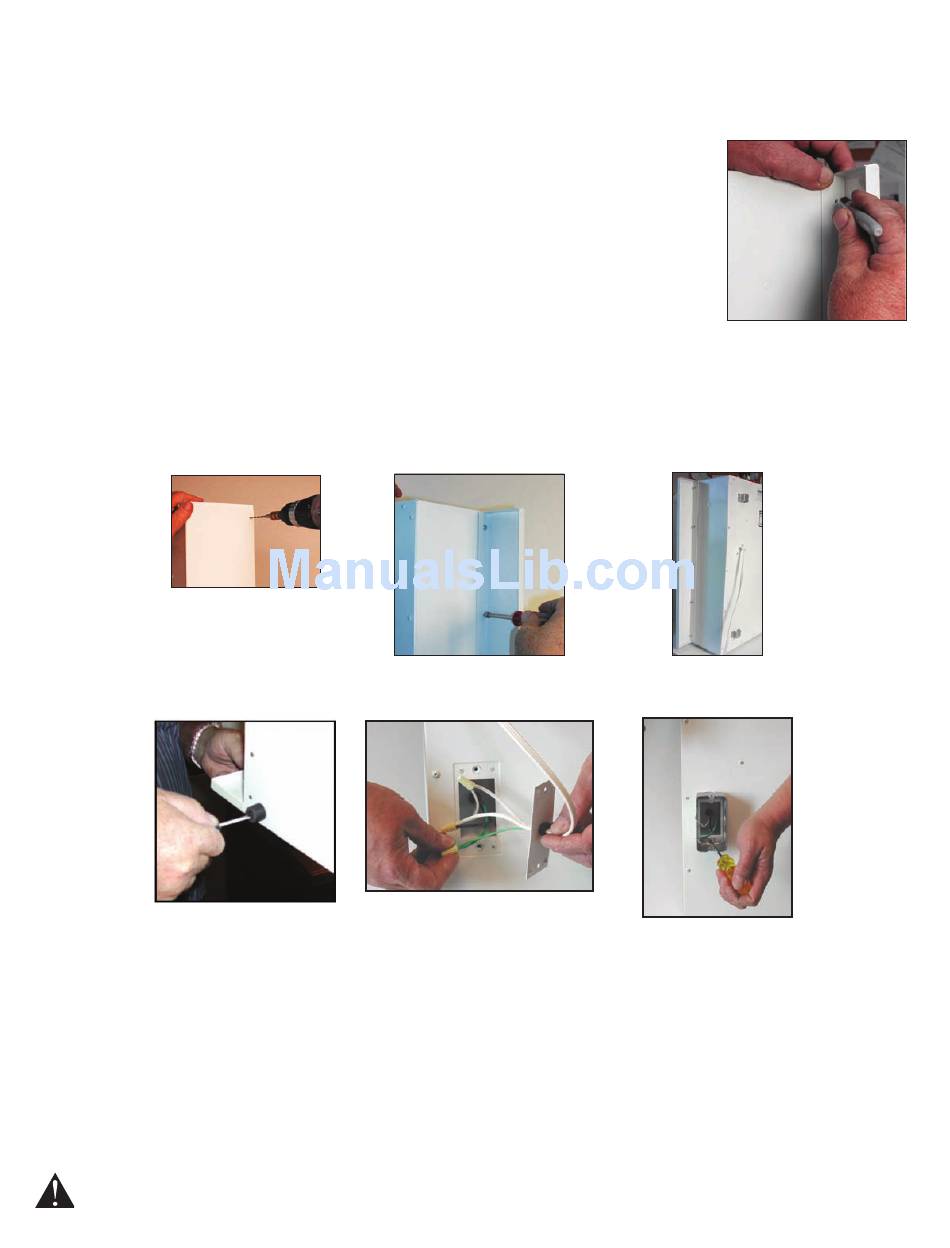

1. Install the four mounting brackets onto the back of the housing securing them
with the eight mounting screws. (See Figures 2 & 3)
2. Mount the supplied drop ceiling body extension covers onto the sides of the UV-
1500C. These covers allow the UV-1500C to fit into a standard 2 foot by 2 foot
ceiling tile space (23-
the UV-1500C body and use the holes in the cover as a template to mark the
mounting hole locations on the UV-1500C body. (See Figure 6)
3. Drill a ⁄ " hole into the body of the UV-1500C at the marked locations. (See
1
8
Figure 7)
4. Secure the extension covers the UV-1500C body with the supplied metal screws. (See Figure 8 & 9)
5. Remove the two rubber feet on the side of the extension cover from bottom of unit to give necessary
clearance for ceiling mount. (See Figure 10)
6. Before hard wiring the UV-1500C, an electrical conduit box must be installed. Remove the wire cover in
the back of the unit. Uninstall the wire nuts and discard the power cord. (See Figure 11)
7. Mount the supplied electrical conduit box over the power wires and secure with the supplied mounting
screws. (See Figure 12)
8. Locate and remove the ceiling tile where the UV-1500C will be mounted.
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire
⁄ "). Align the edges of the extension cover to the front of
3
4
Figure 7
Figure 10
Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
®
Figure 8
Figure 11
page 4
