FOR AREA OR ROOM OPERATION

1. Place the UV-1500C in the desired area; plug the power cord into a
standard 120-volt wall receptacle.
2. Turn the speed control knob clockwise to turn on the unit and to adjust the
motor/fan speed to the desired airflow. (See Figure 1)
3. After the fan has started, the LED light will show a continuous "GREEN"
color indicating proper unit operation.
WALL MOUNTING OPTION (The UV-1500C is supplied with four mounting brackets to allow the unit to be
mounted onto a wall).
1. To install the mounting brackets, remove the eight mounting screws from the back of the UV-1500C.
(See Figure 2)
2. Install the four mounting brackets onto the back of the housing securing them with the mounting screws
you just removed. (See Figure 3)
3. Determine the desired location on the wall (a 120-volt wall receptacle should be within 5 feet of the unit)
and mark the mounting screw locations based on the dimensions given in figure 4A.
4. Install four drywall anchors or other appropriate fasteners rated for at least a 15 lb. load capacity.
(See Figure 4B)
5. Mount the unit to the wall. (See Figure 5)
6. Plug the power cord into a standard 120-volt wall receptacle. Turn the speed control knob clockwise to
turn on the unit and adjust the motor/fan speed control to the desired airflow.
7. After the fan has started the LED light will show a continuous "GREEN" color indicating proper
unit operation.
WARNING: Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire

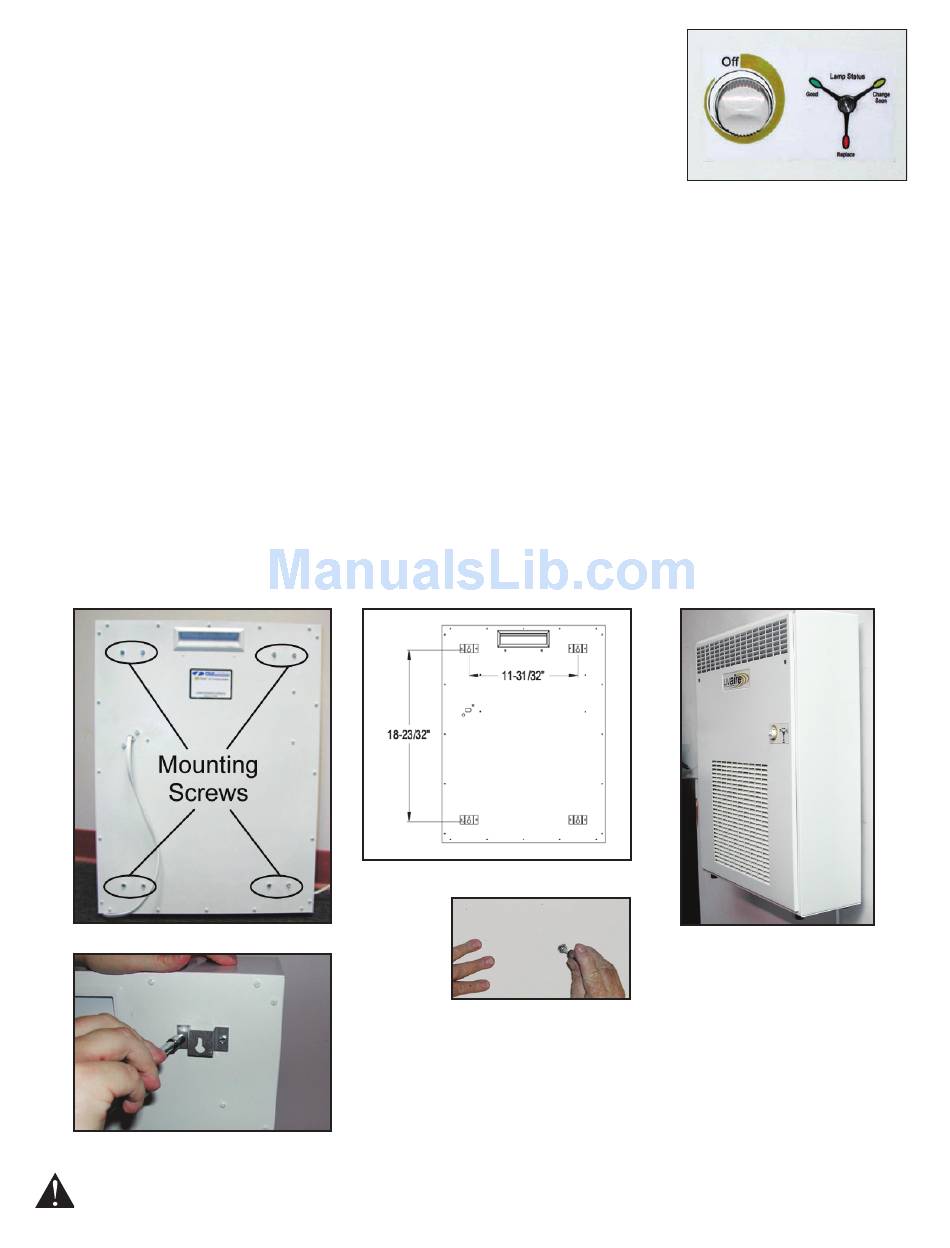

Figure 2
Figure 3
Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
®
page 3
Figure 4A
Figure 4B
Figure 1
Figure 5
