3 3 3 3 - - - - 10 10 10 10 Vacuum hose for Waste Vacuum hose for Waste gate Installation
Vacuum hose for Waste Vacuum hose for Waste

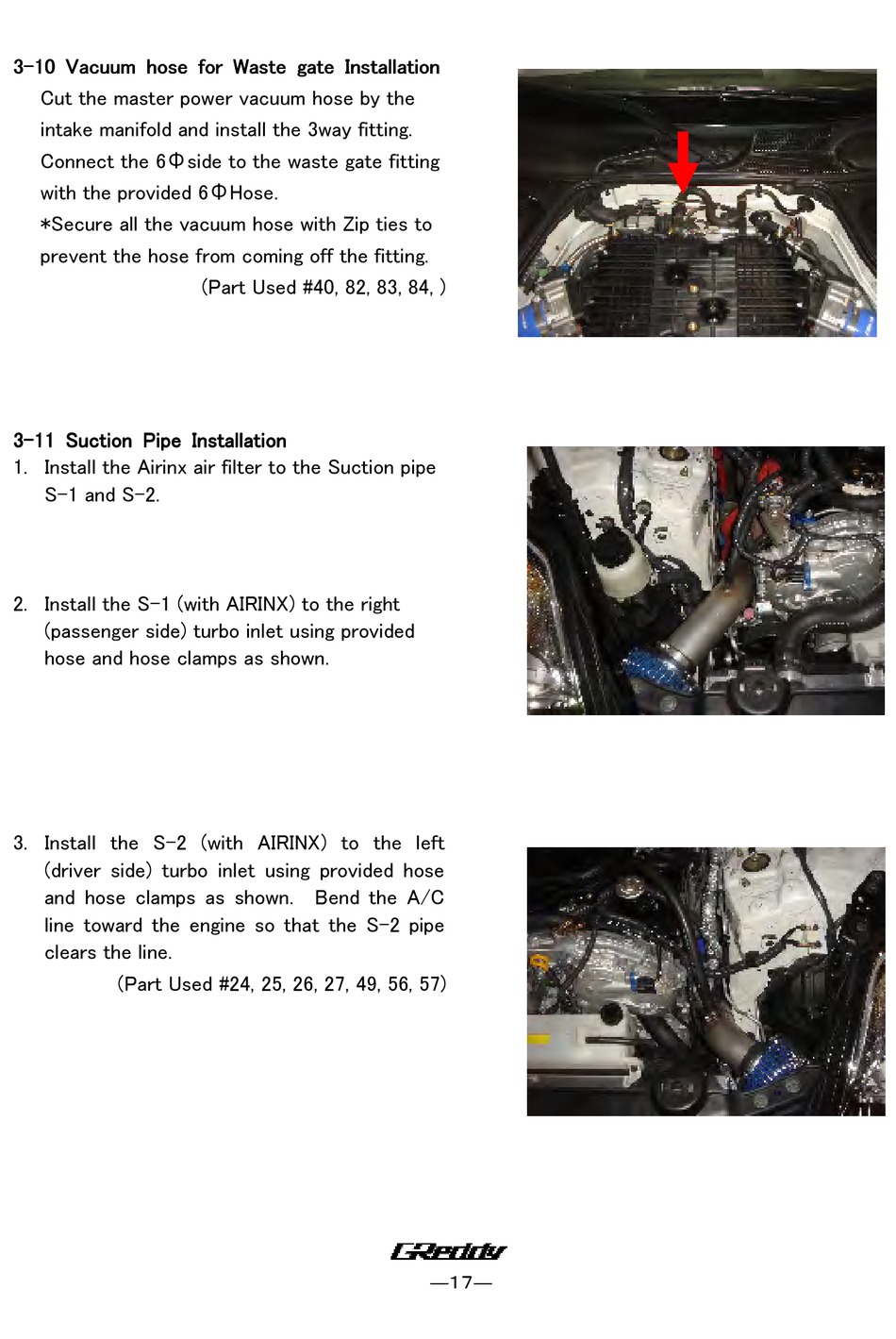

Cut the master power vacuum hose by the
intake manifold and install the 3way fitting.
Connect the 6Φside to the waste gate fitting
with the provided 6ΦHose.
*Secure all the vacuum hose with Zip ties to
prevent the hose from coming off the fitting.
3 3 3 3 - - - - 11 11 11 11 Suction Pipe Installation Suction Pipe Installation
Suction Pipe Installation Suction Pipe Installation
1. Install the Airinx air filter to the Suction pipe
S-1 and S-2.
2. Install the S-1 (with AIRINX) to the right
(passenger side) turbo inlet using provided
hose and hose clamps as shown.
3. Install the S-2 (with AIRINX) to the left
(driver side) turbo inlet using provided hose
and hose clamps as shown. Bend the A/C
line toward the engine so that the S-2 pipe
clears the line.
(Part Used #24, 25, 26, 27, 49, 56, 57)
gate Installation
gate Installation gate Installation
(Part Used #40, 82, 83, 84, )
