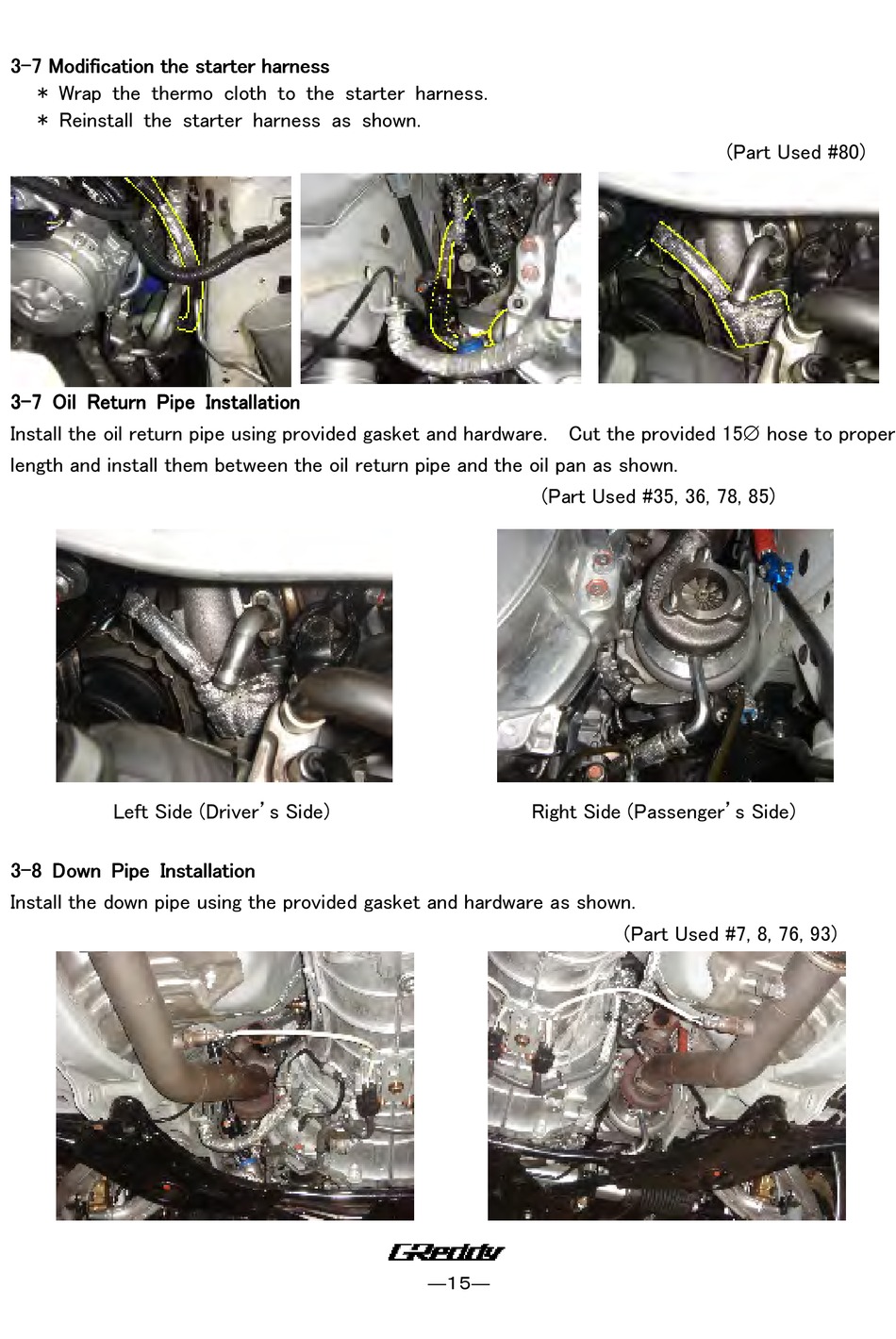

GReddy Tuner Edition Turbo Kit Installation Manual page 15

3 3 3 3 - - - - 7 7 7 7 Modification the Modification the starter
Modification the Modification the
* Wrap the thermo cloth to the starter harness.
* Reinstall the starter harness as shown.
3 3 3 3 - - - - 7 7 7 7 Oil Return Pipe Installation Oil Return Pipe Installation
Oil Return Pipe Installation Oil Return Pipe Installation
Install the oil return pipe using provided gasket and hardware. Cut the provided 15∅ hose to proper
length and install them between the oil return pipe and the oil pan as shown.
Left Side (Driver's Side)
3 3 3 3 - - - - 8 8 8 8 Down Pipe Installation Down Pipe Installation Down Pipe Installation Down Pipe Installation
Install the down pipe using the provided gasket and hardware as shown.
starter harness harness
starter starter harness harness
(Part Used #35, 36, 78, 85)
Right Side (Passenger's Side)
―１５―
(Part Used #80)
(Part Used #7, 8, 76, 93)
