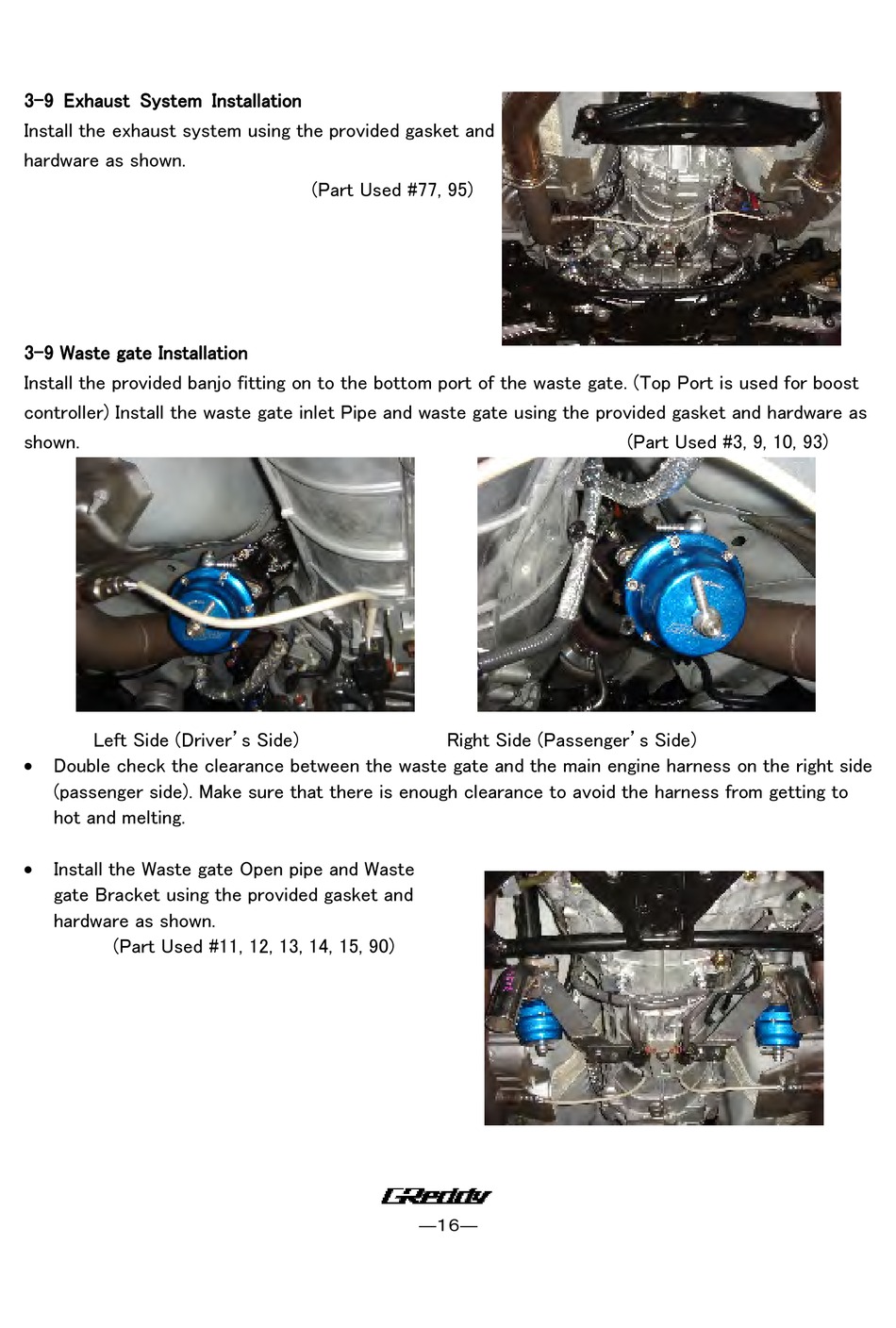

GReddy Tuner Edition Turbo Kit Installation Manual page 16

3 3 3 3 - - - - 9 9 9 9 Exha Exha Exhaust System Installation Exha ust System Installation ust System Installation ust System Installation
Install the exhaust system using the provided gasket and
hardware as shown.
3 3 3 3 - - - - 9 9 9 9 Waste Waste gate Installation gate Installation
Waste Waste gate Installation gate Installation
Install the provided banjo fitting on to the bottom port of the waste gate. (Top Port is used for boost
controller) Install the waste gate inlet Pipe and waste gate using the provided gasket and hardware as
shown.
Left Side (Driver's Side)
• Double check the clearance between the waste gate and the main engine harness on the right side
(passenger side). Make sure that there is enough clearance to avoid the harness from getting to
hot and melting.
• Install the Waste gate Open pipe and Waste
gate Bracket using the provided gasket and
hardware as shown.
(Part Used #11, 12, 13, 14, 15, 90)
(Part Used #77, 95)
Right Side (Passenger's Side)
―１６―
(Part Used #3, 9, 10, 93)
