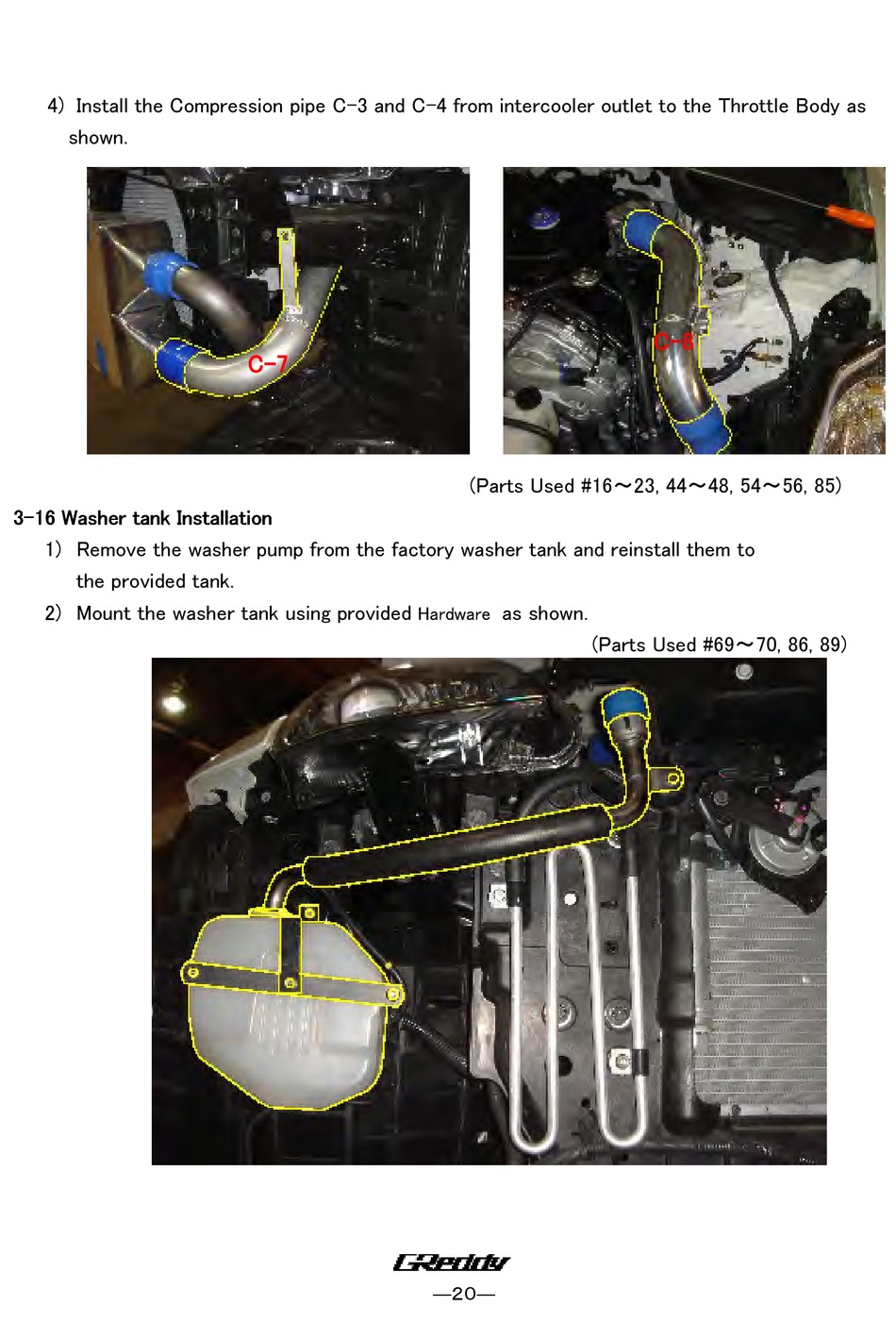

GReddy Tuner Edition Turbo Kit Installation Manual page 20

2007nissan 350z (vq35hr) twin td06-20g 8cm2

Advertisement

4) Install the Compression pipe C-3 and C-4 from intercooler outlet to the Throttle Body as
shown.
3 3 3 3 - - - - 16 16 16 16 Washer tank Installation
Washer tank Installation
Washer tank Installation
Washer tank Installation
1) Remove the washer pump from the factory washer tank and reinstall them to
the provided tank.
2) Mount the washer tank using provided
C C C C - - - - 7 7 7 7
Hardware
(Parts Used #16~23, 44~48, 54~56, 85)
as shown.
(Parts Used #69~70, 86, 89)
―20―
C C C C - - - - 8 8 8 8
