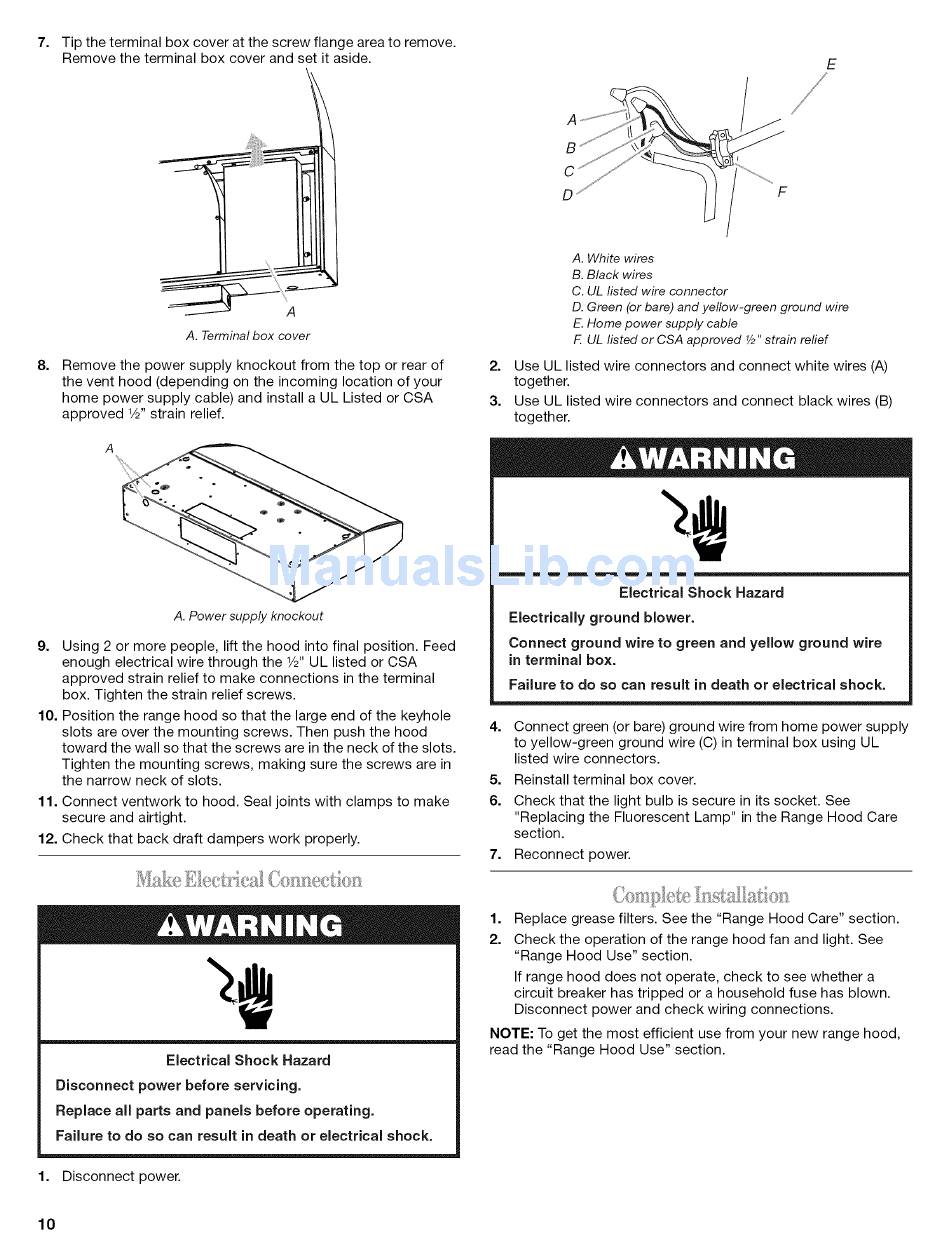

7. Tip the terminal box cover at the screw flange area to remove.
Remove the terminal box cover and set it aside.
E
8.
2
A. Terminalbox cover
Remove the power supply knockout from the top or rear of
the vent hood (depending on the incoming location of your
home power supply cable) and install a UL Listed or CSA
approved 1/2"strain relief.
A. Power supply knockout
9. Using 2 or more people, lift the hood into final position. Feed
enough electrical wire through the 1/2"UL listed or CSA
approved strain relief to make connections
in the terminal
box. Tighten the strain relief screws.
10. Position the range hood so that the large end of the keyhole
slots are over the mounting screws. Then push the hood
toward the wall so that the screws are in the neck of the slots.
Tighten the mounting screws, making sure the screws are in
the narrow neck of slots.
11. Connect ventwork to hood. Seal joints with clamps to make
secure and airtight.
12. Check that back draft dampers work properly.
i% S,e
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical
shock.
A
B
D
A. White wires
B. Black wires
C. UL listed wire connector
D. Green (or bare) and yellow-green
ground wire
E. Home power supply cable
F. UL listed or CSA approved Y2" strain refief
2.
Use UL listed wire connectors
and connect
white
wires
(A)
together.
3.
Use UL listed wire connectors
and connect
black wires
(B)
together.
Electrical Shock Hazard
Electrically ground blower.
Connect ground
wire to green and yellow ground wire
in terminal
box.
Failure to do so can result in death or electrical
shock.
4. Connect green (or bare) ground wire from home power supply
to yellow-green
ground wire (C) in terminal box using UL
listed wire connectors.
5. Reinstall terminal box cover.
6. Check that the light bulb is secure in its socket. See
"Replacing the Fluorescent Lamp" in the Range Hood Care
section.
7. Reconnect power.
.<
{ {rap le_Iie"
_ _; "' . ...
1. Replace grease filters. See the "Range Hood Care" section.
2. Check the operation of the range hood fan and light. See
"Range Hood Use" section.
If range hood does not operate, check to see whether a
circuit breaker has tripped or a household fuse has blown.
Disconnect
power and check wiring connections.
NOTE: To get the most efficient use from your new range hood,
read the "Range Hood Use" section.
1. Disconnect
power.
10
