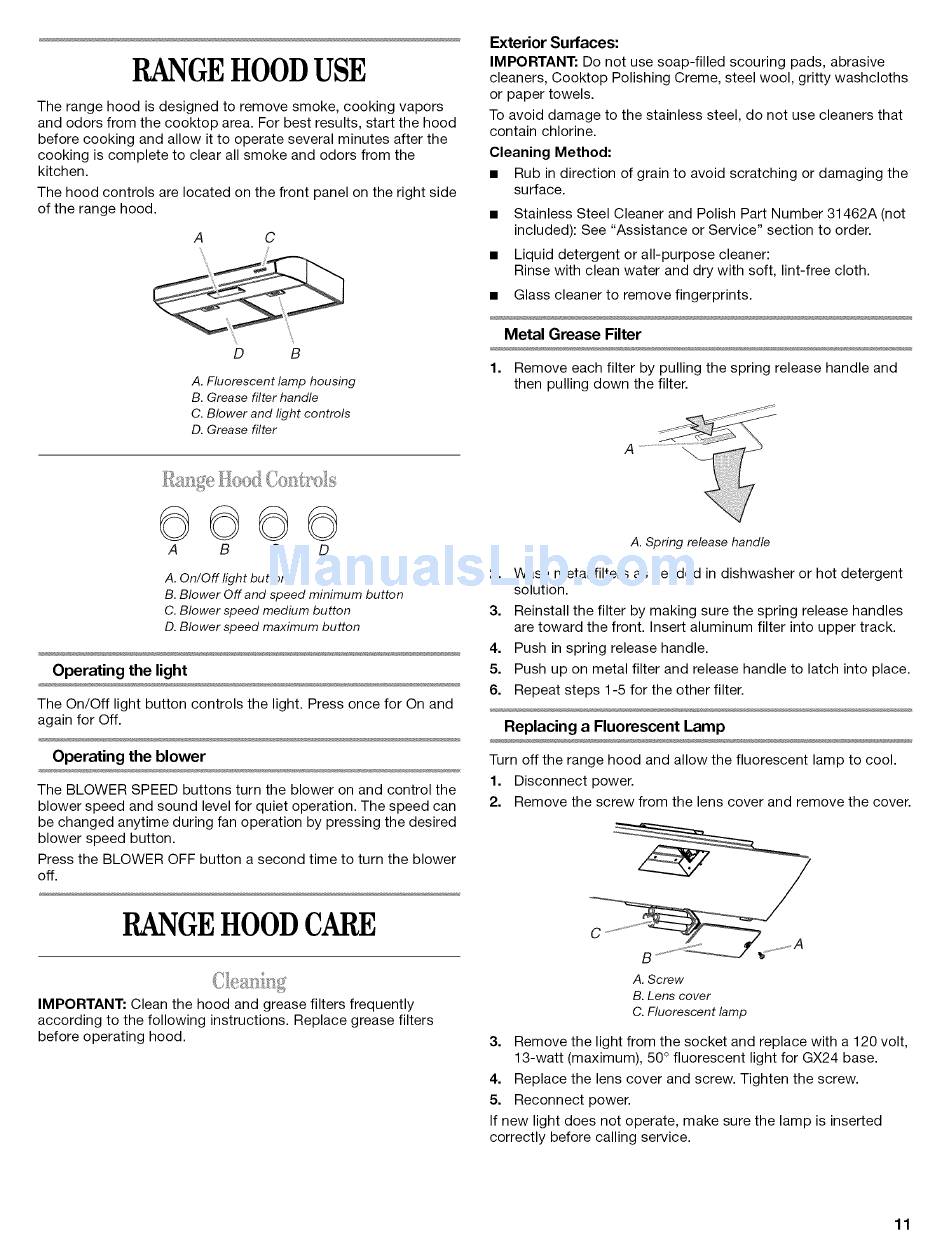

RANGEHOOD USE
The range hood is designed to remove smoke, cooking vapors
and odors from the cooktop area. For best results, start the hood
before cooking and allow it to operate several minutes after the
cooking is complete to clear all smoke and odors from the
kitchen.
The hood controls are located on the front panel on the right side
of the range hood.
A
C
D
B
A. Fluorescent
lamp housing
B. Grease filter handle
C. Blower and light controls
D. Grease filter
©©00
A
B
C
D
A. On/Off light button
B. Blower Off and speed minimum button
C. Blower speed medium button
D. Blower speed maximum button
Operating
the light
The On/Off light button controls the light. Press once for On and
again for Off.
Operating
the blower
The BLOWER SPEED buttons turn the blower on and control the
blower speed and sound level for quiet operation. The speed can
be changed anytime during fan operation by pressing the desired
blower speed button.
Press the BLOWER OFF button a second time to turn the blower
off.
Exterior Surfaces:
IMPORTANT:
Do not use soap-filled scouring pads, abrasive
cleaners, Cooktop Polishing Creme, steel wool, gritty washcloths
or paper towels.
To avoid damage to the stainless steel, do not use cleaners that
contain chlorine.
Cleaning
Method:
Rub in direction of grain to avoid scratching
or damaging the
surface.
Stainless Steel Cleaner and Polish Part Number 31462A (not
included): See "Assistance
or Service" section to order.
Liquid detergent or all-purpose
cleaner:
Rinse with clean water and dry with soft, lint-free cloth.
Glass cleaner to remove fingerprints.
Metal Grease Filter
1=
Remove each filter by pulling the spring release handle and
then pulling down the filter.
A
...................
A. Spring releasehandle
2. Wash metal filters as needed in dishwasher or hot detergent
solution.
3. Reinstall the filter by making sure the spring release handles
are toward the front. Insert aluminum filter into upper track.
4. Push in spring release handle.
5. Push up on metal filter and release handle to latch into place.
6. Repeat steps 1-5 for the other filter.
Replacing
a Fluorescent
Lamp
Turn off the range hood and allow the fluorescent
lamp to cool.
1. Disconnect
power.
2. Remove the screw from the lens cover and remove the cover.
RANGEHOODCARE
IMPORTANT: Clean the hood and grease filters frequently
according to the following instructions. Replace grease filters
before operating hood.
A. Screw
B. Lens cover
C. Fluorescent
lamp
3. Remove the light from the socket and replace with a 120 volt,
13-watt (maximum), 50 ° fluorescent
light for GX24 base.
4. Replace the lens cover and screw. Tighten the screw.
5. Reconnect power.
If new light does not operate, make sure the lamp is inserted
correctly before calling service.
