Information Tab: Iscsi Initiator; Configuration Tab: System Management; Managing The Network Adapter - Dell Broadcom NetXtreme Family of Adapters User Manual

Using Broadcom Advanced Control Suite 4: Broadcom NetXtreme II Network Adapter User Guide
Displays the hardware architecture platform (for example, 32-bit or 64-bit)

Information Tab: iSCSI Initiator

The iSCSI Initiator section of the Information tab is available if iSCSI is enabled on the host.
Name
Displays the iSCSI initiator name in IQN format.
Portal List
Displays all iSCSI portal IP addresses configured on the selected host.
NOTE: Some information may not be available for all Broadcom network adapters.
To configure the host
Select the host in the Explorer View pane, and then select the Configuration tab to configure host-level parameters.

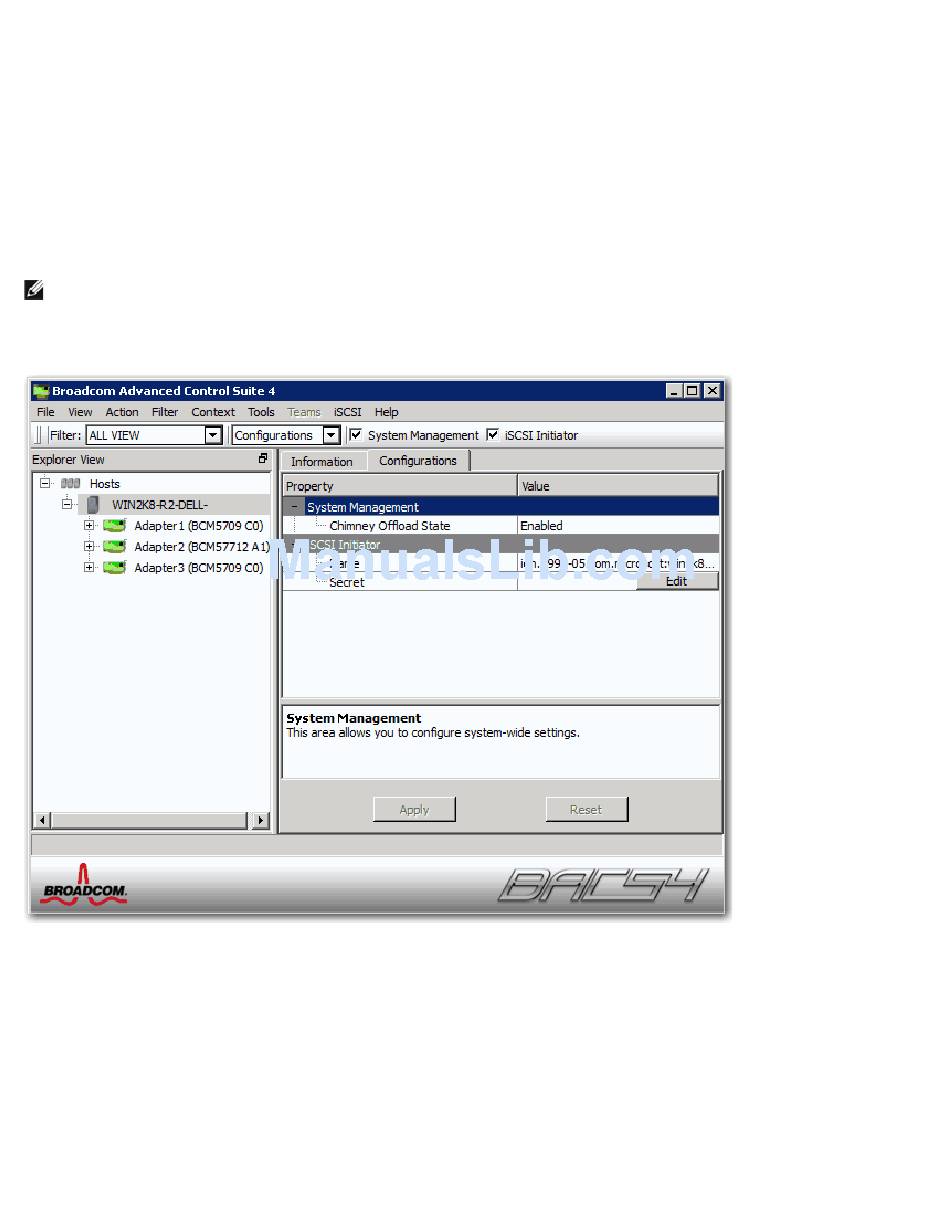

Configuration Tab: System Management

Chimney Offload State
Enable or disable chimney offload at the host level, rather than at the device level, and then click Apply.
Configuration Tab: iSCSI Initiator
Name
The current IQN name is displayed. Click the IQN name to modify the host's iSCSI initiator name, and then click Apply.

Managing the Network Adapter

file:///T|/htdocs/NETWORK/BroadCom/71921/NetXtremeII/en/bacs.htm[9/26/2012 3:29:48 PM]
