Installation

Mounting the Switcher

Tabletop use

The System 7SC comes with rack mounting brackets and rubber feet. For tabletop
use, attach a self-adhesive rubber foot to each corner of the bottom of the unit.

Rack mounting

For rack mounting, do not install the rubber feet. Attach the provided rack
mounting brackets to the switcher with machine screws, as shown below, then
fasten the switcher to the rack using the supplied machine screws.

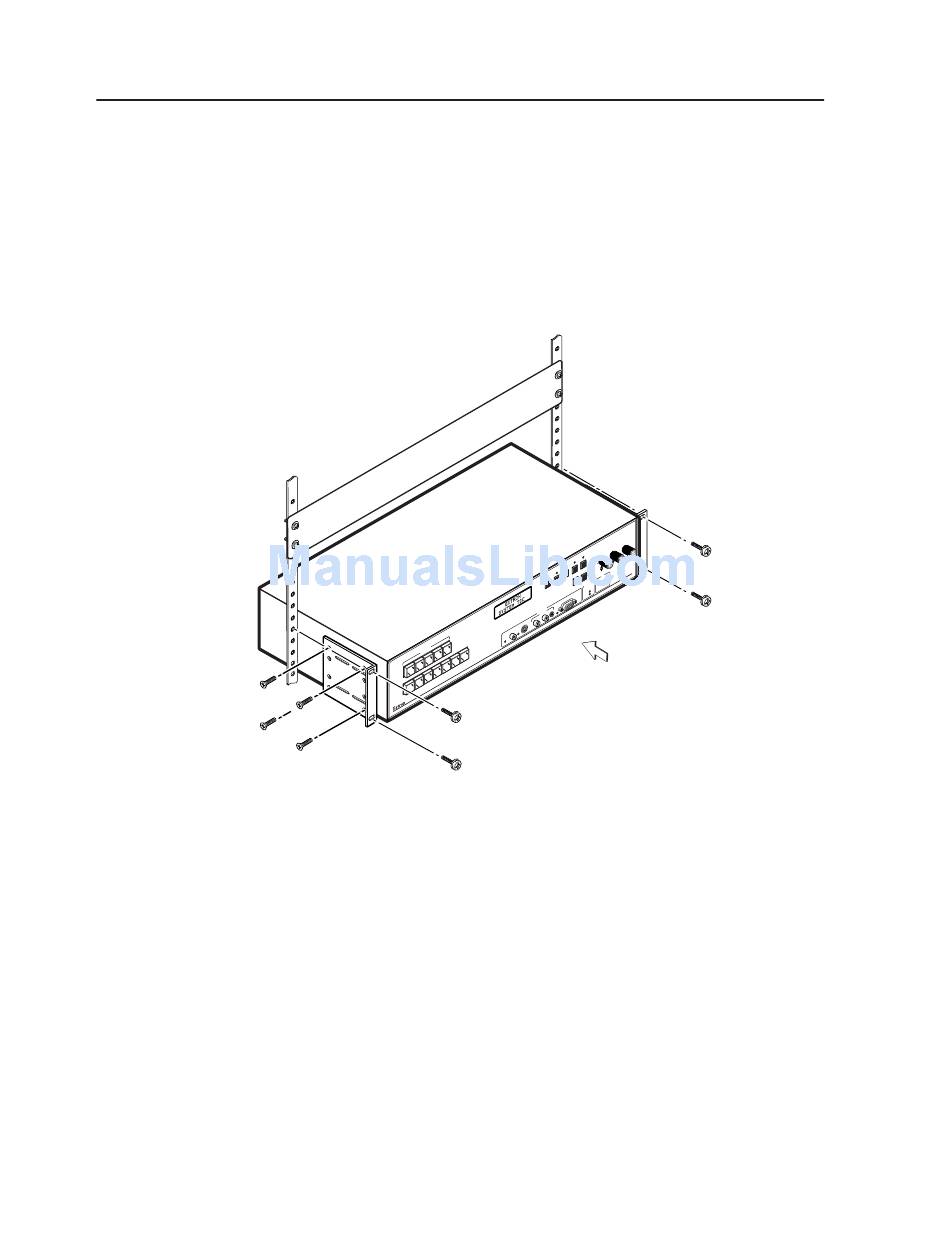

Rack mounting the System 7SC

Cabling and Panel Views

The diagram on the next page shows an example of a typical System 7SC
application and cable connections.
2-2 System 7SC • Installation
