CTL120-3 IR Remote Control

The CTL120-3 IR remote control sends infrared commands to the built-in infrared
receiver in the SWP123 switcher to control various functions. The illustration
below shows the location and function of each button on the remote control unit
that can be used to control the SWP123 Presentation Switcher.
Initially, press and release the SWP SWITCHER button on the remote control
unit to change it to SWP switcher mode.
Press and release this button
First press and release1-4
Next press and release 1-4 to
Press and release (+) to increase, or (-) to
Press and release to toggle

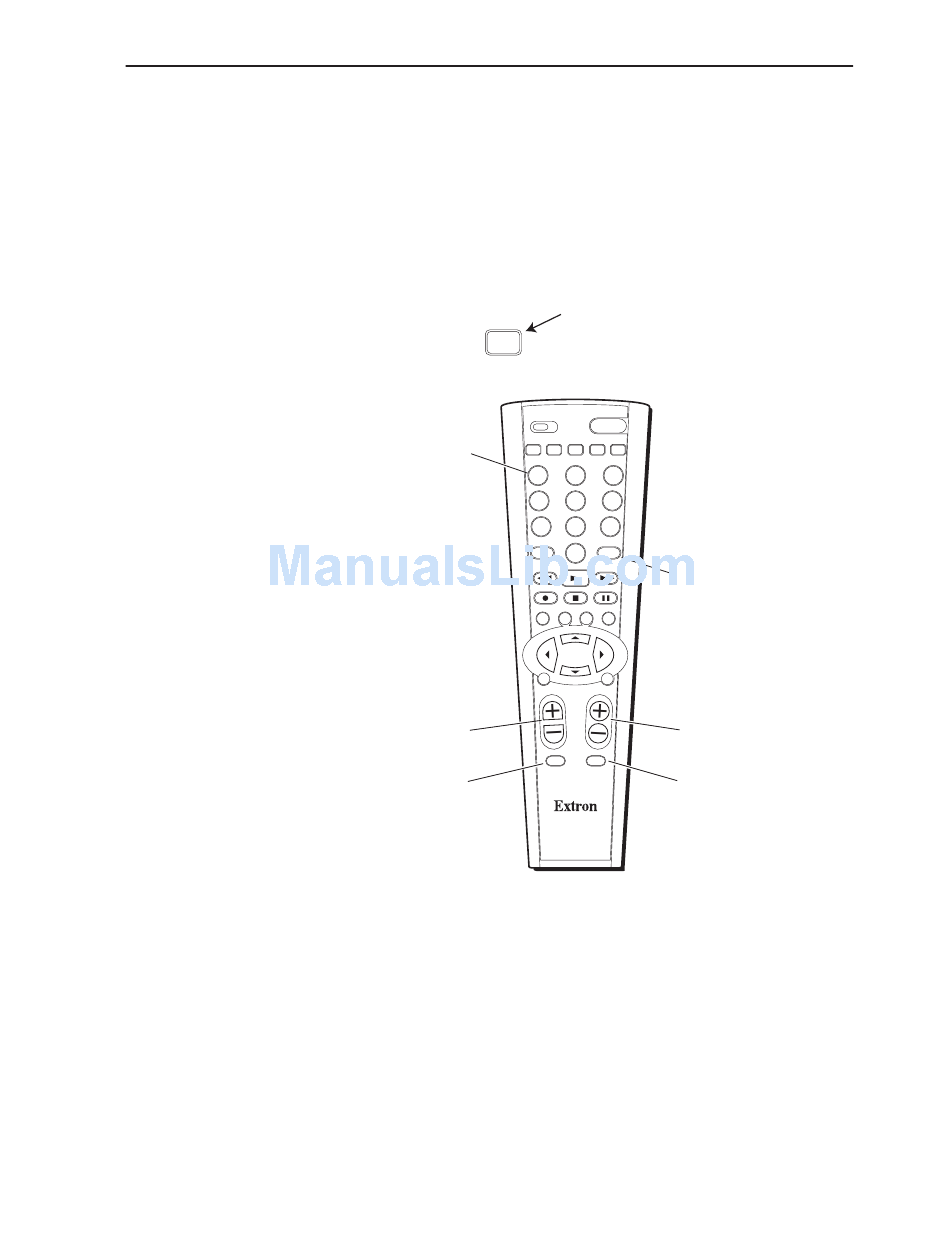

Figure 5-3 — CTL120-3 infrared remote control

Switching input devices

To switch to a new input group and input device using the CTL120-3 remote
control:
1. Press and release the SWP SWITCHER button.
2. Press and release the numeric button (1, 2, 3, or 4) on the remote that
corresponds to the desired input group (VGA, S-video, Video, or Audio,
respectively).
3. Press and release the numeric button (1, 2, 3, or 4) on the remote control unit
that corresponds to the desired input device within the selected group that
you want to connect to the output.
SWP
SWP SWITCHER Button
SWITCHER
first to set the CTL120-3
to control the SWP123
Presentation Switcher.
VIDEO
SCALER
Numeric Buttons
(1, 2, 3, 4, and 0 only)
VGA
To select an input device:
AUDIO
to select the A/V group:
1 = VGA
2 = S-Video
3 = Video
4 = Audio
select the input device:
1 = Input 1
FREEZE
2 = Input 2
3 = Input 3
4 = Input 4
0 = Blank
MIC Button
decrease MIC volume.
TALK OVER Button
Mic Talk Over on or off.
SWP123 Presentation Switcher • Remote Control 5-11
Important!
Press this button first!
PROJECTOR
S
SWP
SWITCHER
S-VIDEO VIDEO
1 2 3
4 5 6
7 8 9
BLANK
ENTER
PIP 0 ENT
Enter Button
Press and release to execute
switch after selecting
A/V group and input.
MENU ENTER
MIC VOL
Volume Buttons
Press and release (+) to increase, or (-) to
decrease Master A/V volume.
TALK OVER MUTE
Mute Button
Mutes Master A/V audio.
